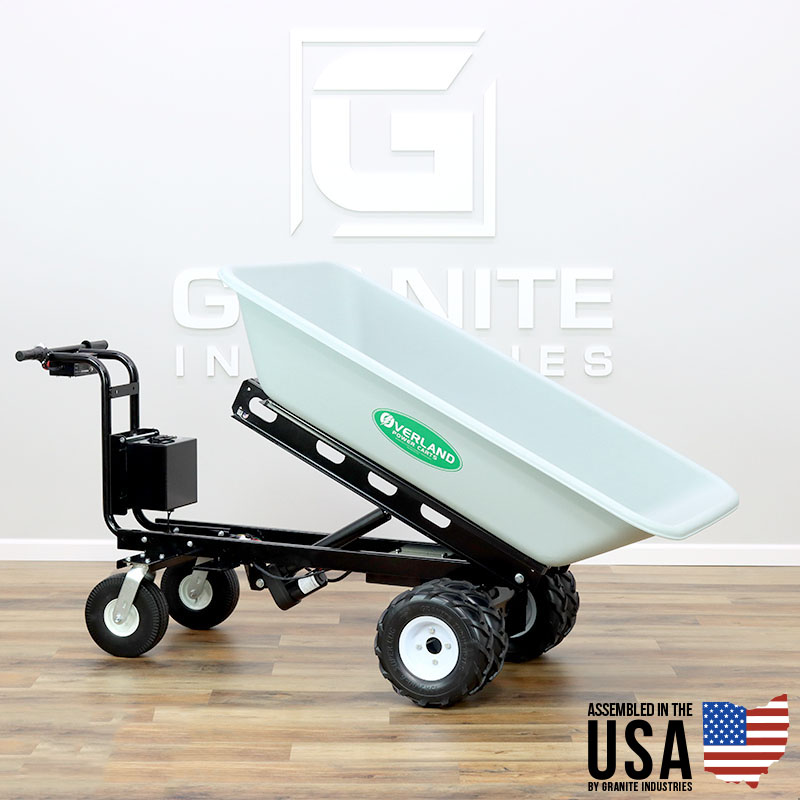

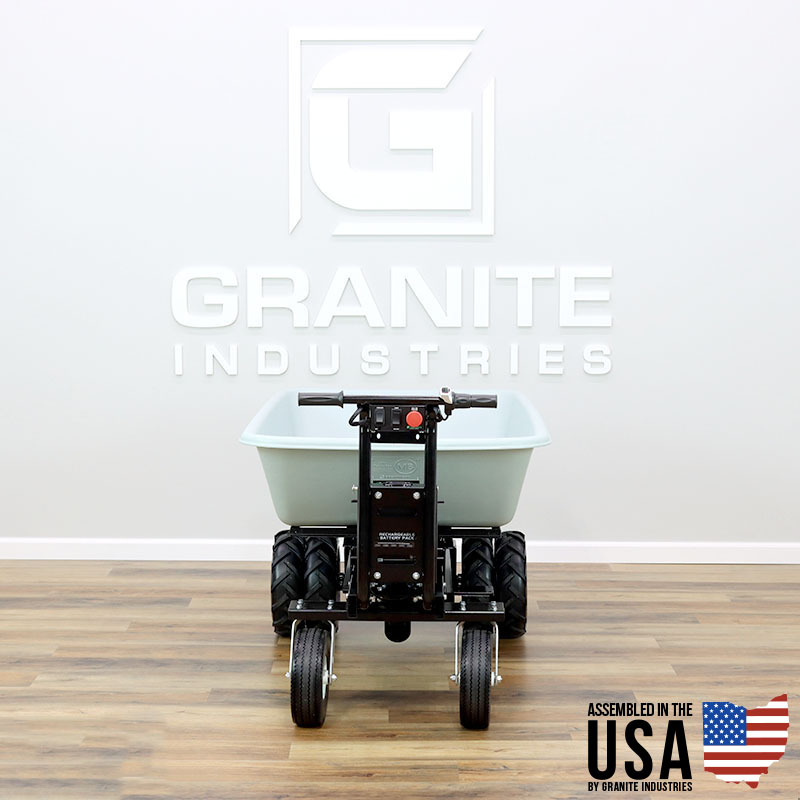

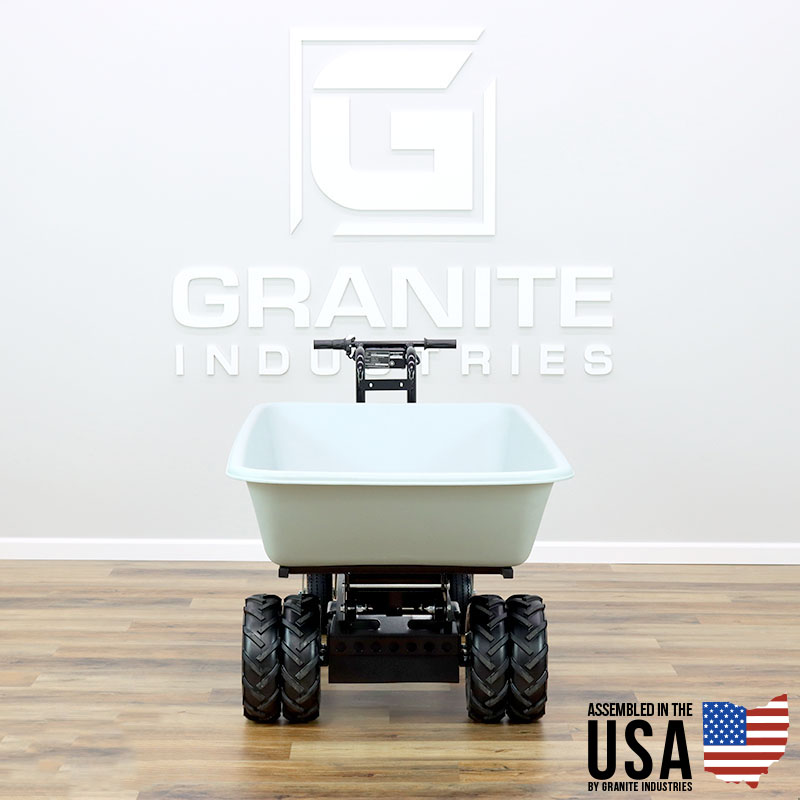

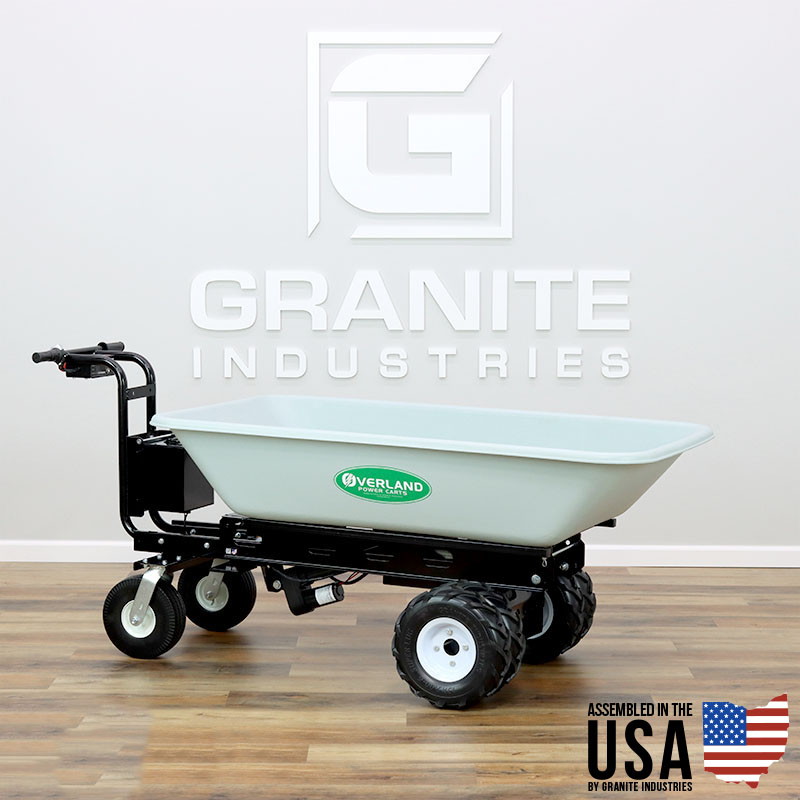

Overland Electric Powered Wagon – 9 cu. ft. Hopper with Power Dump

This Overland Power Wagon features a 9 cubic foot hopper with the power dump option.   This heavy duty wagon is the perfect choice for hauling stone, firewood, livestock supplies and landscape materials.

ESTIMATED SHIP DATE: Each cart is made to order in Archbold, OH.  Due to record setting demand and a critical component shortage on transaxles, we are currently expecting orders to ship about 12-14  weeks after the order is placed.

***Due to raw material cost skyrocketing we have been forced to add a 5% surcharge to all Granite/American Cart/Overland Cart products and 8% on scaffolding and staging productsThe surcharge will be calculated on the checkout screen.  We hope to clear this surcharge the moment component costs level off or begin to decrease. For more info, please review our blog post.***

$3,295.00

Free Shipping!
Clear

Overland 9 Cu. Ft. Electric Powered Wagon with Power Dump and Dual Ag Tires

This Overland Power Wagon features a 9 cubic foot hopper with the power dump option.   This heavy duty wagon is the perfect choice for hauling stone, firewood, livestock supplies and landscape materials. The low hopper height makes the wagon ideal cart for the equine, livestock, and landscape industries.  The electric power drive train ensures that the cart can operate indoors or outdoors without emitting fumes or noise. All of our Powered Carts, Wheelbarrows and Wagons use a twist style throttle. They’re simple to operate and will cut down on your work time.

**Overland Carts ship fully assembled via Freight Carrier/Common Carrier**
**Lift Gate service is required for MOST residential customers as it lowers the product to the ground**

Top Reasons to Buy an Overland

  • Easy to use – Power it on, twist the throttle and go.
  • Safe to Operate – Numerous safety features and a four wheel design set us apart.
  • Made in the USA – Quality you can feel. Manufacturing and support is all out of Archbold, OH.
  • All electric power – Zero emissions, zero fumes, and virtually no noise.
  • Minimal Maintenance – No oil filters, air filters, or gas to add. Just remember to plug it in.
  • All Day Battery – Operate the cart throughout the day on a single charge.
  • Massive Capacity – Load the cart up with 750 lbs of whatever you want.
  • Fully Assembled – All Overland Carts ship fully assembled.

Reviews and Blog Posts

Safety Features

  • SmoothStart – On acceleration, power is applied to the drive tires in a controlled manner ensuring a smooth start each time.
  • HillSense – Allows the cart to be safely used on inclines and declines.  The cart will travel at the speed set by the user, not by the incline or decline.
  • AutoLock – An automatic parking brake locks the wheels when the throttle is not being applied.  This feature prevents the cart from rolling away from the user and also provides easy loading and unloading on inclines and declines.
  • Emergency Stop – The red E-Stop button allows the user to immediately stop the progress of the cart.
  • Four Wheel Design – All Overland Carts have at least four wheels to provide maximum stability.
  • Overload Fuse – There is a built in overload fuse that measures the inputs of the drive system in real time.  If the incline, load, or terrain begins to overwork the motor, a fuse will stop the cart and prevent any damage to the transaxle.
  • Throttle Controlled Braking – The braking is controlled by the throttle, simply let up on the throttle and the cart will slow down to the desired speed.  To brake is automatically applied.
  • Throttle Defaults to Zero MPH – If the throttle is released for any reason, the throttle will automatically return to the zero MPH position and the cart will safely coast to a stop.  AutoLock will then engage and the cart will be secure.
  • No open gears, belts, or hot components – The design of the cart keeps hands safe and prevents possible burns caused by hot engine components.
  • Tested Over Time – Overland Cart has been developing and building carts for 10 years.  We know our carts and have developed them to be as safe as possible.

Additional Features

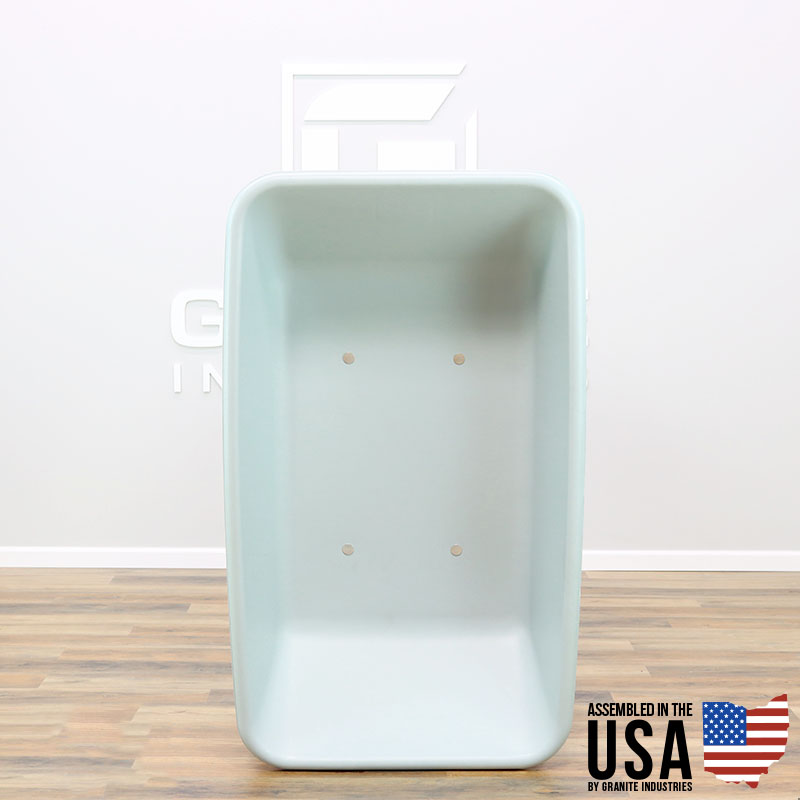

  • Heavy Duty POWER Dumping Hopper – Brentwood Buckets are the best in the wheelbarrow industry. Made in the USA from high density polyethylene.  Hopper dimensions: 14″H x 36″W x 62″L

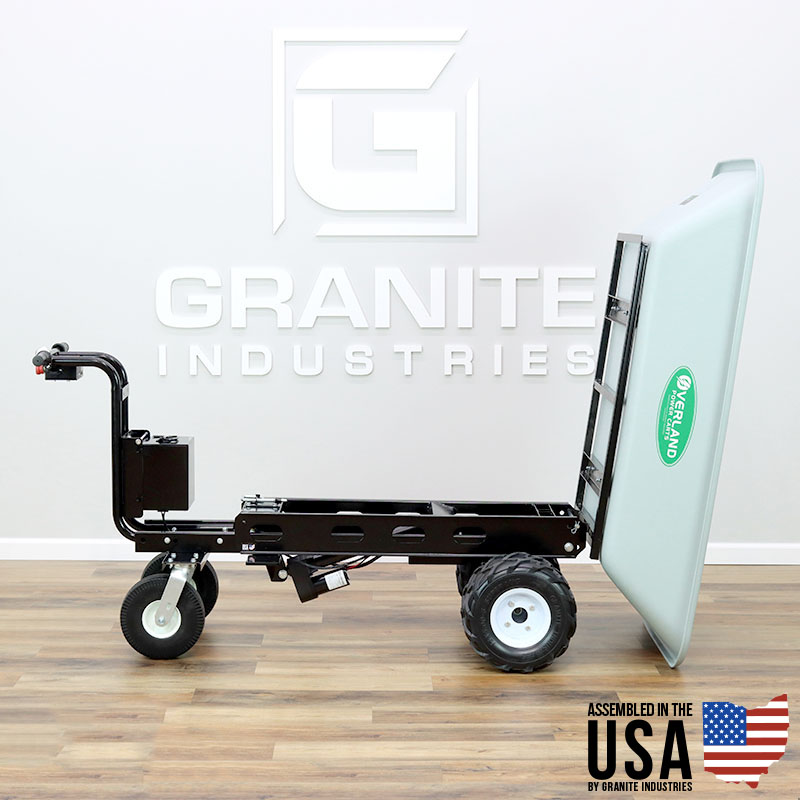

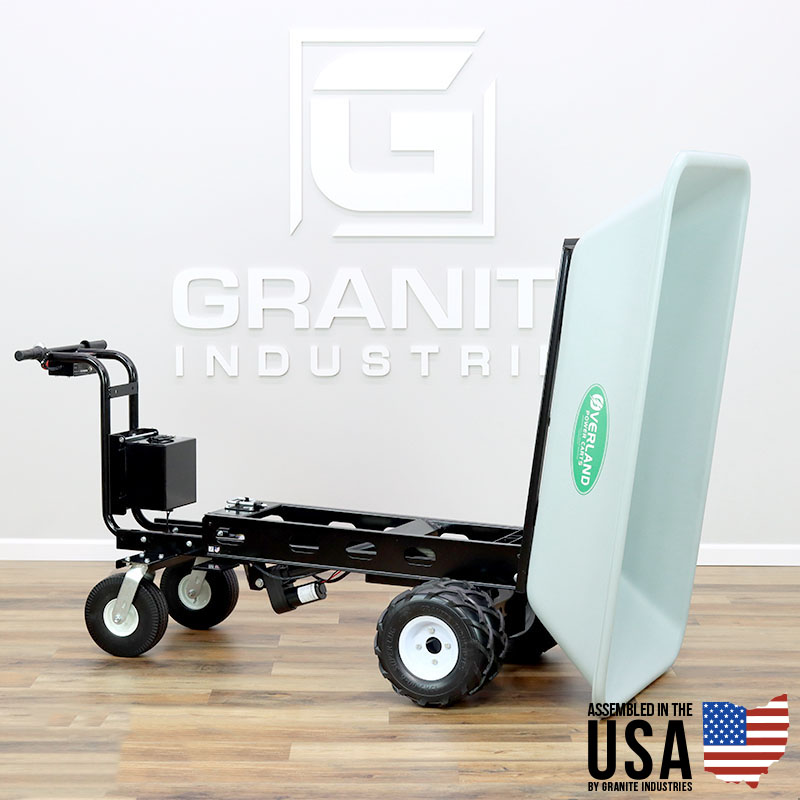

  • Power Dump Feature – Uses an electric lifter to lift the load and safely dump the contents.
  • Enclosed gear box – Gears are enclosed for maximum safety and durability.
  • Automatic parking brake – prevents rolling on inclines and keeps the cart locked in while being loaded.
  • Rechargeable and Removable Battery Pack –  6-8 hours on a standard charge.
  • 110V on board charger – Charge the cart with an extension cord or plug it right in the wall.
  • Battery life indicator – LED lights ensure you always know the current battery status
  • Powder coated frame – The chassis is welded and powder coated in house for lasting finish
  • Heavy duty 13″ drive tires – Complete with a steel hub and heavy duty wheels.
  • No flat swivel tires – Foam filled heavy duty swivel wheels.
  • Variety of quick attach accessories – Overland carts are built to be user friendly, including the removal of different components.
  • Removable Rechargeable Battery Pack – Quickly swap batteries or remove the battery to charge it.
  • Patented Design – Our carts feature patented designs and components.  Ensuring top tier build quality and design on all genuine Overland Carts.

Overland Tire Options

  • 13″ Flat Free Dual Ag Tires – Our best performing and most popular tire. The dual ag design works well for all applications, especially where maximum traction is desired.  The semi-pneumatic tire features a thick molded outer core with a hollow center.  The tires do not require inflation and cannot be punctured. The width from the tires is measured as 33″ from tire edge to tire edge when mounted on the cart.

Overland Rechargeable Battery Information

Overland Limited Warranty

  • 1 year – Powertrain, Electronics and Hopper
  • 3 year – Chassis
  • Limited to manufacturing defects
  • For the full warranty – Overland Limited Warranty

Overland Powered Carts
Overland Carts is a part of the Granite Industries family.  All carts are manufactured by Granite Industries in Archbold, Ohio.
The Granite Online Store is the official online store for all Overland Cart products






Looking for a quantity discount or more options?







  • Motor: 1 x 24 Volt DC Permanent Magnet
  • Continuous Power: 1 x 400 watts (0.536HP) at 24V
  • Drive: Single Reduction Open Differential Transaxle
  • Gear Ratio: 18:01
  • Capacity Level Ground: 750 lbs (295 kgs)
  • Speed: 0 – 3.0 mph
  • Static/Park Brake: Electromechanical, Fail Safe

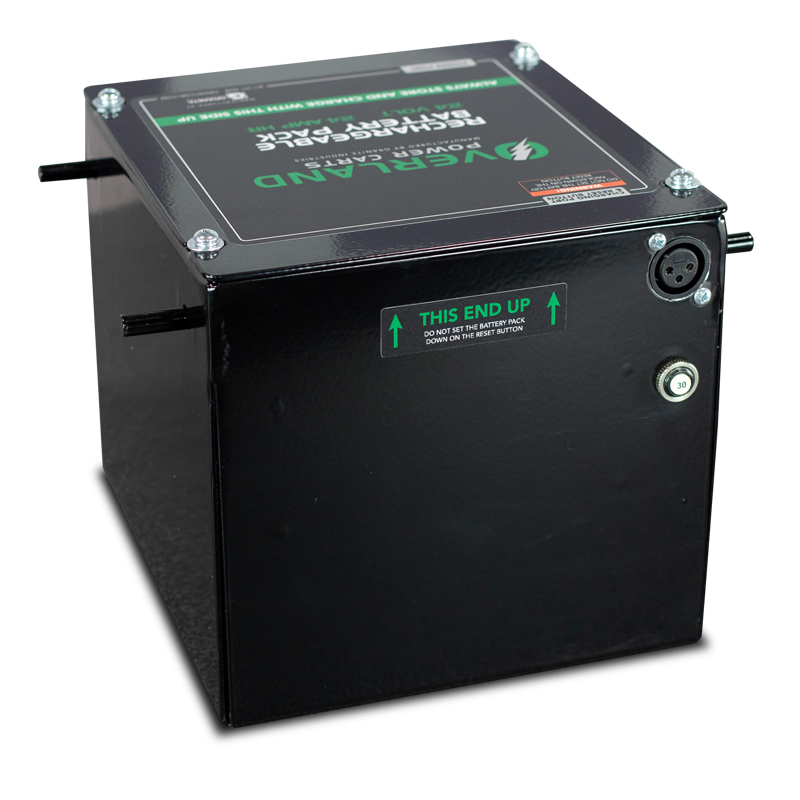

  • Battery: Removable & Rechargable 24V 24AH Sealed Lead Acid
  • Controller Capacity: 90 Amps
  • Charger: On Board, 5 Amp
  • Operating Time: 6 – 8 Hours (Real World)
  • Unit Dimensions: 38″ H x 36″ W x 75″ L
  • Hopper dimensions: 14″H x 36″W x 62″L
  • Weight: 258 pounds
  • Patent Pending

Have a question about the item?


Guest
Ben
4 months 6 days ago

How do you turn the 72620?

Support
Jeremy Rupp
4 months 5 days ago

Hi Ben, the 70262 cart has a zero turn radius. So you can actually spin the cart in a 360 degree circle without any power being applied. To see our turn radius in action, check out our YouTube video: https://youtu.be/24YDbccyJmM?t=102 starting at the 1 Minute 42 second mark. If you have any other questions feel free to reach out: 877-447-2648 or via email: support@graniteind.com

Guest
Stacia
3 months 8 days ago

What is the coldest temp the battery will charge at? I live in NH and we don’t have a large enough heated space for the winter for the entire cart. Can the battery come off easily for charging/storage in winter?

Support
Jeremy Rupp
3 months 8 days ago

Hi Stacia, the lowest temperature the battery will charge at is 5 degrees Fahrenheit. The battery can easily be removed as shown in this video: https://www.youtube.com/watch?v=UxyW80leHUQ. With the 9 cubic foot model we recommend two people to ensure proper safety. One person to hold the cart in position and one person to remove the battery pack. If you plan to charge the battery pack indoors we recommend purchasing a second 5Amp charger: https://store.graniteind.com/product/overland-charger-for-power-x-change-extended-battery-24v-5a. If you have any other questions feel free to reach out: 877-447-2648 or via email: support@graniteind.com
