Overland Electric Power Utility Wagon – 13 Cu. Ft. Metal Hopper

The Overland motorized cart takes the grunt work out of yard work. Simply load the metal hopper up, twist the throttle and effortlessly move the load to the desired location.

ESTIMATED SHIP DATE: Each cart is made to order in Archbold, OH.  Due to high demand, we are currently expecting orders to ship 3-5 business days after the order is placed.  If you need your cart sooner, please contact us at: 877-447-2648 and we will work with you to try to ensure your cart ships as soon as possible.



$2,695.00

Free Shipping!
Clear

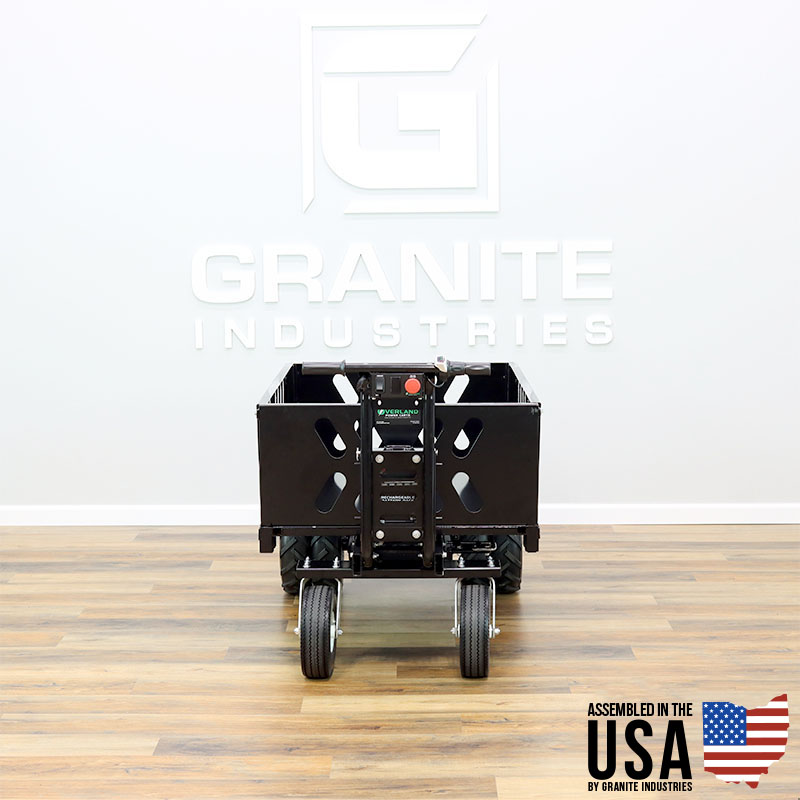

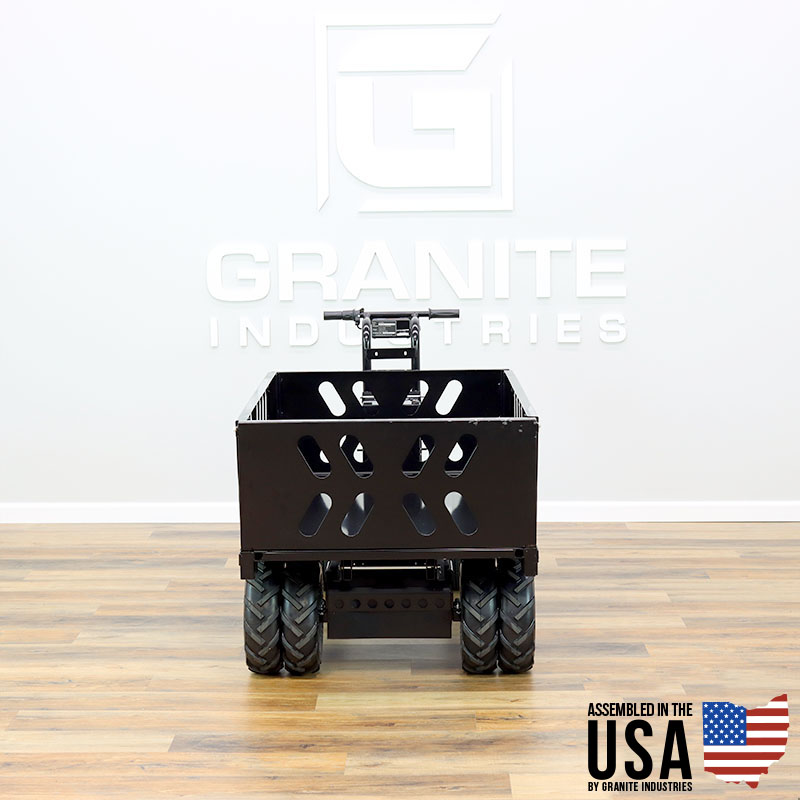

Overland Electric Power Wagon with 13 cubic foot Metal Hopper

Overland designed the electric power wagon for maximum productivity. The all metal construction provides a heavy duty and durable solution to nearly any task. The sides are all removable, converting the wagon to a flatbed. The Overland motorized cart takes the grunt work out of even the most trivial task . Simply load the hopper, twist the throttle.and effortlessly move the cart to its desired location. The chassis and power train are made from the best components on the market. This platform can handle up to 750 lbs of material with ease. Built from the ground up to seamlessly handle the electric power, these chassis is ready to go out of the box.

Overland offers a full line of additional accessories for the cart. Add a flat platform, polyurethane hopper, or a trailer dolly attachment. The possibilities are endless with this drive-train.  All of our Powered Carts, Wheelbarrows and Wagons use a twist style throttle. They’re simple to operate and will cut down on your work time.


**Overland Carts ship fully assembled via Freight Carrier/Common Carrier*
**Lift Gate service is required for MOST residential customers as it lowers the product to the ground**

Top Reasons to Buy an Overland

  • Easy to use – Power it on, twist the throttle and go.
  • Safe to Operate – Numerous safety features and a four wheel design set us apart.
  • Made in the USA – Quality you can feel. Manufacturing and support is all out of Archbold, OH.
  • All electric power – Zero emissions, zero fumes, and virtually no noise.
  • Minimal Maintenance – No oil filters, air filters, or gas to add. Just remember to plug it in.
  • All Day Battery – Operate the cart throughout the day on a single charge.
  • Massive Capacity – Load the cart up with 750 lbs of whatever you want.
  • Fully Assembled – All Overland Carts ship fully assembled.

Reviews and Blog Posts

Safety Features

  • SmoothStart – On acceleration, power is applied to the drive tires in a controlled manner ensuring a smooth start each time.
  • HillSense – Allows the cart to be safely used on inclines and declines.  The cart will travel at the speed set by the user, not by the incline or decline.
  • AutoLock – An automatic parking brake locks the wheels when the throttle is not being applied.  This feature prevents the cart from rolling away from the user and also provides easy loading and unloading on inclines and declines.
  • Emergency Stop – The red E-Stop button allows the user to immediately stop the progress of the cart.
  • Four Wheel Design – All Overland Carts have at least four wheels to provide maximum stability.
  • Overload Fuse – There is a built in overload fuse that measures the inputs of the drive system in real time.  If the incline, load, or terrain begins to overwork the motor, a fuse will stop the cart and prevent any damage to the transaxle.
  • Throttle Controlled Braking – The braking is controlled by the throttle, simply let up on the throttle and the cart will slow down to the desired speed.  To brake is automatically applied.
  • Throttle Defaults to Zero MPH – If the throttle is released for any reason, the throttle will automatically return to the zero MPH position and the cart will safely coast to a stop.  AutoLock will then engage and the cart will be secure.
  • No open gears, belts, or hot components – The design of the cart keeps hands safe and prevents possible burns caused by hot engine components.
  • Tested Over Time – Overland Cart has been developing and building carts for 10 years.  We know our carts and have developed them to be as safe as possible.

Additional Features

  • Heavy Duty Steel Hopper – 13 cubic foot custom steel hopper. Made in the USA. Dimensions: 14″ H x 32″ W x 51″ L
  • Removable Sides – The sides are all removable for maximum load configurations.
  • Easy Start – Simply pull out the red E-stop button on the handle and the cart is immediately ready to drive.
  • Variable Speed Twist Throttle – Similar to a motorcycle throttle.  Very easy to use and to control the speed.
  • Enclosed Gear Box – Gears are enclosed for maximum safety and durability.  The transaxle is sealed for life and does not require any maintenance.
  • Manual Mode – Allows the cart to be operated without battery power.
  • Forward/Reverse – Direction can be selected from the toggle switch on the handlebar.  The cart travels the same speed in either direction.
  • Zero Turn Radius – The open differential allows the cart to be spun in a circle without power being applied, allowing for a true zero turn radius.
  • Near Silent Operation – The electric drive system is almost silent in its operation.
  • IMPROVED Battery Life – 6-8 hours of run time on a standard battery.
  • 110V On Board Charger – Charge the cart with an extension cord or plug it right in the wall.
  • Battery Life Indicator – LED lights ensure you always know the current battery status
  • Powder Coated Frame – The chassis is welded and powder coated in house for lasting finish
  • Heavy Duty 13″ Drive Tires – Complete with a steel hub and heavy duty wheels.
  • 10″ Rear No Flat Swivel Casters – Foam filled heavy duty swivel wheels.
  • Rechargeable AGM Sealed Lead Acid Batteries – Absorbent Glass Mat (AGM) batteries are the most advanced batteries on the market and offer a spill-proof design.
  • Removable Rechargeable Battery Pack – Quickly swap batteries or remove the battery to charge it.
  • Patented Design – Our carts feature patented designs and components.  Ensuring top tier build quality and design on all genuine Overland Carts.

Overland Tire Options

  • 13″ Flat Free Dual Ag Tires – Our best performing and most popular tire. The dual ag design works well for all applications, especially where maximum traction is desired.  The semi-pneumatic tire features a thick molded outer core with a hollow center.  The tires do not require inflation and cannot be punctured. The width from the tires is measured as 33″ from tire edge to tire edge when mounted on the cart.

Overland Limited Warranty

  • 1 year – Powertrain, Electronics and Hopper
  • 3 year – Chassis
  • Limited to manufacturing defects
  • For the full warranty – Overland Limited Warranty

Overland Powered Carts
Overland Carts is a part of the Granite Industries family.  All carts are manufactured by Granite Industries in Archbold, Ohio.
The Granite Online Store is the official online store for all Overland Cart products




Looking for a quantity discount or more options?




  • Motor: 24 Volt DC Permanent Magnet
  • Drive: Single Reduction Open Differential Transaxle
  • Capacity Level Ground: 750 lbs (295 kgs)
  • Capacity 3:1 Slope: 500 lbs (227 kgs)
  • Speed: 0 – 3.2 mph / (0 – 5.2 kph), Variable
  • Static/Park Brake: Electromechanical, Fail Safe
  • Battery: Removable & Rechargable 24V 21AH Sealed Lead Acid
  • Charger: On Board, 5 Amp
  • Real World Operating Time: 6 – 8 Hours
  • Unit Dimensions: 38″ H x 33″ W x 63″
  • Hopper Dimensions: 14″ H x 32″ W x 51″ L
  • Hopper Capacity: 13 cubic feet
  • Weight: 298 pounds
  • Patent Pending

Have a question about the item?


Guest
Joel C
1 year 5 months ago

is there a remote control option? wireless or not??

Support
Jeremy Rupp
1 year 5 months ago

Hi Joel, we do not offer remote control or wireless control for our Overland Carts. All carts must be operated by hand.

Guest
Cliff
1 year 5 months ago

What is the motor rpm, here can I.buy a replacement mktor and.controller, parts ingeneral for this.and how much.does a motor.and controller.cost?

Support
Jeremy Rupp
4 months 11 days ago

Hi Cliff, the electric motor specs are not publicized. We sell all the replacement parts you may need for your Overland directly. A replacement transaxle includes the motor and differential and goes for about $450.00 the controller goes for about $200.00. Both items are sourced from high quality suppliers and are expected for many years.

Guest
Cliff
1 year 5 months ago

What watt motors are used.in.the larger cart?

Support
Jeremy Rupp
4 months 11 days ago

The electric motor is 400W and is geared specifically for our carts.

Guest
Cliff
1 year 5 months ago

What is the motor rpm, torque rating and wattage rating on the larger cart? Is it a single 24v battery used, or multiple 12v batteries in series? Is it a chain drive or direct gear drive?

Support
Jeremy Rupp
4 months 11 days ago

Hi Cliff, the electric motor is 400W and our carts use two 12V batteries wired in series. The transaxle includes the differential and motor in one unit. It is direct gear drive and is sealed for life.

Guest
Lee
5 months 9 days ago

max weight on a slope

Support
Jeremy Rupp
4 months 11 days ago

Hi Lee, much of the max weight depends on the slope angle, slope length, terrain and load. We generally would say that our 2WD carts can handle between 250 lb – 500 lb depending on those parameters. If you are looking for improved performance on inclines then I would suggest our 4WD models that feature two drive motors.

Guest
Mark
4 months 17 days ago

Which model works best for hauling wood in a forested area, with rough terrain?

Support
Jeremy Rupp
4 months 11 days ago


Overland Rechargeable Battery Information

Freight Shipping

  • Optional lift gate service lowers the freight to ground level for easy unloading in residential areas
  • For more information, please review our freight policy: Granite’s Freight Shipping Policy

Additional information

Weight 225 lbs
