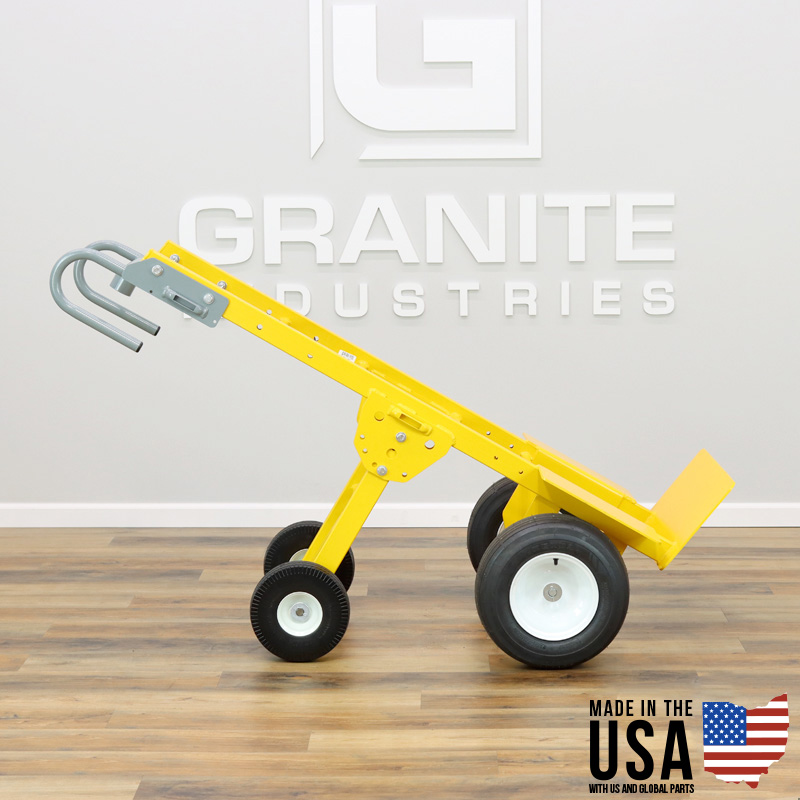

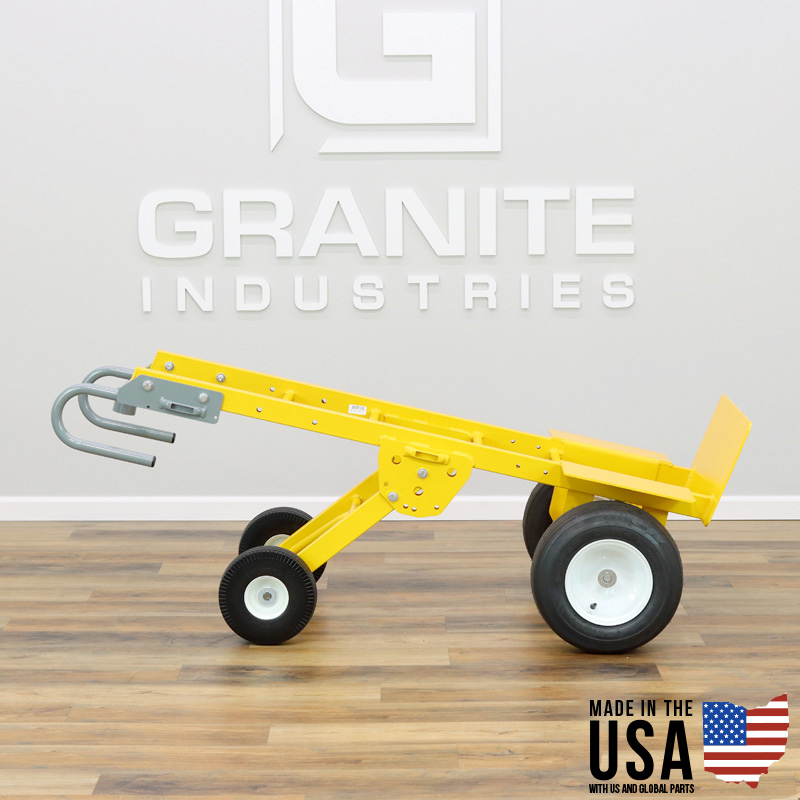

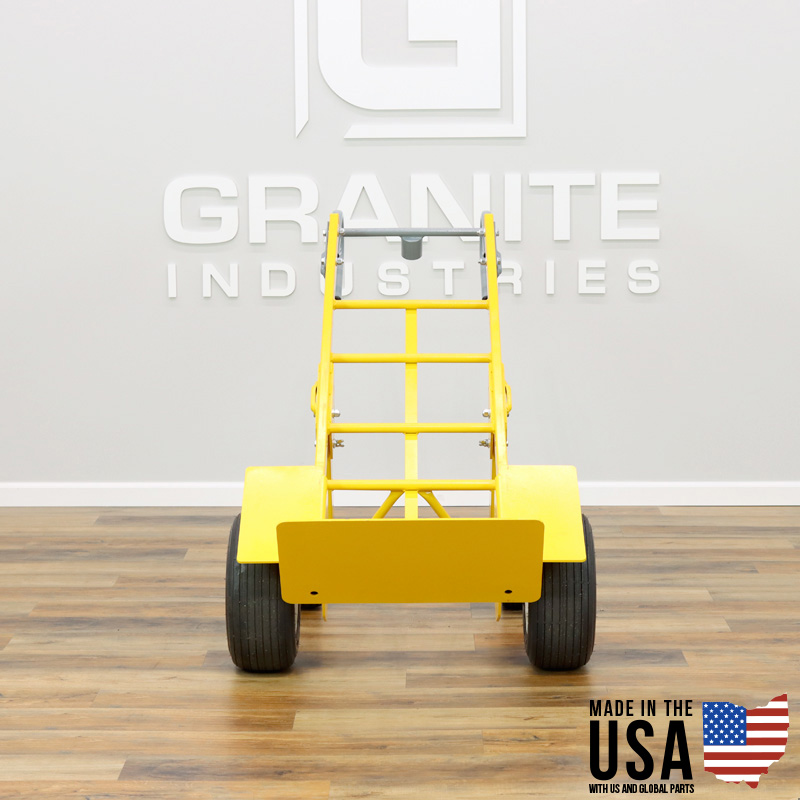

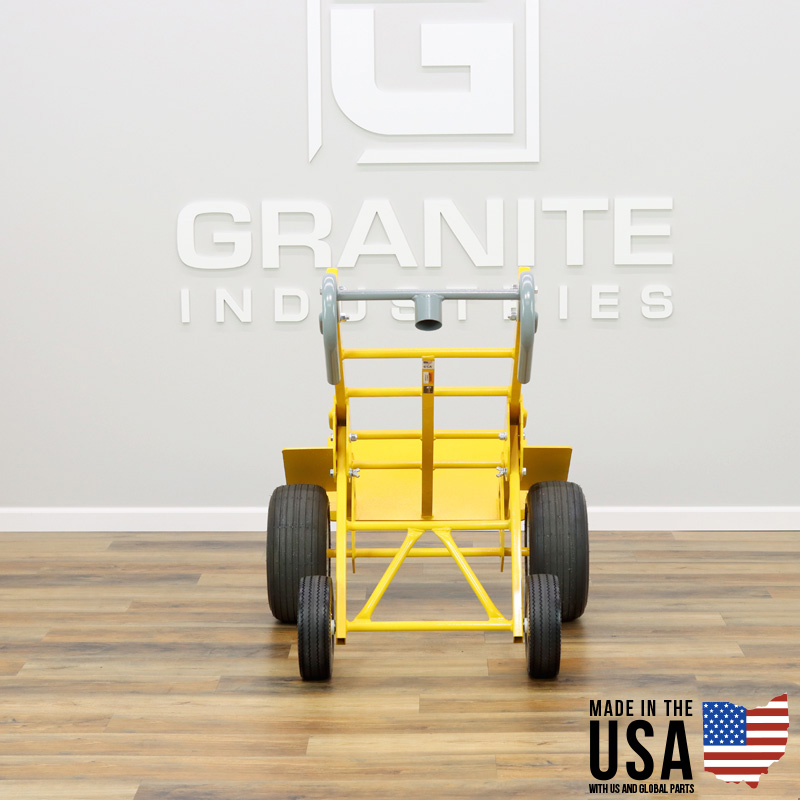

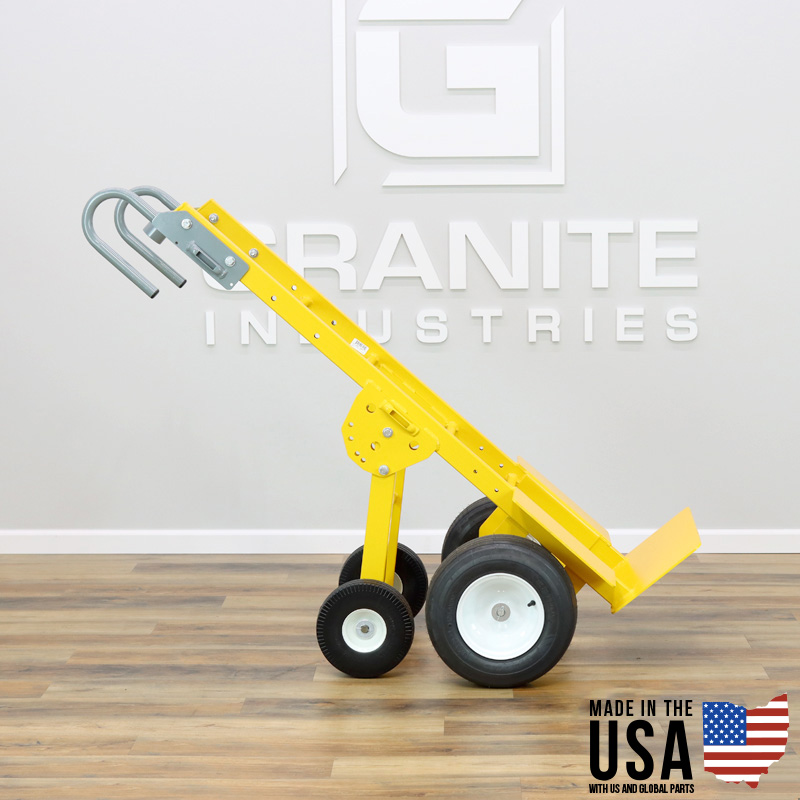

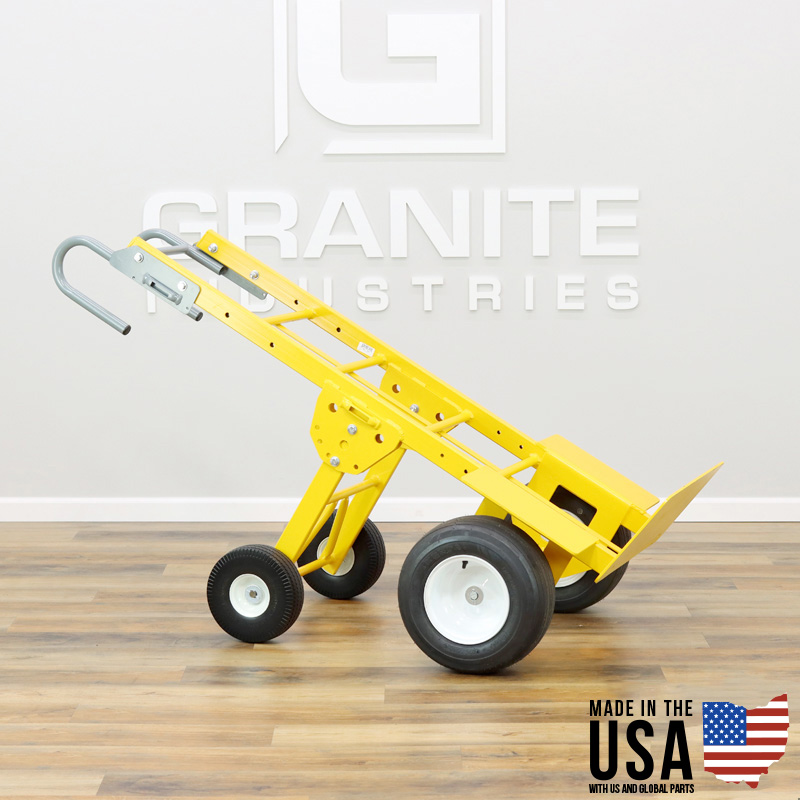

American Cart Mega Hauler Hand Truck with Rear Folding Wheels

The large 16″ flotation tires allow the Mega Mover hand truck to go over loose and soft terrain. It’s an ideal cart for driving over sand, making it perfect for transporting items like tents or tables for your beach events.

ESTIMATED SHIP DATE: Each American Cart and Rack product is made in Archbold, OH.  Due to record setting demand and a critical component shortage, we are currently expecting orders to ship about 2-3 weeks after the order is placed.  It may be longer if the item ordered is not a typical stock item.  Contact us for more information regarding stock levels and estimated ship dates: or 877-447-2648.


Free Shipping!

American Cart Mega Hauler Hand Truck with Rear Folding Wheels

The Mega Hauler is a fantastic all around cart with a capacity of 1,000 pounds .  The large 16″ flotation tires allow the Mega Hauler hand truck to go over loose and soft terrain. It’s perfect for transporting items like tents or tables. At 65″ tall, the cart has extra leverage and the rear folding wheels allow for better weight distribution and ride control. The Mega Hauler is built tough and now features optional flat free front tires.  The built in ball hitch works with our trailer dolly to create an off road wagon. E-Ratchet strap compatibility is built into the cart, for maximum load security.

The Mega Hauler is available with or without rear wheel attachments.   The rear wheels feature 10 inch diameter flat free tires.  The ball hitch attachment fits a 2″ ball.

View the full specification sheet:  67265 – Mega Hauler with Rear Wheels Spec Sheet

Our Best Hand Trucks For Inflatables

  • Small Inflatables (up to 500 lb): Multi Mover Hand Truck With Rear Wheels – This hand truck is the perfect companion for handling smaller inflatables. (Static Load Capacity: 800 lb w/ rear bolt kit)
  • Medium Inflatables (up to 800 lb): Multi Mover XT or Mega Hauler – Inflatables that are larger in size are best handled by our Multi Mover XT with Rear Wheels or our Mega Hauler.  The Multi Mover XT features a 27″W x 31″L footplate that adds versatility for inflatable companies.  The XT has rear swivel wheels for easy steering when the cart is loaded.  For the best performance in grass and different terrains, take a look at our Mega Hauler. (Static Load Capacity: 1,200 lb)
  • Large Inflatables (800 lb+): Mega Hauler with Rear Wheels – The best all around cart for inflatables is our Mega Hauler with Rear Wheels.  Featuring a fully boxed frame and 3/4″ solid steel axle the cart is designed to take the abuse from customers. But don’t just take our word for it, here’s what one of our customers has to say: “We use your Mega Hauler Hand Trucks and absolutely love them!  They are completely indestructible.” There are three different versions: Mega Hauler, Mega Hauler w/ Rear Wheels and Mega Hauler Slim w/ Rear Wheels (only 25″ wide). (Static Load Capacity: 1,200 lb)
  • Big Herc Powered Hand Truck – Inflatables up to 950 lb: The Big Herc is designed from the ground up to move inflatables and bounce houses. It features a powerful 24V 950 watt direct drive motor (nearly 2.5X the power of our standard motor) along with a massive 39 Amp Hr Battery Pack.  The Big Herc excels on all terrains and inclines.  It is the ultimate hand truck for inflatable companies. (Static Load Capacity: 950 lb)

Mega Hauler Hand Truck Features

  • Adjustable Handles: The handles can be placed in a high or low position
  • One piece welded frame – Revised design adds strength and stability to the cart.
  • 16″ Flotation tires – Pneumatic tires provide stability across grass, gravel or uneven terrain. 16″ x 6″ wide
  • 15″ Optional Flat Free Tires – Provides the same capacity as the pneumatic tires but without the risk of tires going flat.  15″ x 6″ wide.
  • Increased Capacity – Handle up to 1,200 pounds in any position.  With rear wheels or without rear wheels the cart features the same 1,200 pound capacity.
  • Total Tire Capacity (1840 lb) – Heavy duty tire construction ensures maximum load safety.  Front tires are rated at 620 lb/ea and the rear tires are rated at 300 lb/ea for a total tire capacity of 1840 lb.
  • 3/4″ axle – Industry leading axle diameter for maximum strength.
  • Oversize base plate – Thicker and more surface area than a standard hand truck (24″ Wide x 12″ Deep)

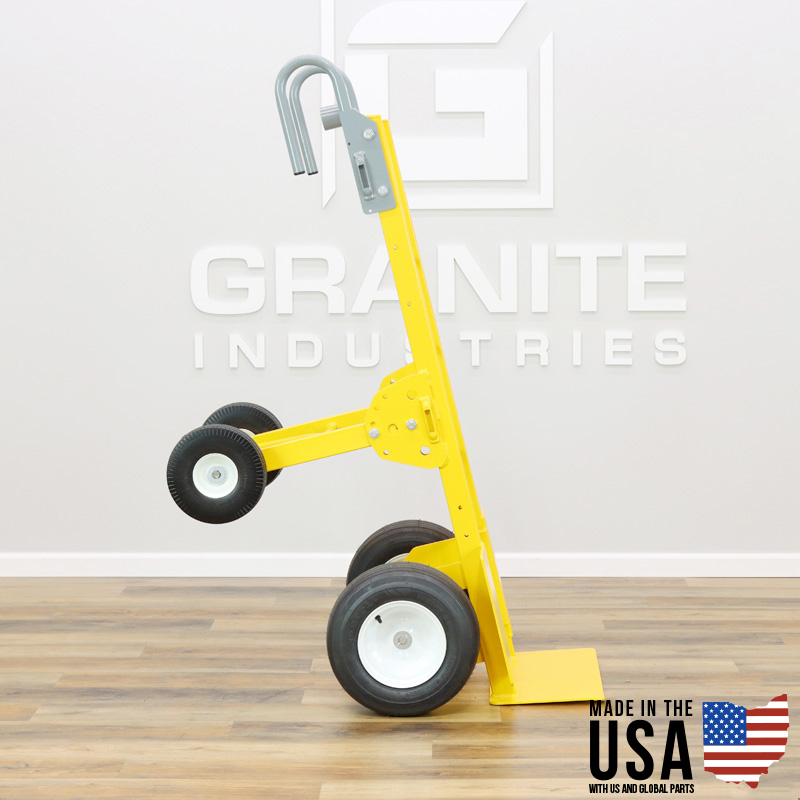

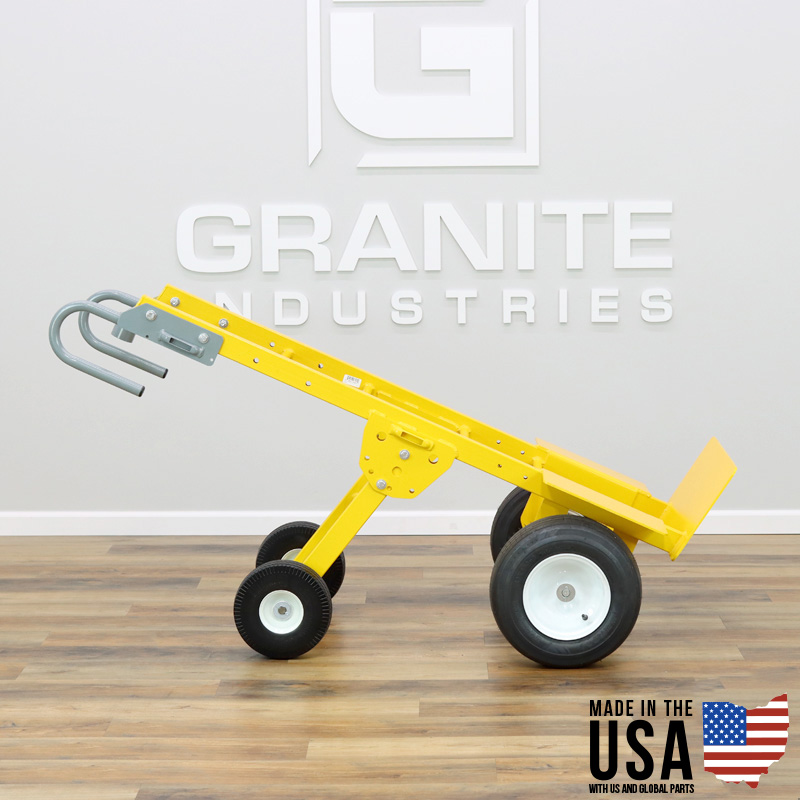

  • Fold down rear wheels – Wheels lock into 3 different positions based on application.
  • Rear Flat free wheels –  The rear wheels are 10″ in diameter and feature steel hubs with heavy duty flat free tires.
  • E-Track Ratchet System – Allows heavy loads to be secured to the cart.
  • Trailer Hitch Mount – Lay the rear wheels flat and use a trailer dolly to move the cart.  Fits on any 2″ or less ball hitch.

Standard American Cart Features

  • Powder coated finish – Protects the steel and provides a lasting finish
  • Heavy-duty comes standard – American Carts are all built to heavy duty specs
  • D-Brackets – One piece design holds the axle in place and supports the load
  • Made in the USA – Hand crafted at our Ohio plant.
  • Steel construction – Built from American sourced steel
  • Easy to operate – Designed to get work done with less muscle strain and simple operation.
  • Innovative design – Developed from customer inputs and suggestions
  • Ready to ship – in stock and ready to ship
  • Three Year Limited Warranty

American Cart and Rack
American Cart and Rack is part of the Granite Industries family.  All carts are manufactured by Granite Industries in Archbold, Ohio.
The Granite Online Store is the official online store for all American Cart and Rack products.



Looking for a quantity discount or more options?


  • Dimensions Position 1: 35″ W x 52″ H x 66″ D
  • Dimensions Position 2: 35″ W x 42″ H x 72″ D
  • Dimensions Position 3: 35″ W x 38″ H x 74″ D
  • Dimensions Position 4: 35″ W x 27.5″ H x 75″ D
  • Dimensions Position 5: 35″ W x 26″ H x 74″ D (Highest point in this position is the footplate)

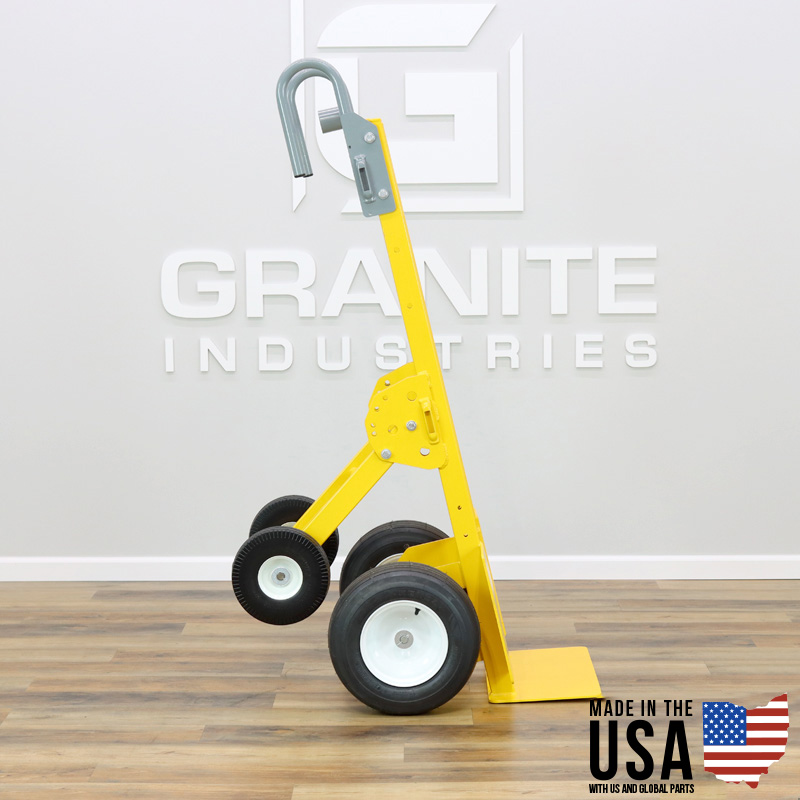

  • Upright Dimensions: 35″W x 69″ H x 37.5″ D
  • Note: All dimensions are given with the handle in the highest position
  • Base Plate Dimensions: 24″ Wide x 12″ Deep (9.25″ Deep from body intersection to the front of base plate)
  • Tires: 16″ Flotation tires
  • Capacity: 1,200 lbs.
  • Total Tire Capacity (1840 lb) – Front tires are rated at 620 lb/ea and the rear tires are rated at 300 lb/ea for a total tire capacity of 1840 lb.
  • Weight: 176 lbs.
  • View the full specification sheet:  67265 – Mega Hauler with Rear Wheels Spec Sheet

Have a question about the item?

4 years 2 months ago

what is lift gate service?

Jeremy Rupp
4 years 2 months ago

Hi Dean,

Lift gate service is required for freight orders where the drop off location does not have a loading dock or the ability to move the shipment directly off the truck. This also is required for shipments deemed too heavy or large to unload safely by hand. The lift gate service will lower the shipment to the ground so it can be moved. The fee for this service is normally $80.00 but that fee is waived on Overland Carts.

NOTE: Lift gate service can add additional time to the delivery date. Most freight carriers will transfer the shipment to a third party that is headquartered regionally. The third party freight company will actually be the one who delivers the shipment. The freight company will normally call to setup a delivery time via phone. If more information is needed on your delivery, please contact us at 877-447-2648 or email

For more frequently asked questions:

Rick DeWolfe
3 years 10 months ago

Hello, I purchased the Mega Hauler hand truck from you here online. I just read here that optional flat free tires are now available. I would be interested, especially if they are narrower than the standard flotation tires and would allow the truck to navigate through a 36″ doorway. Can you provide their width and cost please?

Jeremy Rupp
3 years 8 days ago

Hi Rick, the optional flat free tires for the Mega Hauler are nearly identical to the pneumatic tires. Both tires allow the Mega Hauler to pass through through a 36″opening. We are able to sell the tires direct and the tires can be ordered over the phone: 877-447-2648

3 years 10 days ago

What are the shipping (crated) dimensions and weight for 2 of these? I am in Canada and need to figure out the freight and import costs etc.

Jeremy Rupp
3 years 8 days ago

Hi David, if you’d like, you can send an email to with your complete ship to address and we can get a freight quote for you. We can also send you the specific dimensions and weight for the two units you are requesting. Thanks!

4 days 18 hours ago

How wide are the rear tires?


Download the spec sheet:  67265 – Mega Hauler with Rear Wheels Spec Sheet
Download the instruction manual: 67265 – Mega Hauler with Rear Wheels Instruction Manual
Download the American Cart Catalog: American Cart Catalog
