Signature Series 3 Row Bleacher Steel Understructure

The Signature Series Steel Bleacher 3 Row Understructures offer unbeatable value and performance.

***Due to raw material cost skyrocketing we have been forced to add a 5% surcharge to all Granite/American Cart/Overland Cart products and 8% on scaffolding and staging productsThe surcharge will be calculated on the checkout screen.  We hope to clear this surcharge the moment component costs level off or begin to decrease. For more info, please review our blog post.***

$495.00

Free Shipping!
Clear

Granite Industries Signature Series 3 Row Steel Bleacher Understructure Only

The Signature Series Steel Bleacher Understructures offer unbeatable value and performance. Engineered, manufactured and assembled in the USA, the Signature steel supports are built to last. This particular understructure is made for 3 rows of bleachers. Granite steel supports are made from A500 steel. This steel is known for it’s strength characteristics.

The black powdercoat finish offers unmatched finish and expected life. These steel frames offer plenty of versatility as you can add your own seatboard or footboard. Also included are galvanized steel X-braces. These braces are built for ease of use and rigidity.

There are 3 different 5 row options:

3 Row, 6′ Long (90304) – This option includes two (2) steel frames and two (2) X-braces. These frames are designed to be placed 6′ apart. The recommended seatboard length is 9′ for this option. Seats 18 people when properly equipped. Package weighs 62 lbs.

3 Row, 12′ Long (90305) – This option includes three (3) steel frames and four (4) X-braces. These frames are designed to be placed 6′ apart. The recommended seatboard length is 15′ for this option. Seats 30 people when properly equipped. Package weighs 102 lbs.

3 Row, 18′ Long (90306) – This option includes four (4) steel frames and six (6) X-braces. These frames are designed to be placed 6′ apart. The recommended seatboard length is 21′ for this option. Seats 30 people when properly equipped. Package weighs 142 lbs.

All-In-One Starter Package Includes

  • Black Powder Coated Steel Frames (Ranging from 2-4 based on package ordered)
  • Galvanized Steel X-braces (Ranging from 2-6 based on package ordered)
  • Hardware Kit

Additional Info

  • Approximate Support Dimensions: 3″ W x 4’8″ D x 2’6″ H
  • Additional OSHA requirements: None – with height below 30″
  • 5 year limited warranty

Granite Industries Online
The Granite Online Store is the official online store for all Granite Industries products, American Cart products and Overland Cart products.






Looking for a quantity discount or more options?




  • Approximate Support Dimensions: 3″ W x 4’8″ D x 2’6″ H
  • Additional OSHA requirements: None – with height below 30″
  • 5 year limited warranty

Have a question about the item?


Guest
Rick Jolicoeur
2 years 10 months ago

How wide of a bench and food board are these designed for? Also will they work with wood bench seats?

Support
Jeremy Rupp
2 years 10 months ago

Hi Rick, the understructures are designed for 10″ wide footboards and seatboards. The understructures are compatible with wood plank seating. If you have any other questions please feel free to email us: support@graniteind.com or give us a call: 877-447-2648. Thanks!

Guest
Matt
15 days 9 hours ago

This page says “Signature Series 3 Row Bleacher ” but the photo has what looks like a picture of a 5 row frame. Is this the 5 row or 3 row series in the photo?

Support
Jeremy Rupp
14 days 5 hours ago

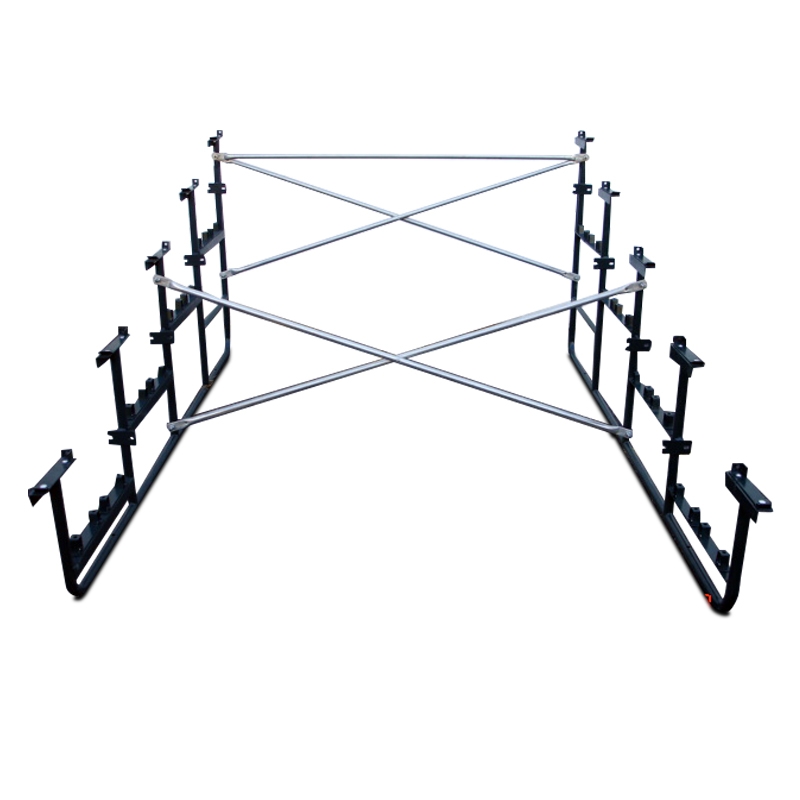

Hi Matt, good question. The photo shown is just a stock photo of our under structure. You correct that a five row is shown. A three row is very similar just three rows instead of five.

Guest
Matt
13 days 10 hours ago

Do you have the dimensions and schematic for the 3 row version? I see it for the 4, but not the three.

Support
Jeremy Rupp
8 days 12 hours ago

Hi Matt, We can get you the specific dimensions and schematics. Just let us know which part number you are looking to purchase: support@graniteind.com or give us a call: 877-447-2648. Thank you!



Download the Staging,Seating & Fencing Catalog: Staging, Seating, & Fencing Catalog Catalog - Sp Events

Freight Shipping

  • If the order quantity allows for freight shipping, we will ship it via freight.
  • Optional lift gate service lowers the freight to ground level for easy unloading in residential areas
  • For more information, please review our freight policy: Granite’s Freight Shipping Policy

Additional information

Weight 120 lbs
