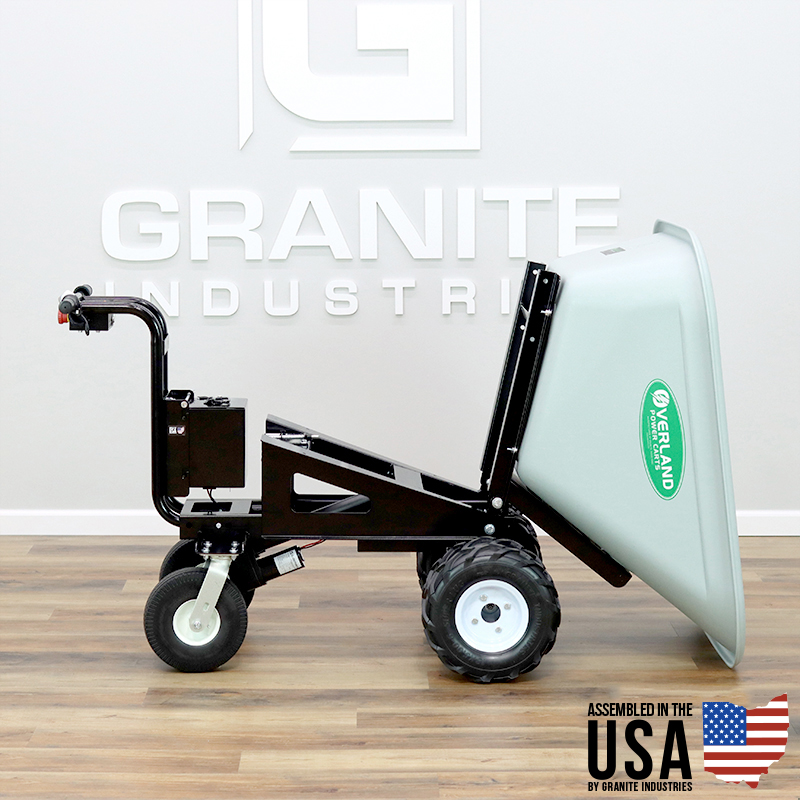

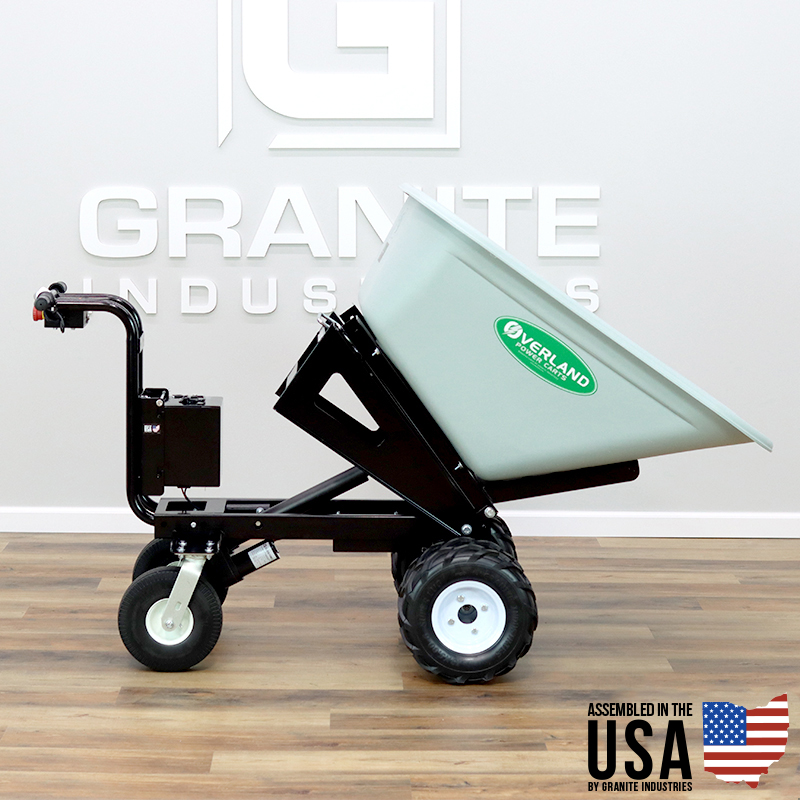

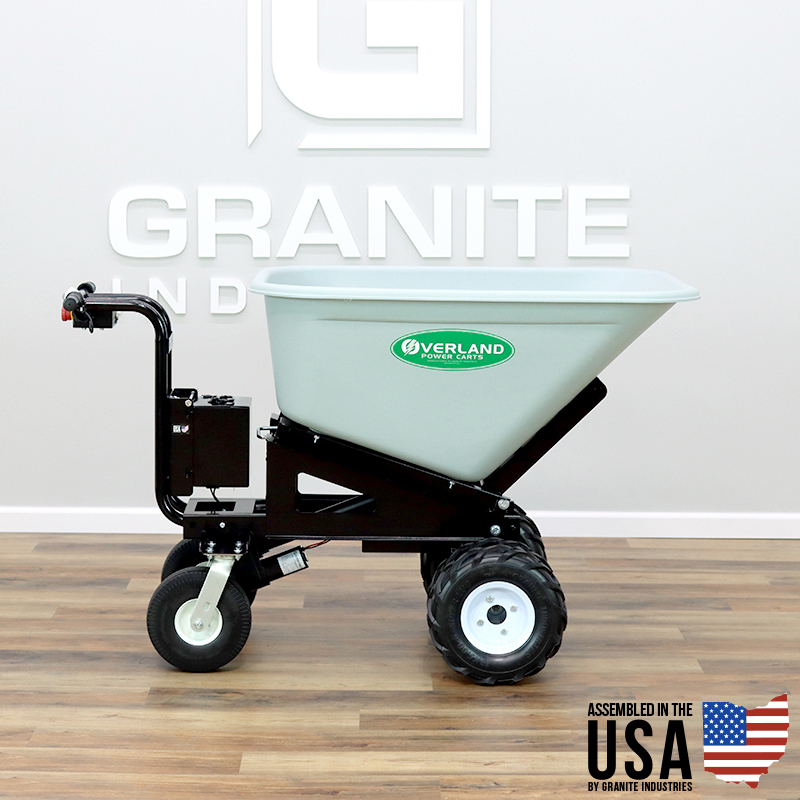

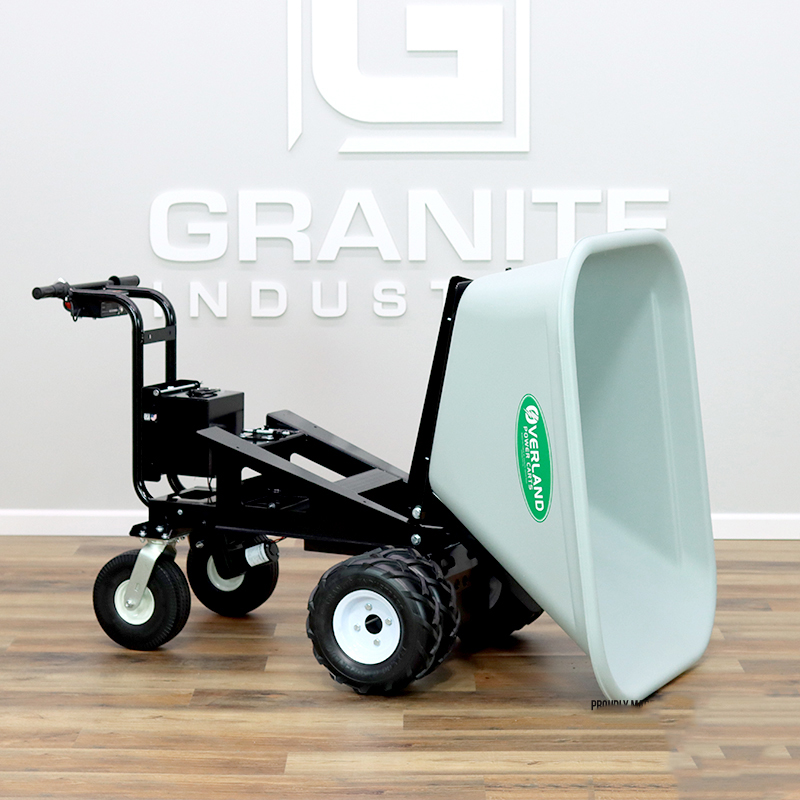

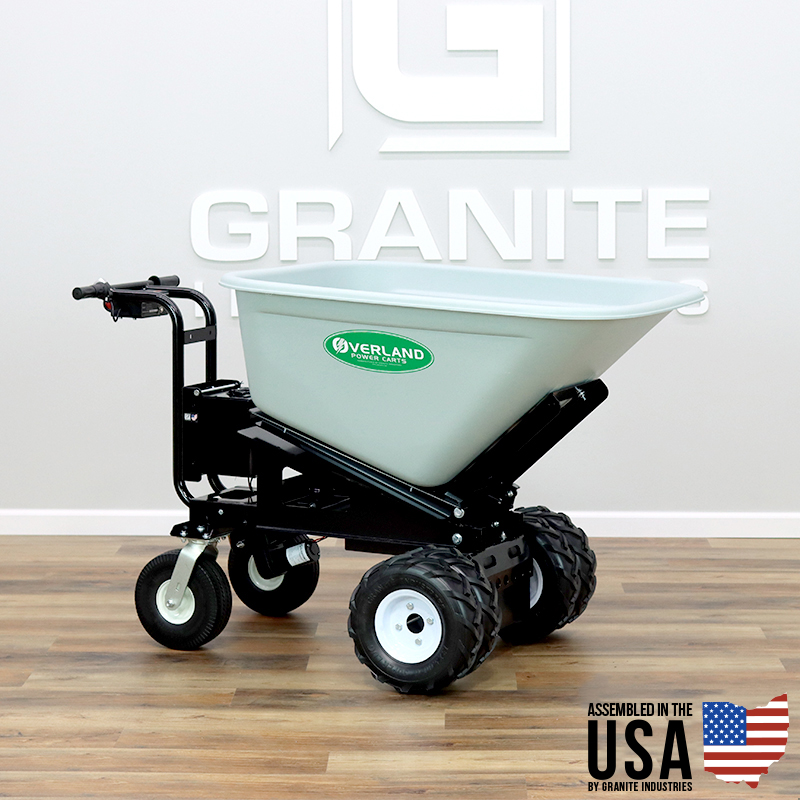

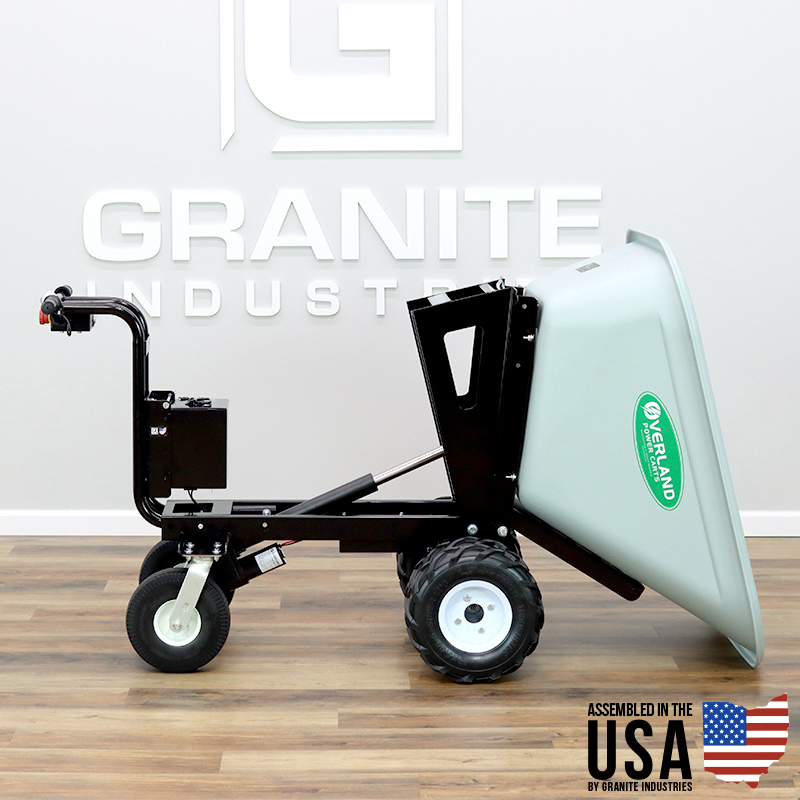

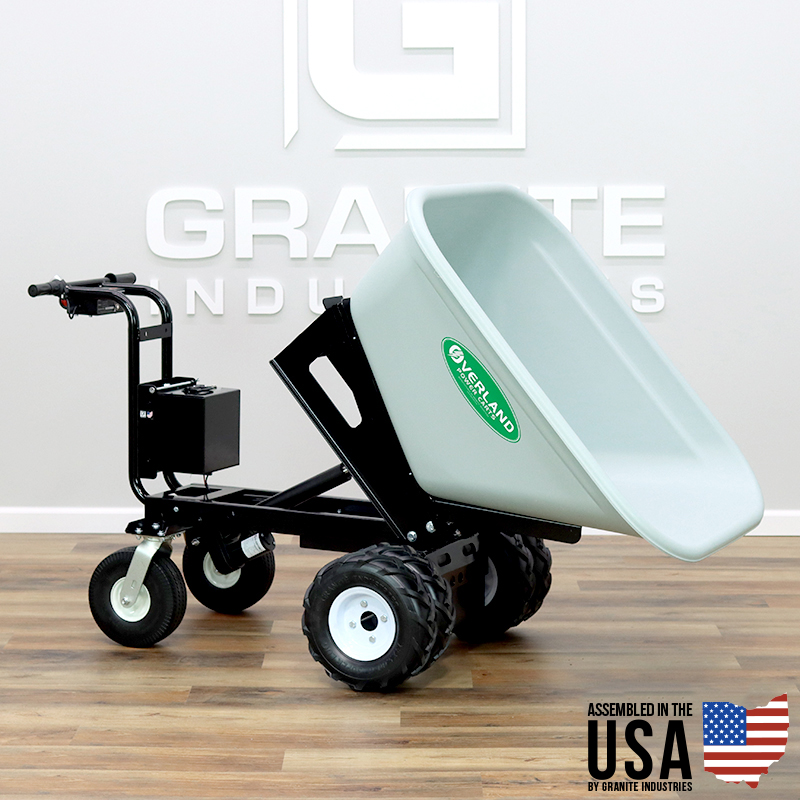

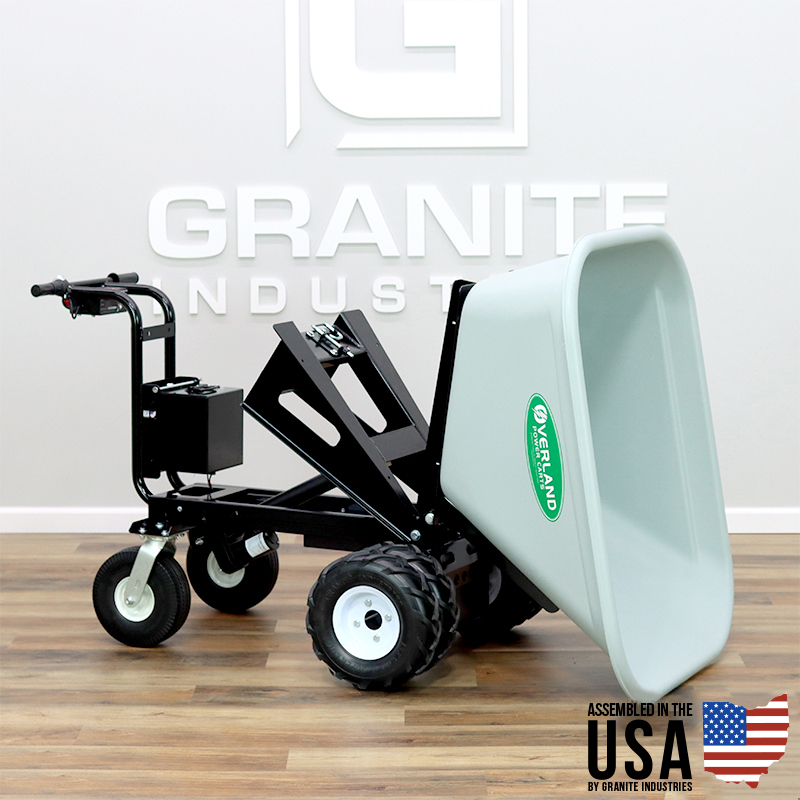

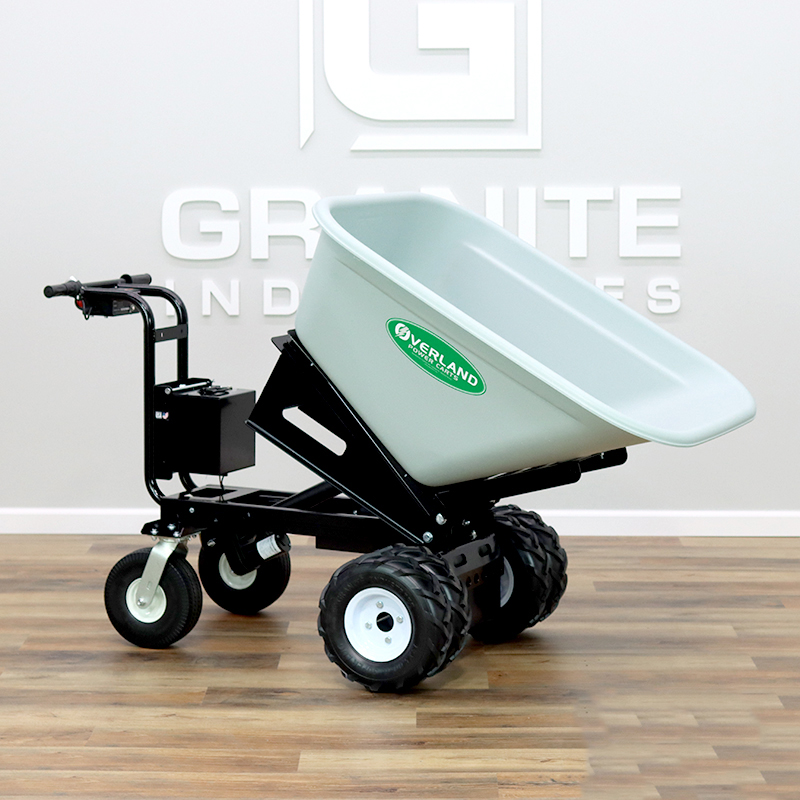

Overland Electric Wheelbarrow – 10 cu. ft. with Power Dump and Extended Range Battery

With 10 cubic foot of hauling space, this cart has plenty of room to get the job done.  For even more power, upgrade your cart to our 600 Series!  The 600 Series adds 50% more power (400W to 600W) and 50% more battery capacity (24 Amp Hr to 35 Amp Hr).

ESTIMATED SHIP DATE: Each cart is made to order in Archbold, OH.  We are currently estimating new orders to ship 2-3 weeks after the order is placed.

$3,795.00

Free Shipping!

Overland 10 Cu. Ft. Electric Powered Wheelbarrow with Power Dump and Extended Range Battery

With 10 cubic foot of hauling space, this cart has plenty of room to get the job done. Haul mulch, dirt, stone, livestock feed or bedding. An ideal cart for the equine or livestock industry. This is a great cart to use outdoors, or even inside your barns! You can take this powered wheelbarrow places a large front end loader or tractor can’t go. All of our Powered Carts, Wheelbarrows and Wagons use a twist style throttle. They’re simple to operate and will cut down on your work time.

***For even more power, upgrade your cart to our 600 Series!  The 600 Series adds 50% more power (400W to 600W) and 50% more battery capacity (24 Amp Hr to 35 Amp Hr).***

**Overland Carts ship fully assembled via Freight Carrier/Common Carrier**
**Lift Gate service is required for MOST residential customers as it lowers the product to the ground**

Top Reasons to Buy an Overland

  • Easy to use – Power it on, twist the throttle and go.
  • Safe to Operate – Numerous safety features and a four wheel design set us apart.
  • Made in the USA – Quality you can feel. Manufacturing and support is all out of Archbold, OH.
  • All electric power – Zero emissions, zero fumes, and virtually no noise.
  • Minimal Maintenance – No oil filters, air filters, or gas to add. Just remember to plug it in.
  • All Day Battery – Operate the cart throughout the day on a single charge.
  • Massive Capacity – Load the cart up with 750 lbs of whatever you want.
  • Fully Assembled – All Overland Carts ship fully assembled.

Reviews and Blog Posts

Safety Features

  • SmoothStart – On acceleration, power is applied to the drive tires in a controlled manner ensuring a smooth start each time.
  • HillSense – Allows the cart to be safely used on inclines and declines.  The cart will travel at the speed set by the user, not by the incline or decline.
  • AutoLock – An automatic parking brake locks the wheels when the throttle is not being applied.  This feature prevents the cart from rolling away from the user and also provides easy loading and unloading on inclines and declines.
  • Emergency Stop – The red E-Stop button allows the user to immediately stop the progress of the cart.
  • Four Wheel Design – All Overland Carts have at least four wheels to provide maximum stability.
  • Overload Fuse – There is a built in overload fuse that measures the inputs of the drive system in real time.  If the incline, load, or terrain begins to overwork the motor, a fuse will stop the cart and prevent any damage to the transaxle.
  • Throttle Controlled Braking – The braking is controlled by the throttle, simply let up on the throttle and the cart will slow down to the desired speed.  To brake is automatically applied.
  • Throttle Defaults to Zero MPH – If the throttle is released for any reason, the throttle will automatically return to the zero MPH position and the cart will safely coast to a stop.  AutoLock will then engage and the cart will be secure.
  • No open gears, belts, or hot components – The design of the cart keeps hands safe and prevents possible burns caused by hot engine components.
  • Tested Over Time – Overland Cart has been developing and building carts for 10 years.  We know our carts and have developed them to be as safe as possible.

Additional Features

  • Heavy Duty POWER Dumping Hopper – Brentwood Buckets are the best in the wheelbarrow industry. Made in the USA from high density polyethylene.  Hopper dimensions: 20″H x 36″W x 45″L
  • Power Dump Feature – Uses an electric lifter to lift the load and safely dump the contents.
  • Enclosed gear box – Gears are enclosed for maximum safety and durability.
  • Automatic parking brake – prevents rolling on inclines and keeps the cart locked in while being loaded.
  • Rechargeable and Removable Battery Pack –  6-8 hours on a standard charge.
  • 110V off board charger – Charge the cart with an extension cord or plug it right in the wall.
  • Battery life indicator – LED lights ensure you always know the current battery status
  • Powder coated frame – The chassis is welded and powder coated in house for lasting finish
  • Heavy duty 13″ drive tires – Complete with a steel hub and heavy duty wheels.
  • No flat swivel tires – Foam filled heavy duty swivel wheels.
  • Variety of quick attach accessories – Overland carts are built to be user friendly, including the removal of different components.
  • Removable Rechargeable Battery Pack – Quickly swap batteries or remove the battery to charge it.
  • Patented Design – Our carts feature patented designs and components.  Ensuring top tier build quality and design on all genuine Overland Carts.

Overland Tire Options

  • 13″ Flat Free Dual Ag Tire – Features all the benefits of our pneumatic dual ag tire, but with the advantage of flat free construction. The semi-pneumatic tire features a thick molded outer core with a hollow center.  These tires does not require inflation and cannot be punctured. The width from the tires is measured as 33″ from tire edge to tire edge when mounted on the cart.

Overland Rechargeable Battery Information

Overland Limited Warranty

  • 1 year – Powertrain, Electronics and Hopper
  • 3 year – Chassis
  • Limited to manufacturing defects
  • For the full warranty – Overland Limited Warranty

Overland Powered Carts
Overland Carts is a part of the Granite Industries family.  All carts are manufactured by Granite Industries in Archbold, Ohio.
The Granite Online Store is the official online store for all Overland Cart products




Looking for a quantity discount or more options?




  • Motor: 1 x 24 Volt DC Permanent Magnet
  • Continuous Power: 1 x 400 watts (0.536HP) at 24V
  • Drive: Single Reduction Open Differential Transaxle
  • Gear Ratio: 18:01
  • Capacity Level Ground: 750 lbs (295 kgs)
  • Speed: 0 – 2.4 mph / (0 – 3.9kph), Variable
  • Static/Park Brake: Electromechanical, Fail Safe
  • Battery: Removable & Rechargable 24V 22AH Sealed Lead Acid
  • Controller Capacity: 90 Amps
  • Charger: off Board, 5 Amp
  • Operating Time: 6 – 8 Hours (Real World)
  • Unit Dimensions: 38″ H x 36″ W x 64″ L
  • Hopper dimensions: 20″H x 36″W x 45″L
  • Weight: 266 pounds
  • Patent Pending
  • View the full specification sheet: 70051 Spec Sheet

Have a question about the item?


Guest
Cait M
6 years 2 months ago

Which tires does this model come with?

Support
Jeremy Rupp
6 years 2 months ago

All Power Dump models come standard with Dual Ag drive tires. The rear tires are 10″ flat free tires mounted to a swivel caster.

Guest
Eddie
5 years 1 month ago

Is there a limit to making an uphill grade? I’ve got a large hillside garden that I would haul soil and compost up to.

Support
Jeremy Rupp
5 years 1 month ago

Hi Eddie, inclines are challenging to predict based on terrain, load and angle. We rate our carts at 750 pounds on flat surfaces and 500 pounds on a 1:3 incline which is equal to about 18 degrees. Every cart comes with an overload fuse that measures the carts performance in real time so if the transaxle is being overworked the fuse will pop and need to be reset. At that point you can adjust the load. I hope that helps!

Guest
Richarc
4 years 7 months ago

What is the ground clearance between the drive wheels?

Support
Jeremy Rupp
4 years 6 months ago

Hi Rich, the lowest point is the bottom of the transaxle which is 4 inches off the ground.

Guest
Adam
4 years 4 months ago

Do you offer an extended warranty? It’s an expensive item to be out of warranty after only one year.

Support
Jeremy Rupp
4 years 4 months ago

Hi Adam, unfortunately we do not offer an extended warranty at this time. As you have noted, the entire cart including all power components is under warranty for 1 year and the frame is under warranty for 3 years. We source the highest quality parts for our carts and do our best to offer extremely fair pricing, if there were to be a part that does fail for some reason. If you have any further questions regarding our components and reliability please feel free to contact us via email: support@graniteind.com or by phone: 877-447-2648.

Guest
Craig JS
4 years 3 months ago

In the video it shows the hopper bed being easily removed from the motorized frame. Do you have any other beds that can be installed on the frame? I am thinking it would be nice to have a flat bed that could be loaded with clay or stone pavers or bags of concrete . . .

Support
Jeremy Rupp
2 years 5 months ago

Hi Craig, unfortunately the hopper bed cannot be quick changed on the Overland Carts with power dump. The hoppers can only be quick changed on the carts with manual dump only: https://store.graniteind.com/product/overland-electric-powered-wheelbarrow-10-cu-ft-hopper. If you have any other questions, please let us know: 877-447-2648 or via email: support@graniteind.com

Guest
Merl
3 years 2 months ago

Can these units be stored in a cold barn in the winter? & How will that affect operation?

Support
Jeremy Rupp
3 years 24 days ago

Hi Merl, good questions! We have a whole list of FAQs here: https://www.overlandcarts.com/frequently-asked-questions-faqs/ but to answer your specific question. Our Overland Carts can be stored in a barn in the winter, but we recommend removing the battery pack and keeping it near room temperature. The batteries are AGM Sealed Lead Acid batteries which are designed for optimal performance even in harsh conditions, but the sustained cold will effect the battery life. If you intend to use the cart regularly through the winter, we would recommending purchasing a separate charger to charge the battery pack inside as well. If you have any other questions, please let us know: 877-447-2648 or via email: support@graniteind.com

Guest
Earl Gertsma
3 years 2 months ago

What is a lift gate delivery?

Support
Jeremy Rupp
3 years 23 days ago

Hi Earl, lift gate is a service provided by freight companies that lowers the pallet to the ground so it can be easily offloaded at a residence. Most freight carriers prefer to deliver to loading dock or to a place with a fork lift. Since many of our customers don’t have either of those, we offer free lift gate service so the customer can get the cart unloaded without issue. If you have any other questions, please let us know: 877-447-2648 or via email: support@graniteind.com

Guest
robin jason
1 year 1 month ago

What is the total weight with the 600W motor and 35AH battery ?
What is the weight of the battery and can they be easily purchased and installed up here in Canada ?
Does the upgrade change any of the dimensions of the unit itself ?
I work outside all the time doing garden landscape work; how will the unit hold up in damp or slightly rainy weather (no winter work)?
Thank you Jeremy, Robin

Guest
Kevin
11 months 22 hours ago

Need parts



Additional information

Weight 266 lbs
Tires

600 Series Upgrade

(+$400) 600W Motor + 35 Amp Hr Battery Pack, No 600 Series Upgrade
