Overland Electric Wheelbarrow – 10 cu. ft. with 4WD, Power Dump and Extended Range Battery

With 10 cubic foot of hauling space, this cart has plenty of room to get the job done.

All 4WD Wheelbarrows now come standard with a massive 35 Amp-Hr Battery Pack (an 67% increase from the previous 21 Amp Hr battery pack).

ESTIMATED SHIP DATE: Each cart is made to order in Archbold, OH.  Due to record setting demand and a critical component shortage on transaxles, we are currently expecting orders to ship about 14  weeks after the order is placed.


Free Shipping!

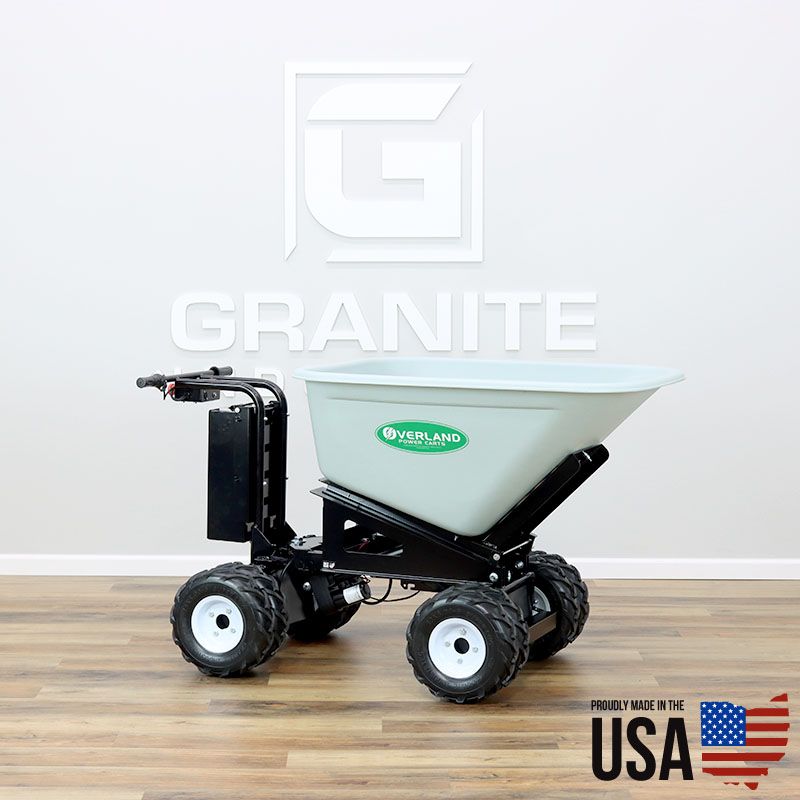

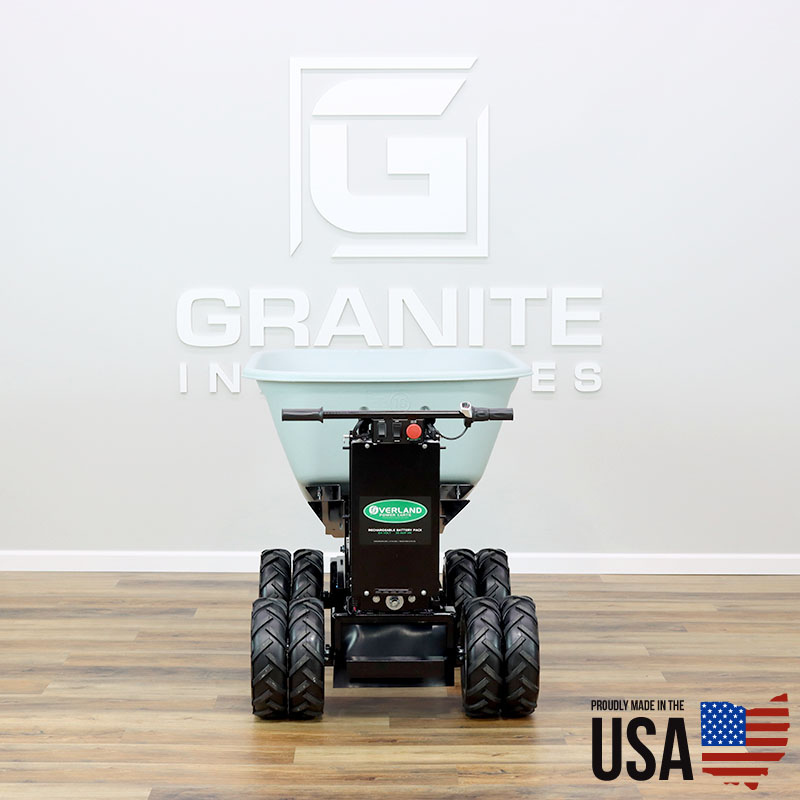

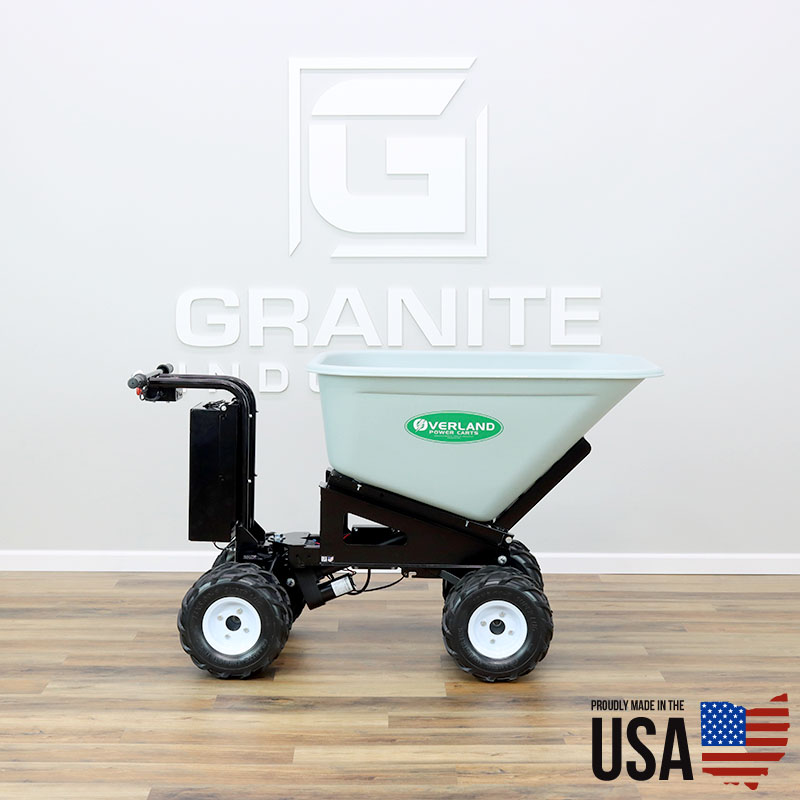

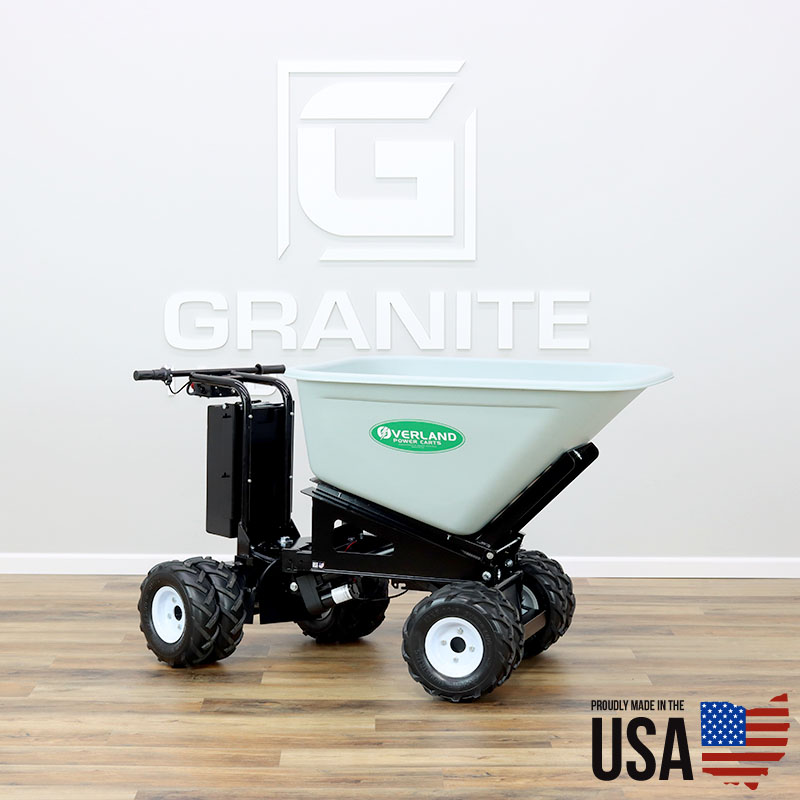

Overland 10 Cu. Ft. Electric Powered Wheelbarrow with 4 Wheel Drive, Power Dump and Extended Range Battery

With 10 cubic foot of hauling space, this cart has plenty of room to get the job done. Haul mulch, dirt, stone, livestock feed or bedding. An ideal cart for the equine or livestock industry. This is a great cart to use outdoors, or even inside your barns! You can take this powered wheelbarrow places a large front end loader or tractor can’t go. All of our Powered Carts, Wheelbarrows and Wagons use a twist style throttle. They’re simple to operate and will cut down on your work time.

All 4WD Wheelbarrows now come standard with a massive 35 Amp-Hr Battery Pack (an 67% increase from the previous 21 Amp Hr battery pack).

**Overland Carts ship fully assembled via Freight Carrier/Common Carrier**
**Lift Gate service is required for MOST residential customers as it lowers the product to the ground**

Top Reasons to Buy an Overland

  • Easy to use – Power it on, twist the throttle and go.
  • Safe to Operate – Numerous safety features and a four wheel design set us apart.
  • Made in the USA – Quality you can feel. Manufacturing and support is all out of Archbold, OH.
  • All electric power – Zero emissions, zero fumes, and virtually no noise.
  • Minimal Maintenance – No oil filters, air filters, or gas to add. Just remember to plug it in.
  • All Day Battery – Operate the cart throughout the day on a single charge.
  • Massive Capacity – Load the cart up with 750 lbs of whatever you want.
  • Fully Assembled – All Overland Carts ship fully assembled.

Reviews and Blog Posts

Safety Features

  • SmoothStart – On acceleration, power is applied to the drive tires in a controlled manner ensuring a smooth start each time.
  • HillSense – Allows the cart to be safely used on inclines and declines.  The cart will travel at the speed set by the user, not by the incline or decline.
  • AutoLock – An automatic parking brake locks the wheels when the throttle is not being applied.  This feature prevents the cart from rolling away from the user and also provides easy loading and unloading on inclines and declines.
  • Emergency Stop – The red E-Stop button allows the user to immediately stop the progress of the cart.
  • Four Wheel Design – All Overland Carts have at least four wheels to provide maximum stability.
  • Overload Fuse – There is a built in overload fuse that measures the inputs of the drive system in real time.  If the incline, load, or terrain begins to overwork the motor, a fuse will stop the cart and prevent any damage to the transaxle.
  • Throttle Controlled Braking – The braking is controlled by the throttle, simply let up on the throttle and the cart will slow down to the desired speed.  To brake is automatically applied.
  • Throttle Defaults to Zero MPH – If the throttle is released for any reason, the throttle will automatically return to the zero MPH position and the cart will safely coast to a stop.  AutoLock will then engage and the cart will be secure.
  • No open gears, belts, or hot components – The design of the cart keeps hands safe and prevents possible burns caused by hot engine components.
  • Tested Over Time – Overland Cart has been developing and building carts for 10 years.  We know our carts and have developed them to be as safe as possible.

Additional Features

  • Heavy Duty POWER Dumping Hopper – Brentwood Buckets are the best in the wheelbarrow industry. Made in the USA from high density polyethylene. Hopper dimensions: 20″H x 36″W x 45″L

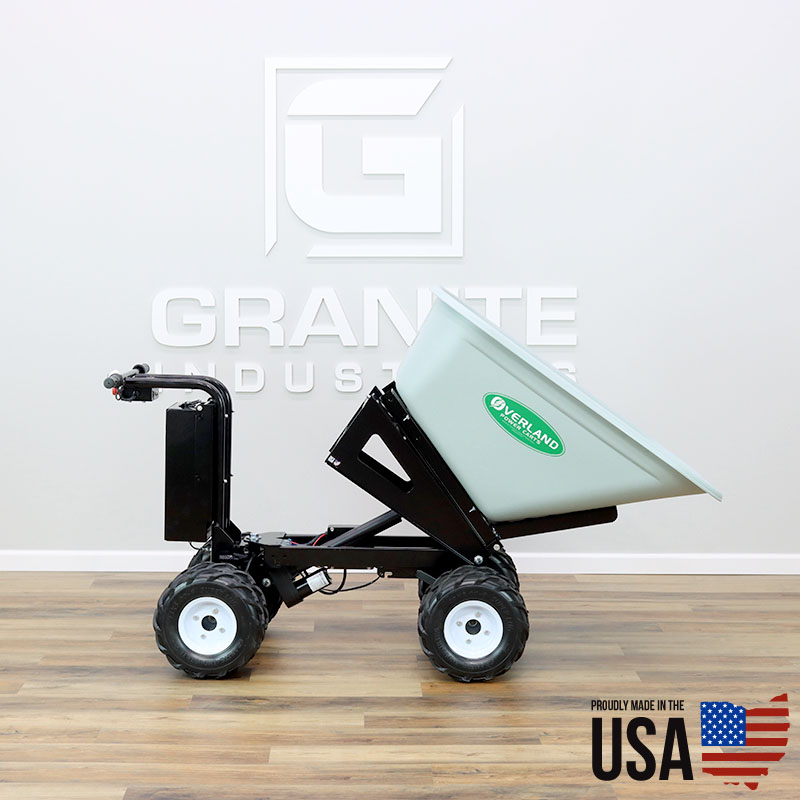

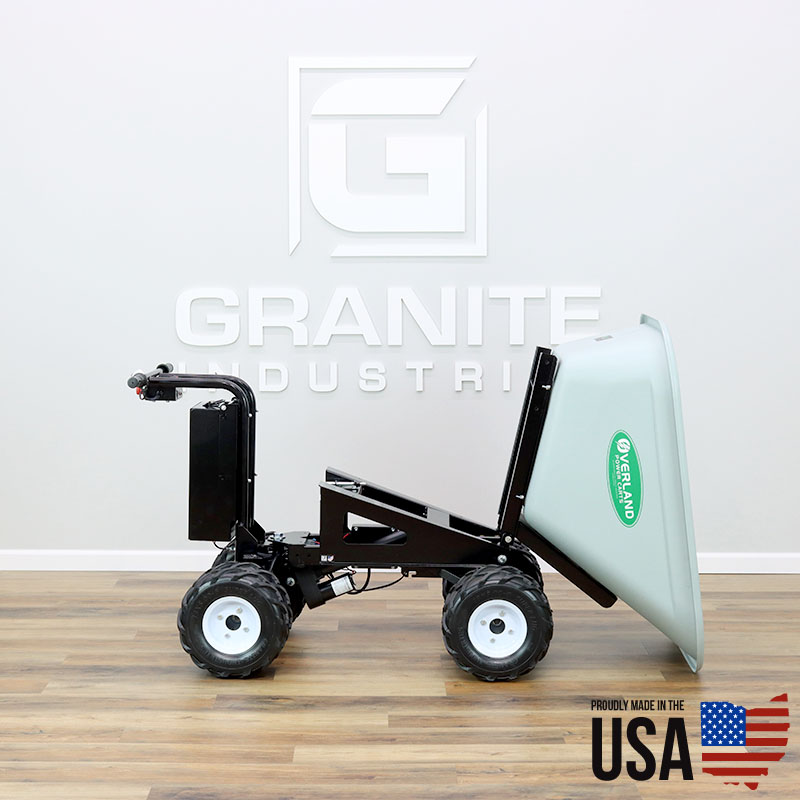

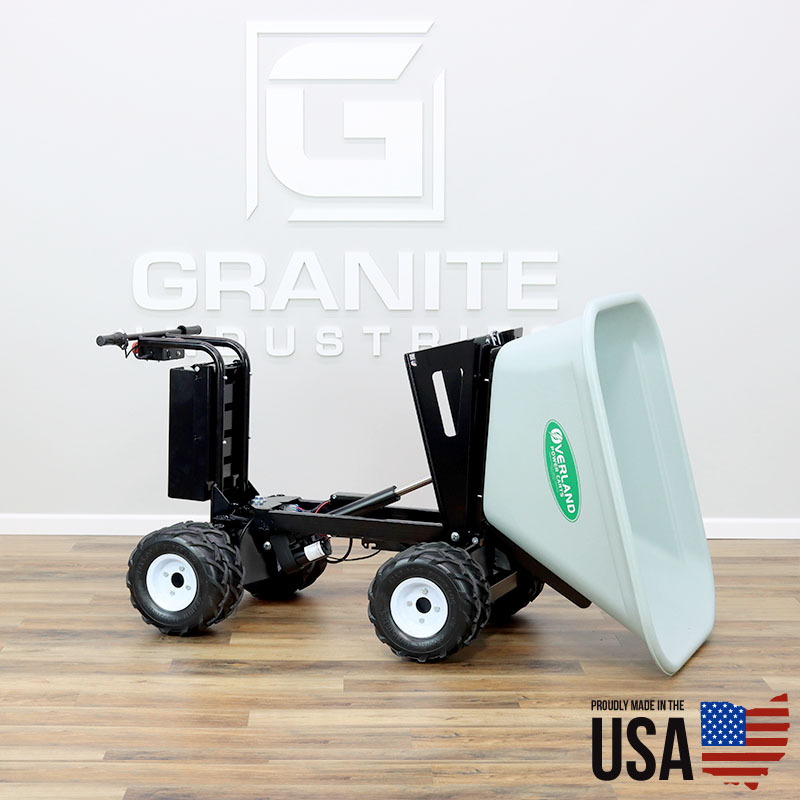

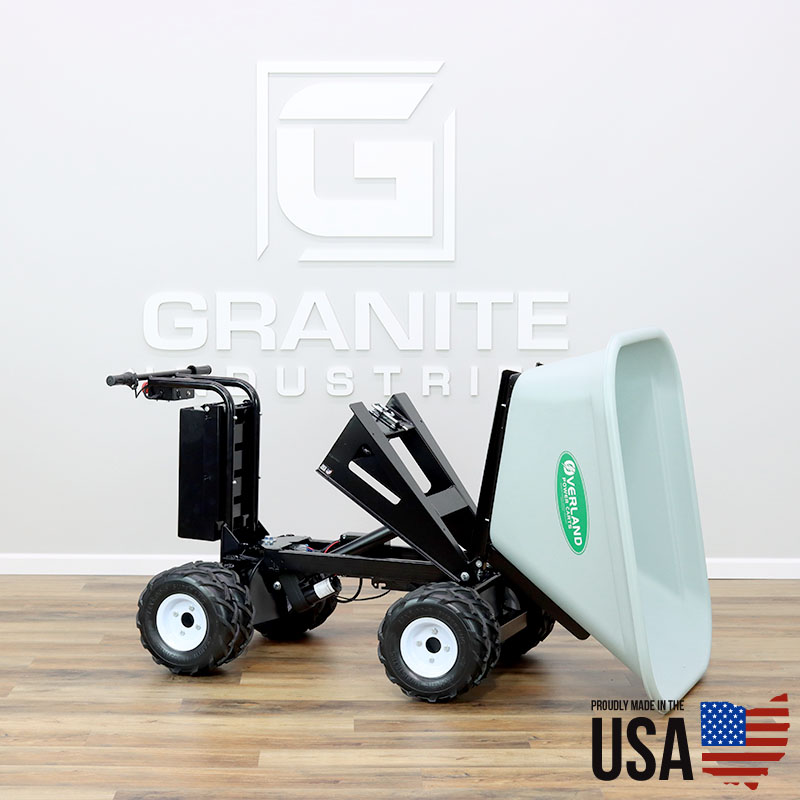

  • Power Dump Feature – Uses an electric lifter to lift the load and safely dump the contents

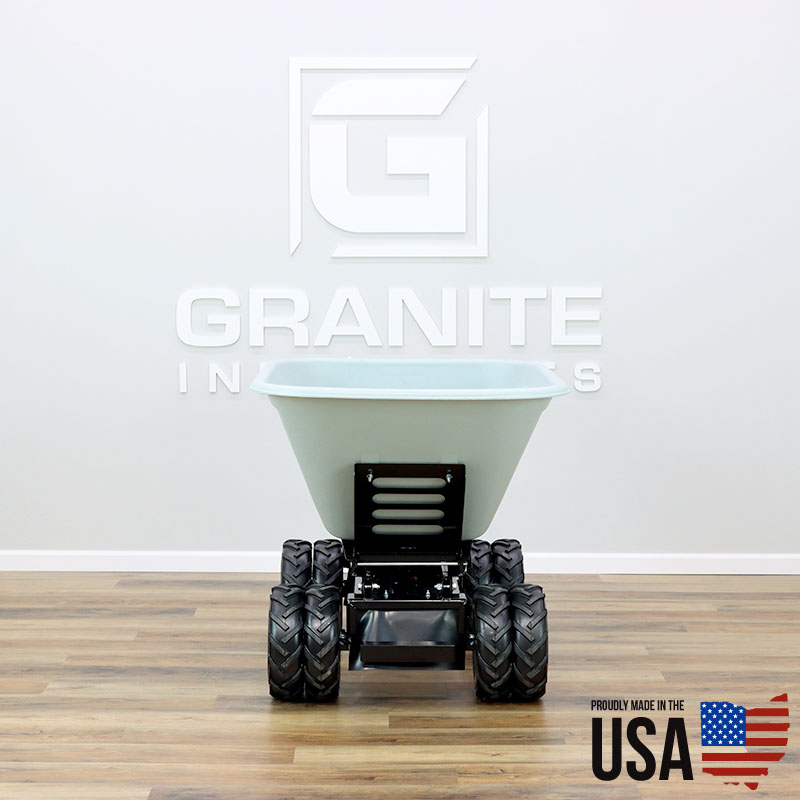

  • Four Wheel Drive – Dual drive axles, and dual ag tires on the front and rear provide exceptional grip.
  • Easy Start – Simply pull out the red E-stop button on the handle and the cart is immediately ready to drive.
  • Variable Speed Twist Throttle – Similar to a motorcycle throttle.  Very easy to use and to control the speed.
  • Enclosed Gear Box – Gears are enclosed for maximum safety and durability.  The transaxle is sealed for life and does not require any maintenance.
  • Manual Mode – Allows the cart to be operated without battery power.

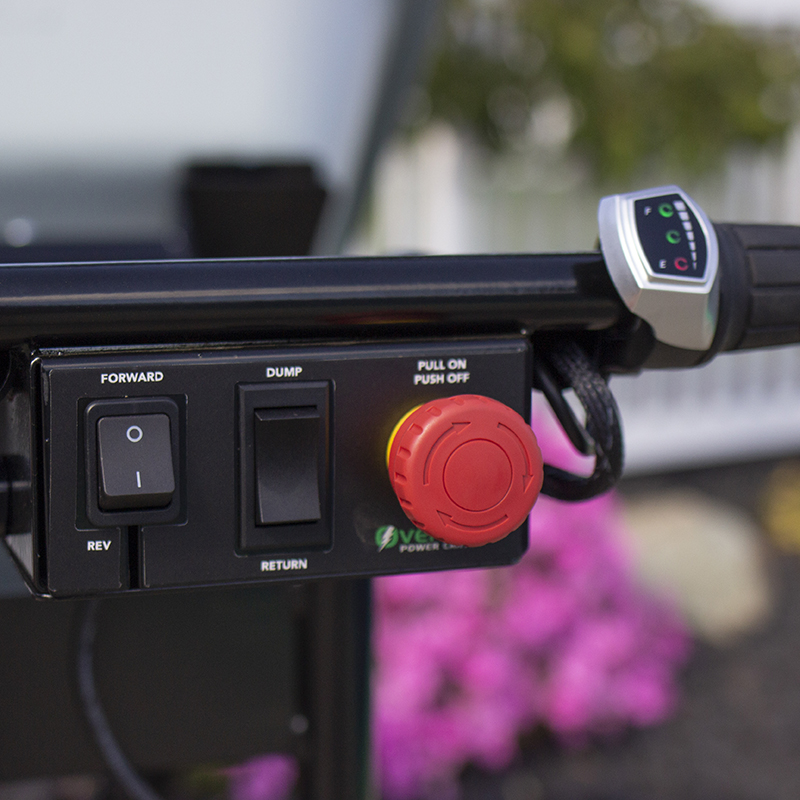

  • Forward/Reverse – Direction can be selected from the toggle switch on the handlebar.  The cart travels the same speed in either direction.
  • Zero Turn Radius – The open differential allows the cart to be spun in a circle without power being applied, allowing for a true zero turn radius.
  • Near Silent Operation – The electric drive system is almost silent in its operation.
  • IMPROVED Battery Life – 6-8 hours of run time on a standard battery.
  • 110V Off Board Charger – Charge the cart with an extension cord or plug it right in the wall.
  • Battery Life Indicator – LED lights ensure you always know the current battery status
  • Powder Coated Frame – The chassis is welded and powder coated in house for lasting finish
  • Heavy Duty 13″ Drive Tires – Complete with a steel hub and heavy duty wheels.
  • Rechargeable AGM Sealed Lead Acid Batteries – Absorbent Glass Mat (AGM) batteries are the most advanced batteries on the market and offer a spill-proof design.
  • Removable Rechargeable Battery Pack – Quickly swap batteries or remove the battery to charge it.
  • Patented Design – Our carts feature patented designs and components.  Ensuring top tier build quality and design on all genuine Overland Carts.

Overland Tire Options

  • 13″ Flat Free Dual Ag Tires – Our best performing and most popular tire. The dual ag design works well for all applications, especially where maximum traction is desired.  The semi-pneumatic tire features a thick molded outer core with a hollow center.  The tires do not require inflation and cannot be punctured. The width from the tires is measured as 33″ from tire edge to tire edge when mounted on the cart.

Overland Limited Warranty

  • 1 year – Powertrain, Electronics and Hopper
  • 3 year – Chassis
  • Limited to manufacturing defects
  • For the full warranty – Overland Limited Warranty

Overland Powered Carts
Overland Carts is a part of the Granite Industries family.  All carts are manufactured by Granite Industries in Archbold, Ohio.
The Granite Online Store is the official online store for all Overland Cart products


Looking for a quantity discount or more options?


    • Motor: TWO 24 Volt DC Permanent Magnet Motor
    • Drive: Single Reduction Open Differential Transaxle
    • Capacity Level Ground: 750 lbs (295 kgs)
    • Speed: 0 – 3.2 mph / (0 – 5.2 kph), Variable
    • Static/Park Brake: Electromechanical, Fail Safe
    • Battery: Removable & Rechargeable 24V 35AH Sealed Lead Acid
    • Charger: Off Board, 5 Amp
    • Operating Time: 6 – 8 Hours (Real World Testing)
    • Unit Dimensions: 38″ H x 36″ W x 64″ L
    • Hopper dimensions: 20″H x 36″W x 45″L
    • Hopper Capacity: 10 cubic feet
    • Weight: 344 pounds
    • Patent Pending

Have a question about the item?

Fred Supnet
3 years 5 months ago

How steep of an incline will it climb with its full weight rated capacity?

Jeremy Rupp
3 years 4 months ago

Hi Fred, inclines are challenging to predict based on terrain, load and angle. We rate our carts at 750 pounds on flat surfaces and 500 pounds on a 1:3 incline which is equal to about 18 degrees. Every cart comes with an overload fuse that measures the carts performance in real time so if the transaxle is being overworked the fuse will pop and need to be reset. At that point you can adjust the load. This video highlights our 4WD cart: Hope that helps!

Jules Durant
3 years 1 month ago

Hello Fred, We work 10 days. Is it possible to have additional batteries recharging to that the electric wheelbarrows can be used for all 10 hours by replacing the batteries?

Jeremy Rupp
3 years 1 month ago

Hi Jules, great question! Yes we do offer battery packs and chargers that can be purchased separately. The battery packs can be charged and quickly installed using the quick release pin system that is standard on all Overland wheelbarrow battery packs.
Here’s a link to the 21A battery pack:
Here’s a link to the 5A charger:

2 years 4 months ago

Does this have power steering for when it has a heavy load or is it easy to steer.

Jeremy Rupp
2 years 4 months ago

Hi Robert, the 4WD does not come with power steering but it is quite maneuverable even under heavy loads. The rear drive transaxle helps to propel the unit forward and we have a heavy duty steering bushing that helps with turning. If you have any other questions please let us know: 877-447-2648 or email:

2 years 15 days ago

Hi just wondering what this would cost to get to New Zealand

Jeremy Rupp
1 year 11 months ago

Hi Mike, unfortunately we are not shipping our carts to New Zealand at this time.

1 year 11 months ago

I like the four-wheel-drive my question is if I can use a flat surface

Jeremy Rupp
1 year 11 months ago

Hi Sergio, yes our 4WD works great on flat surfaces.

Dennis Wilken
1 year 5 months ago

Please verify the weight as 344 lbs

Jeremy Rupp
1 year 4 months ago

Hi Dennis, I’m confirming that the weight on PN: 70173 is 344 lb. If you have any additional questions, feel free to contact us at: 877-447-2648 or
