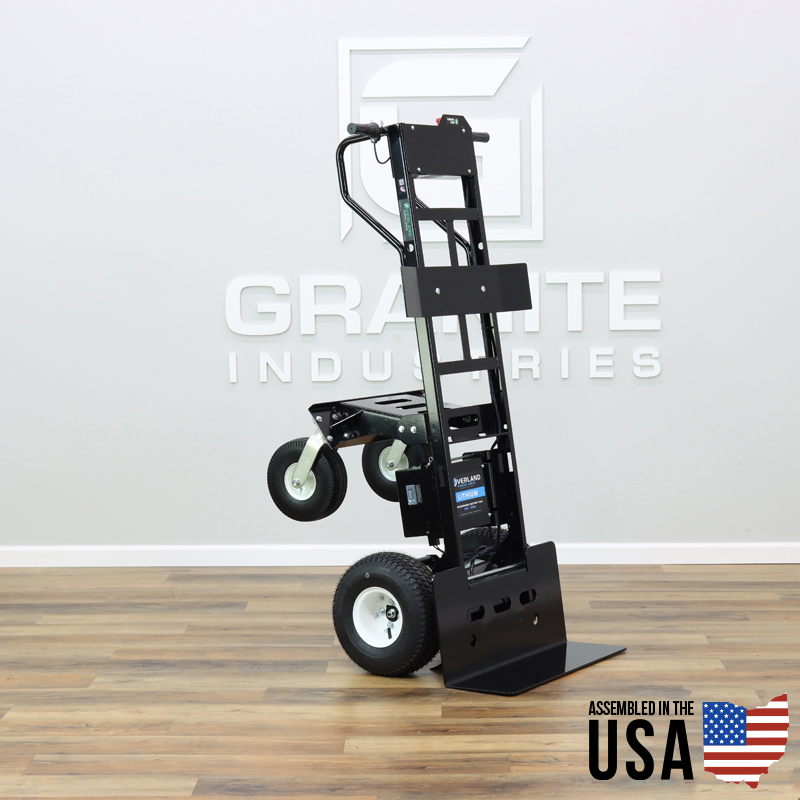

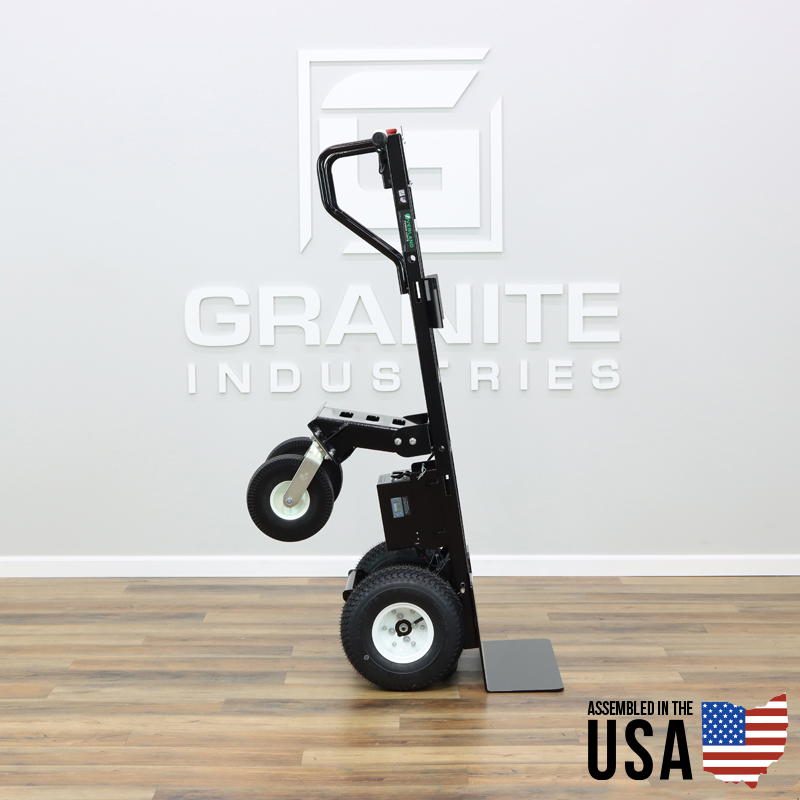

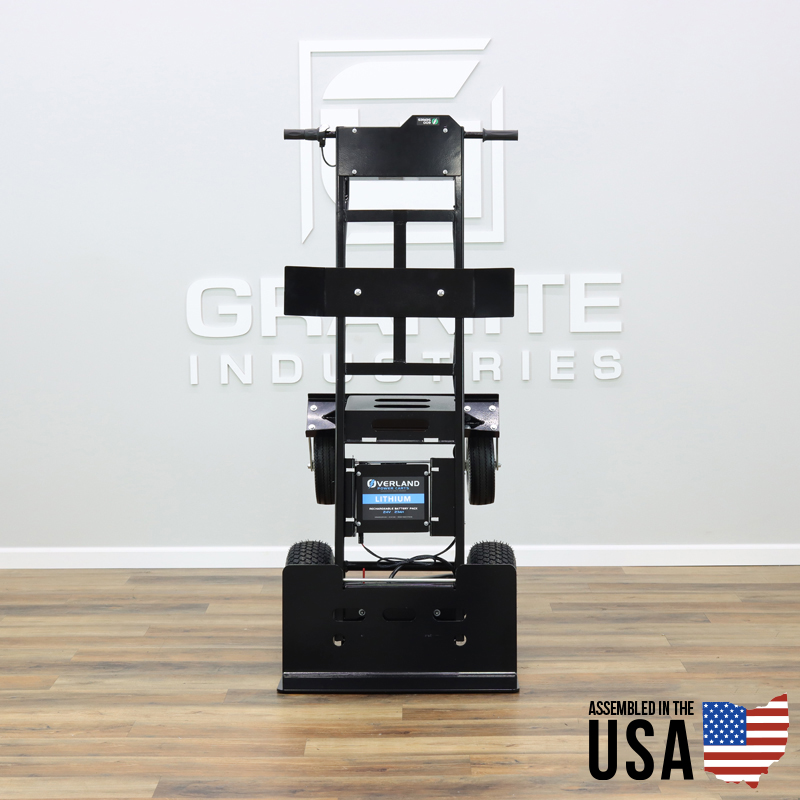

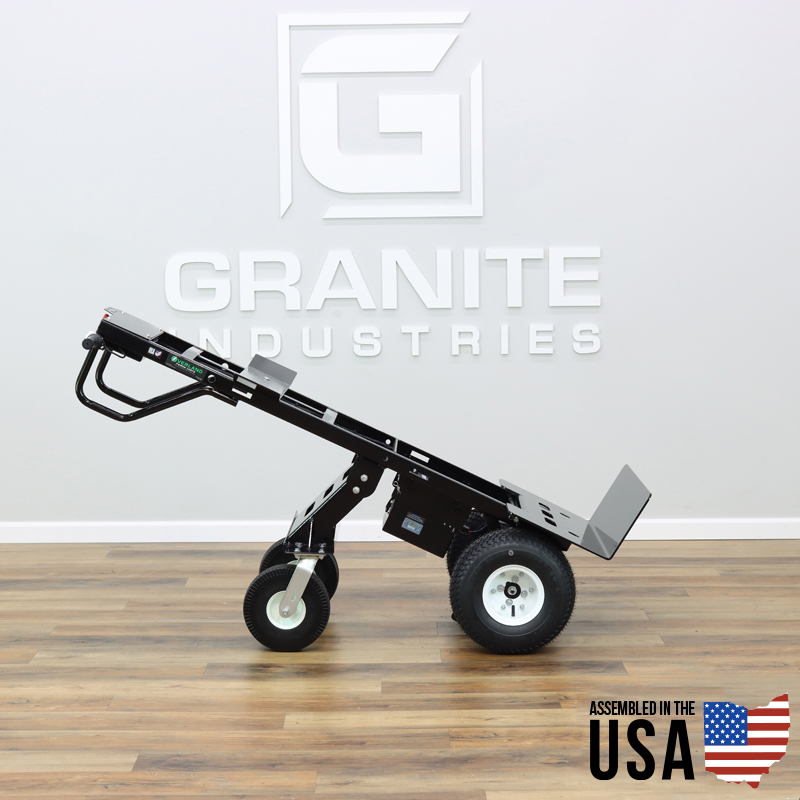

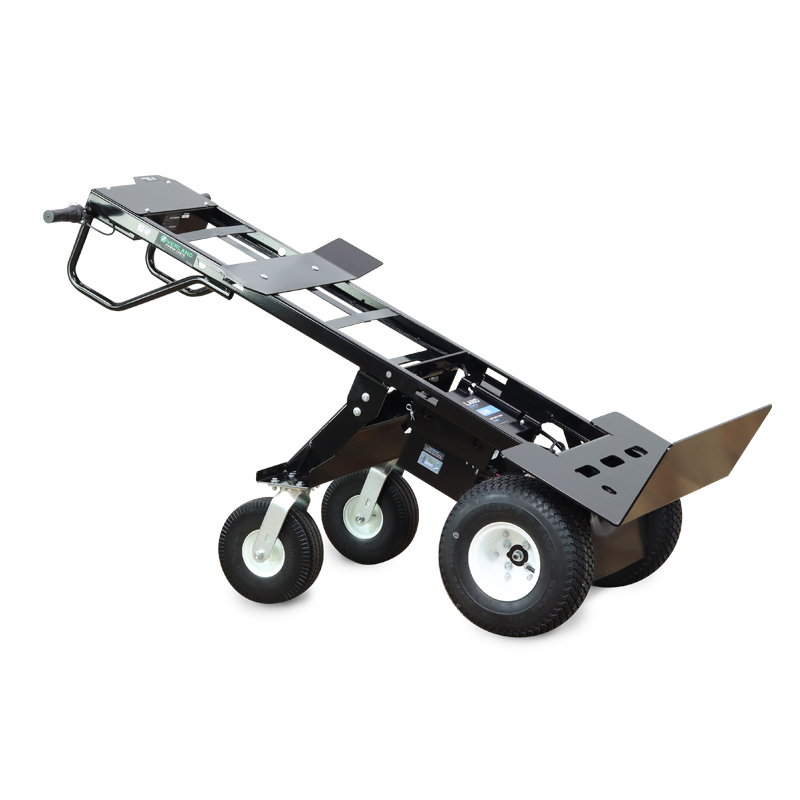

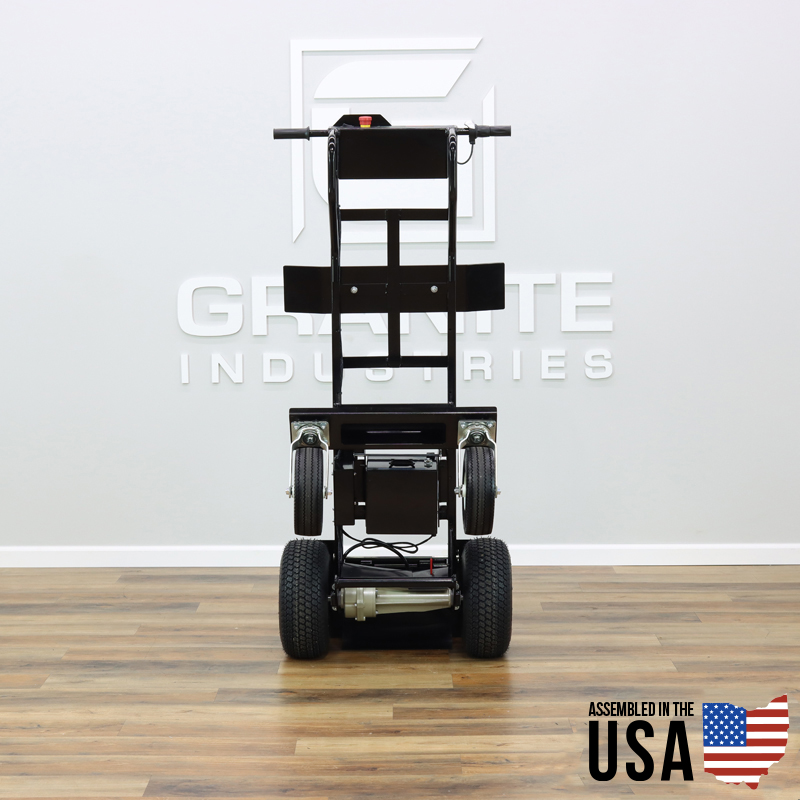

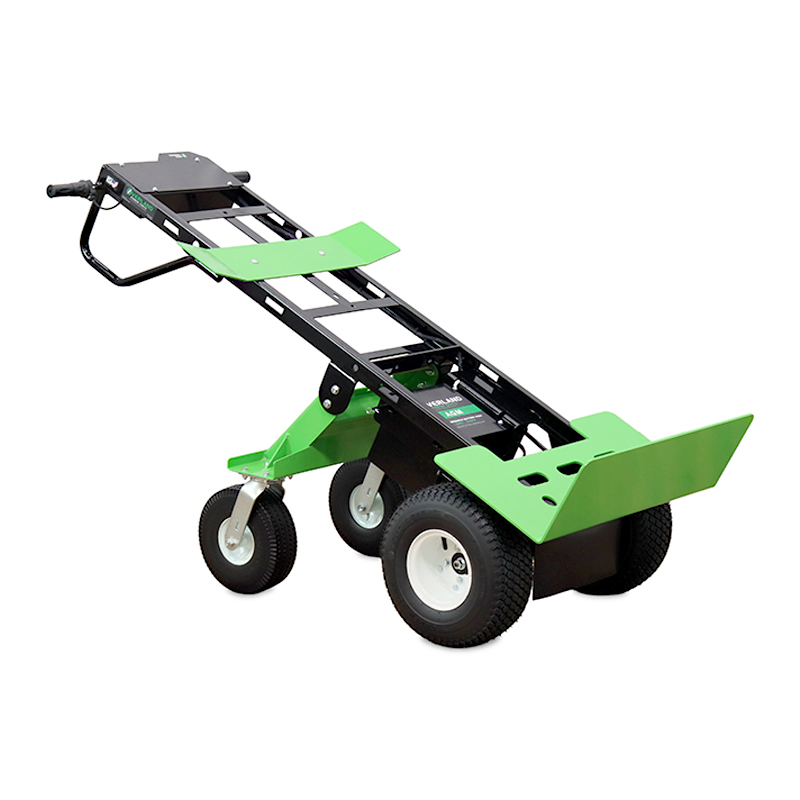

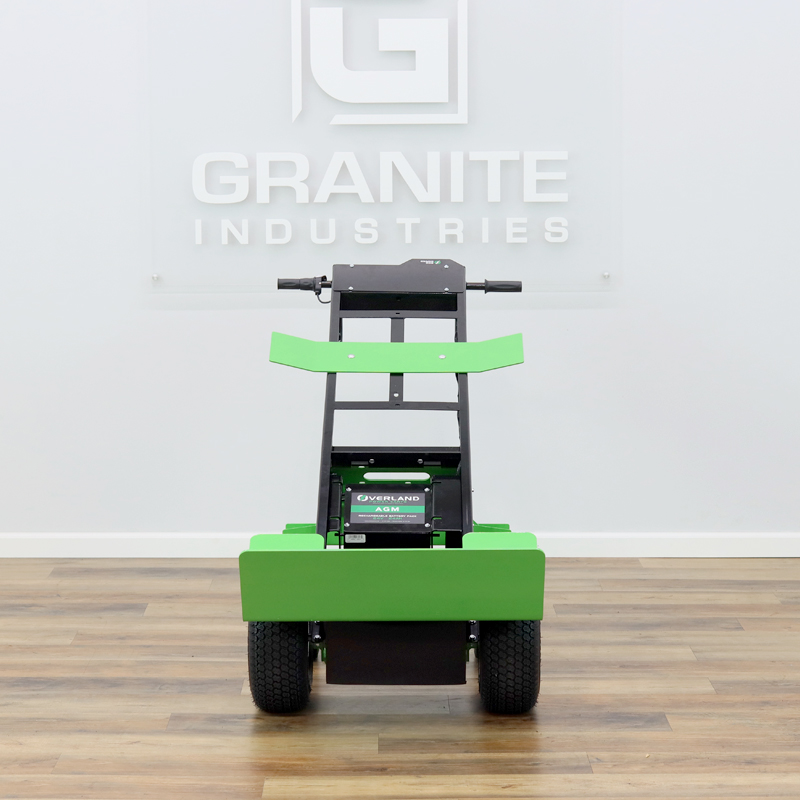

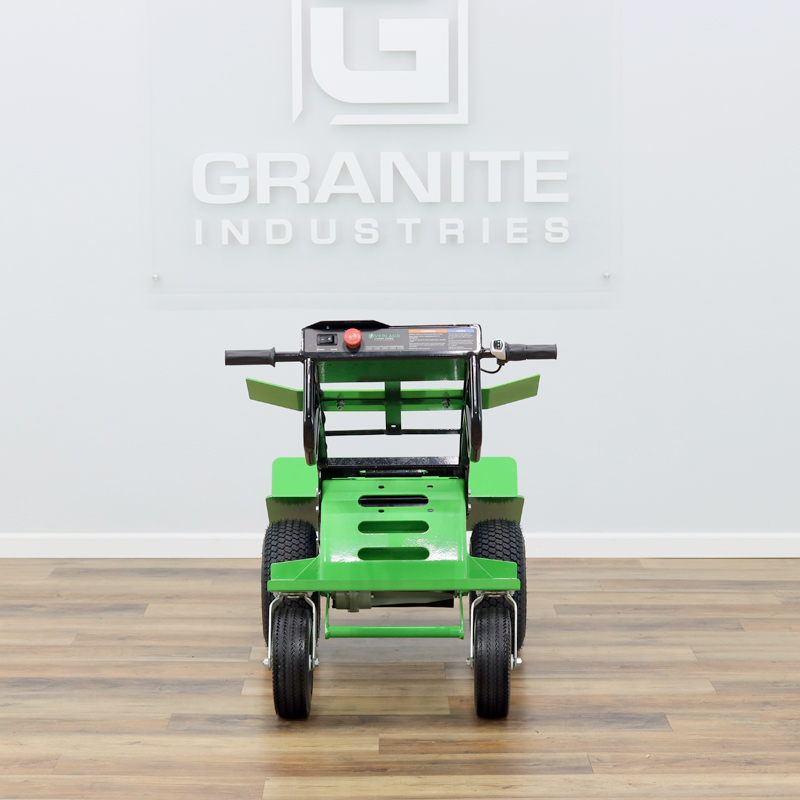

Overland Electric Powered Transformer Hand Truck with Foot Plate

The Transformer Hand Truck from Overland Carts changes the way companies operate.  Built on the powerful electric drive system found in all Overland Carts, this hand truck is capable of handling up to 750 pounds.

New 600W motor and 24 AMP Hr AGM Battery Pack now come standard on electric powered Transformers.

ESTIMATED SHIP DATE: Each cart is made to order in Archbold, OH.  We are currently estimating new orders to ship about 1 week after the order is placed.

$3,295.00

Free Shipping!

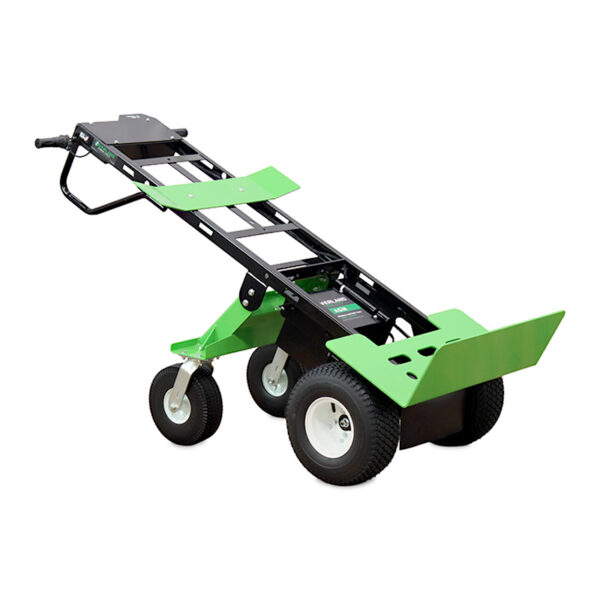

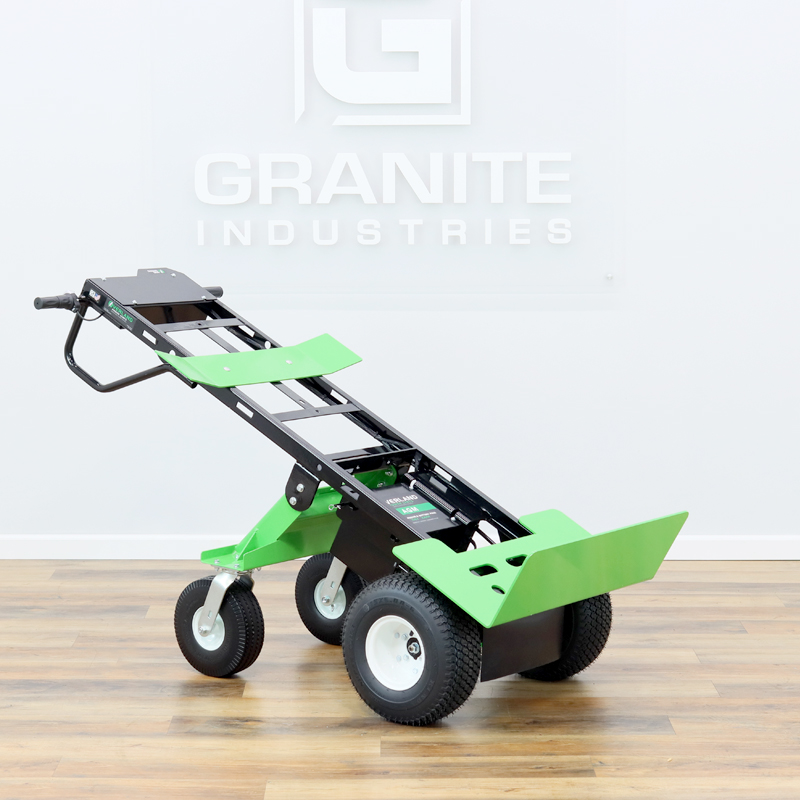

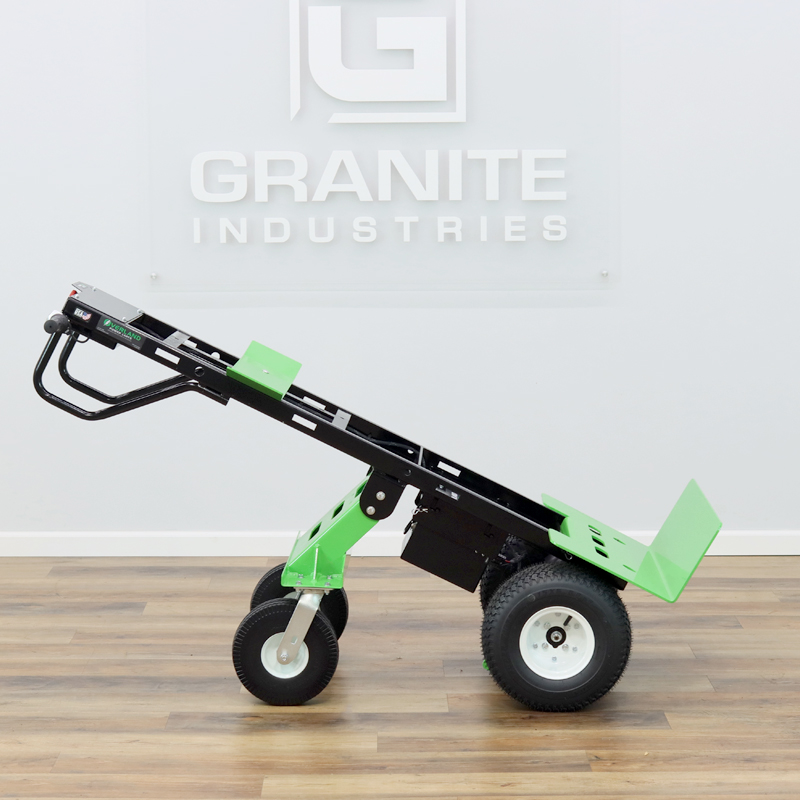

Overland Electric Powered Transformer Hand Truck with Foot Plate

The Transformer Hand Truck from Overland Carts changes the way companies operate.  Built on the powerful electric drive system found in all Overland Carts, this hand truck is capable of handling up to 750 pounds.

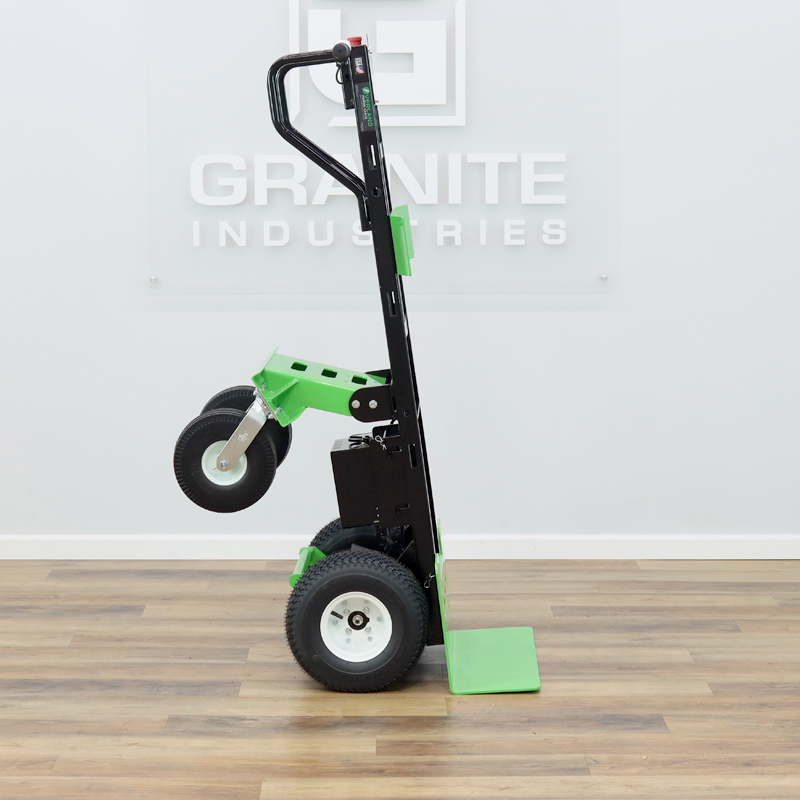

Unique to this cart is the built in versatility.  The cart has multiple attachments that can be added or removed quickly and easily via one pin.   Each cart runs on a 24AH AGM rechargeable battery pack that is capable of providing power for daily use (6-8 hours).

Available attachments include:

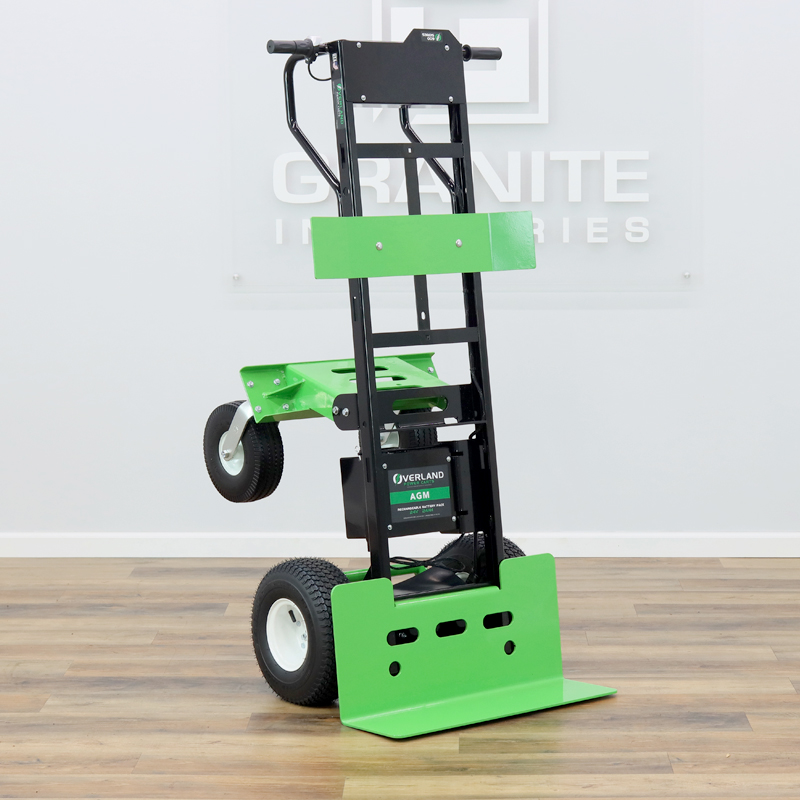

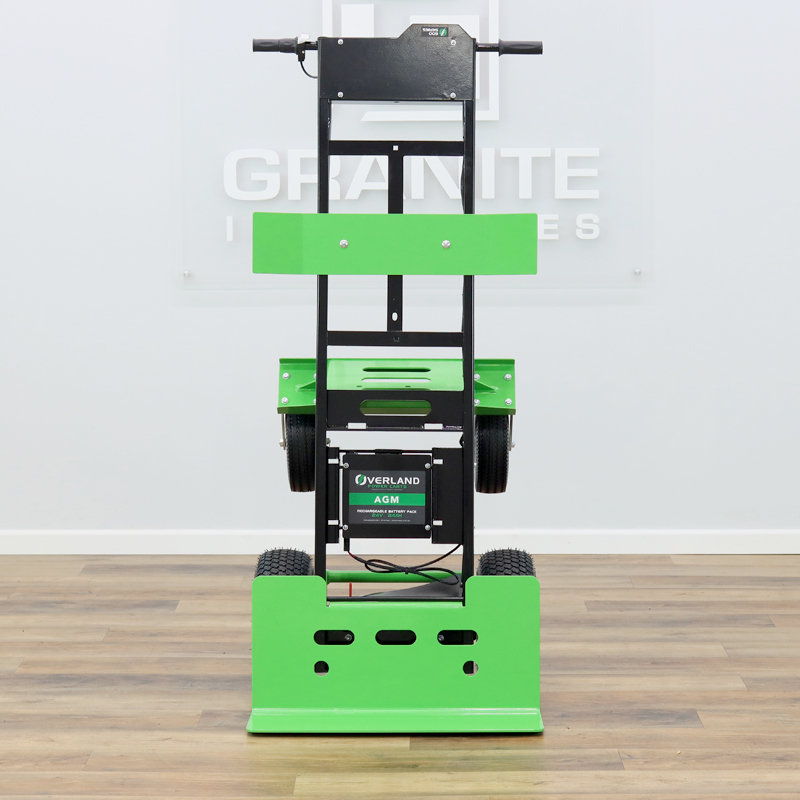

  • Hand Truck Attachment – Comes standard with Transformer Hand Truck. Designed for general use. Footplate Dimensions: 9″D x 20″L

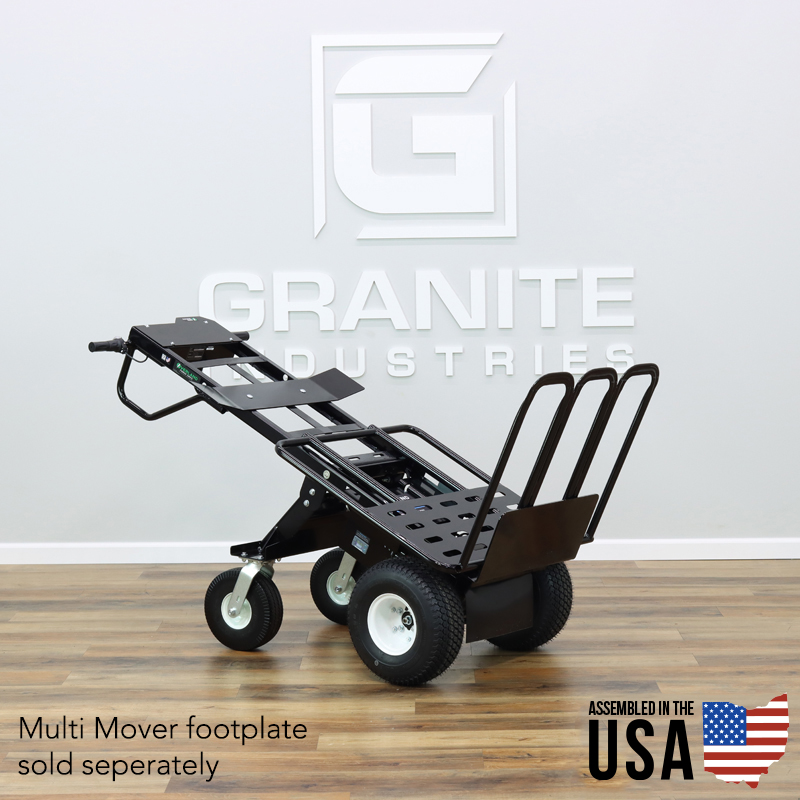

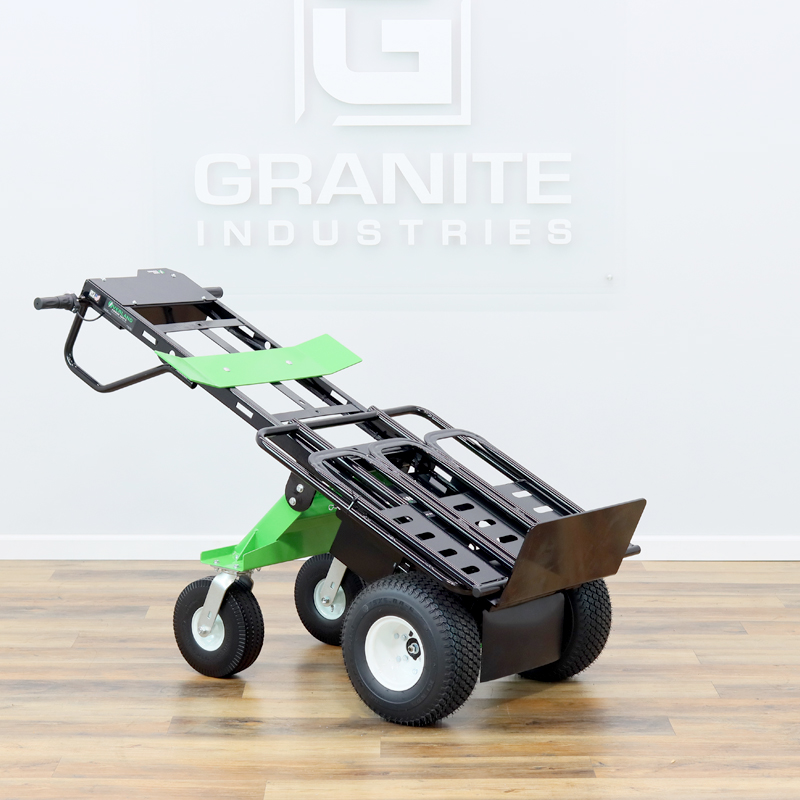

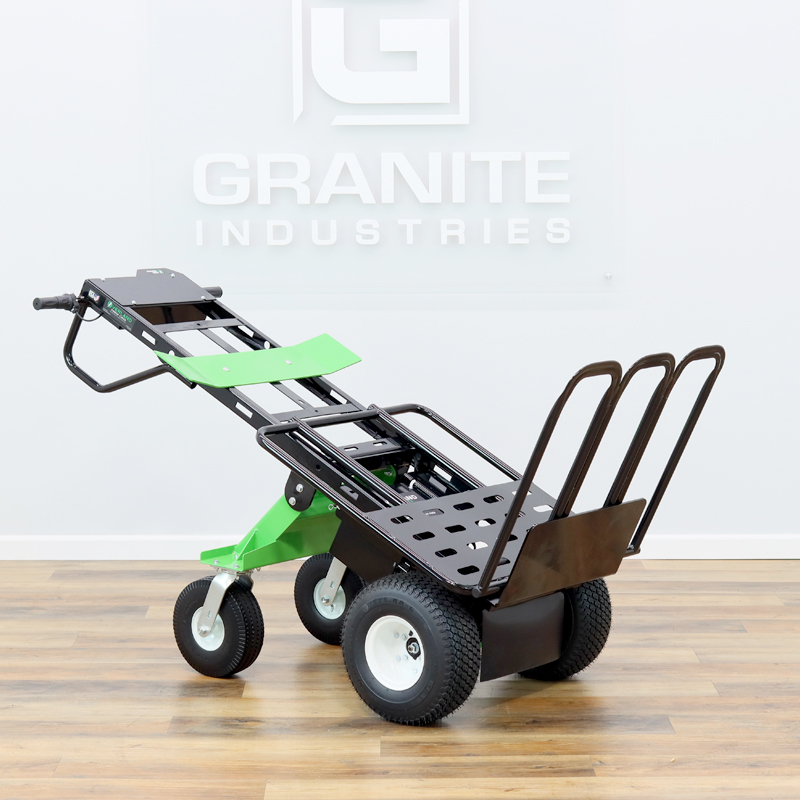

  • Multi Mover Attachment (70197) – Designed for oversized loads.  Base Plate measures 27″W  x 25″ L – LINK

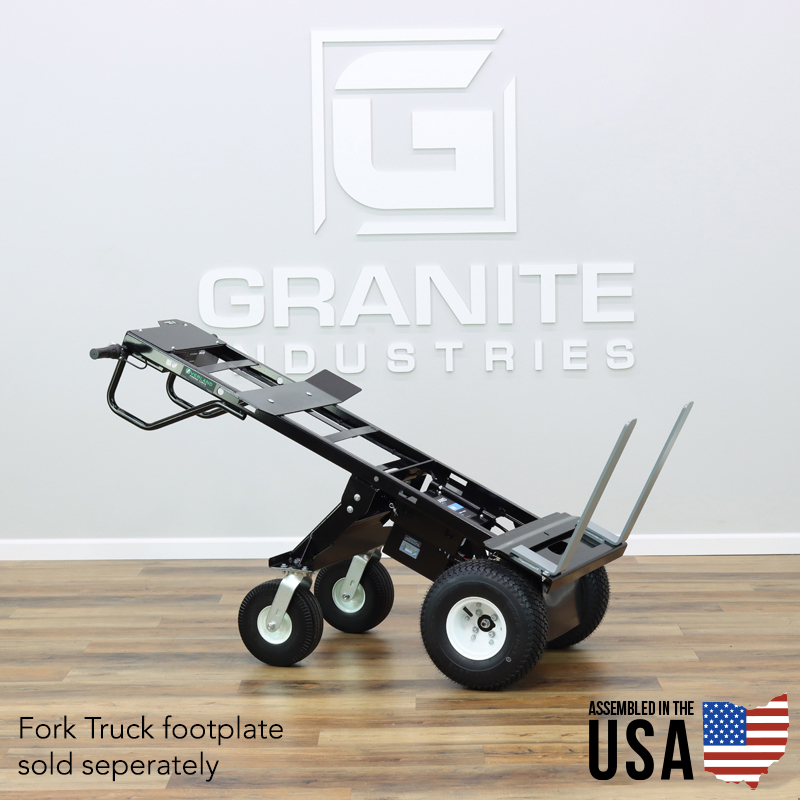

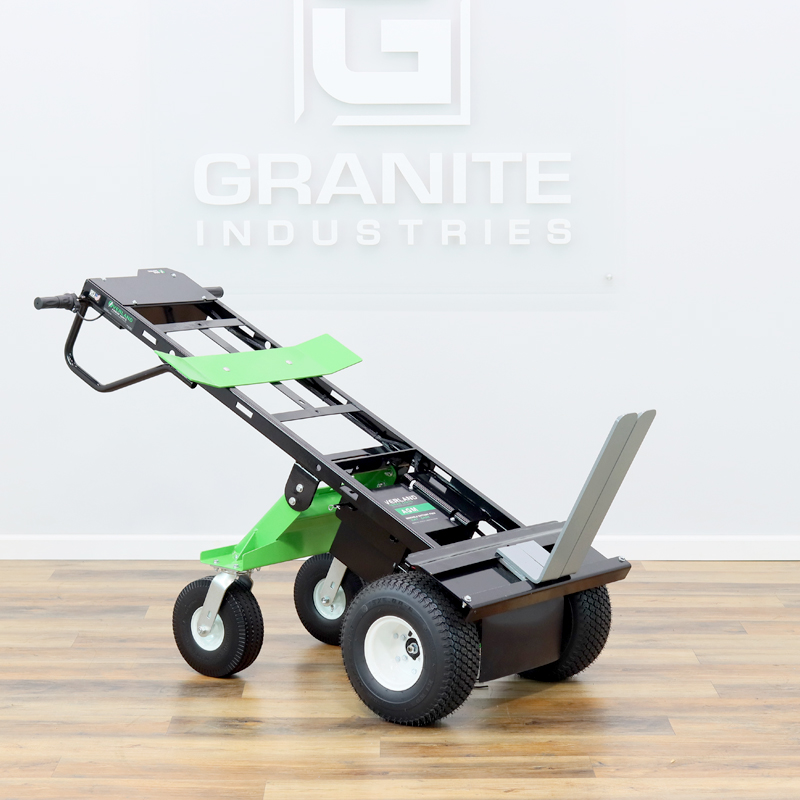

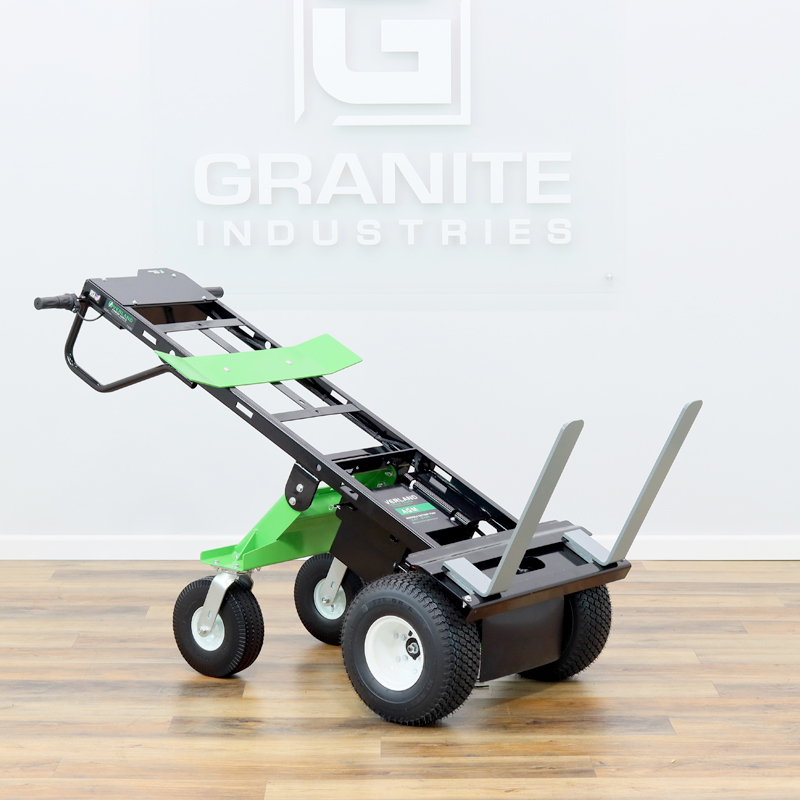

  • Dual Fork Attachment (70196) – forks separate up to 18″ edge to edge – LINK


**Overland Carts ship fully assembled via Freight Carrier/Common Carrier**
**Lift Gate service is required for MOST residential customers as it lowers the product to the ground**

Power Hand Truck Comparison
Transformer 600 Series – Features a 24V 600W direct drive motor & a 24AH AGM Battery Pack. Recommended capacity: 600 lb | Max capacity: 750 lb.
Multi Mover XT 600 Series Features a 24V 600W direct drive motor & a 24AH AGM Battery Pack. Recommended capacity: 600 lb | Max capacity: 750 lb.
Mega Herc 1400 SeriesFeatures a 36V 1400W direct drive motor & a 24AH AGM Battery Pack. Recommended capacity: 1200 lb. Max capacity: 1200 lb. VIDEO
Watch our incline comparison video – Power Hand Truck Incline Comparison Video

Top Reasons to Buy an Overland

  • Easy to use – Power it on, twist the throttle and go.
  • Safe to Operate – Numerous safety features and a four wheel design set us apart.
  • Made in the USA – Quality you can feel. Manufacturing and support is all out of Archbold, OH.
  • All electric power – Zero emissions, zero fumes, and virtually no noise.
  • Minimal Maintenance – No oil filters, air filters, or gas to add. Just remember to plug it in.
  • All Day Battery – Operate the cart throughout the day on a single charge.
  • Massive Capacity – Load the cart up with 750 lbs of whatever you want.
  • Fully Assembled – All Overland Carts ship fully assembled.

Reviews and Blog Posts

Safety Features

  • SmoothStart – On acceleration, power is applied to the drive tires in a controlled manner ensuring a smooth start each time.
  • HillSense – Allows the cart to be safely used on inclines and declines.  The cart will travel at the speed set by the user, not by the incline or decline.
  • AutoLock – An automatic parking brake locks the wheels when the throttle is not being applied.  This feature prevents the cart from rolling away from the user and also provides easy loading and unloading on inclines and declines.
  • Emergency Stop – The red E-Stop button allows the user to immediately stop the progress of the cart.
  • Four Wheel Design – All Overland Carts have at least four wheels to provide maximum stability.
  • Overload Fuse – There is a built in overload fuse that measures the inputs of the drive system in real time.  If the incline, load, or terrain begins to overwork the motor, a fuse will stop the cart and prevent any damage to the transaxle.
  • Throttle Controlled Braking – The braking is controlled by the throttle, simply let up on the throttle and the cart will slow down to the desired speed.  To brake is automatically applied.
  • Throttle Defaults to Zero MPH – If the throttle is released for any reason, the throttle will automatically return to the zero MPH position and the cart will safely coast to a stop.  AutoLock will then engage and the cart will be secure.
  • No open gears, belts, or hot components – The design of the cart keeps hands safe and prevents possible burns caused by hot engine components.
  • Tested Over Time – Overland Cart has been developing and building carts for 10 years.  We know our carts and have developed them to be as safe as possible.

Additional Features

  • Heavy Duty Attachments – Add attachments as need.  Each attachment is capable of holding 750 pounds.
  • Tool less Removal – Each attachment locks in place with a quick release pin.
  • Easy Start – Simply pull out the red E-stop button on the handle and the cart is immediately ready to drive.
  • Variable Speed Twist Throttle – Similar to a motorcycle throttle.  Very easy to use and to control the speed.
  • Enclosed Gear Box – Gears are enclosed for maximum safety and durability.  The transaxle is sealed for life and does not require any maintenance.
  • Manual Mode – Allows the cart to be operated without battery power.
  • Forward/Reverse – Direction can be selected from the toggle switch on the handlebar.  The cart travels the same speed in either direction.
  • Zero Turn Radius – The open differential allows the cart to be spun in a circle without power being applied, allowing for a true zero turn radius.
  • Near Silent Operation – The electric drive system is almost silent in its operation.
  • IMPROVED Battery Life – 6-8 hours of run time on a standard battery.
  • 110V Off Board Charger – Charge the cart with an extension cord or plug it right in the wall.
  • Battery Life Indicator – LED lights ensure you always know the current battery status
  • Powder Coated Frame – The chassis is welded and powder coated in house for lasting finish
  • Heavy Duty 15″ Drive Tires – Complete with a steel hub and heavy duty wheels.
  • 10″ Rear No Flat Swivel Casters – Foam filled heavy duty swivel wheels.
  • Rechargeable AGM Sealed Lead Acid Batteries – AGM batteries are the most advanced batteries on the market and are both powerful and long lasting.
  • Removable Rechargeable Battery Pack – Quickly swap batteries or remove the battery to charge it.
  • Patented Design – Our carts feature patented designs and components.  Ensuring top tier build quality and design on all genuine Overland Carts.

Transformer Tire Options

  • 15″ Turf Tire – Standard on all Transformer Hand Trucks.  Performs well on a variety of surfaces, especially flat surfaces. The hand truck width is is 24″ from tire edge to tire edge..

Overland Limited Warranty

  • 1 year – Powertrain and Electronics
  • 1 year – Chassis
  • Limited to manufacturing defects

Overland Powered Carts
Overland Carts is a part of the Granite Industries family.  All carts are manufactured by Granite Industries in Archbold, Ohio.
The Granite Online Store is the official online store for all Overland Cart products




Looking for a quantity discount or more options?







  • Motor: 24V 600W direct drive motor
  • Drive: Single Reduction Open Differential Transaxle
  • Gear Ratio: 18:01
  • Capacity Level Ground: 750 lbs (295 kgs)
  • Speed: 0 – 3.2 mph / (0 – 5.2 kph), Variable
  • Static/Park Brake: Electromechanical, Fail Safe
  • Battery: 24V 24 amp hr (AGM) rechargeable battery pack
  • Charger: 5 amp hr off board charger with battery management system
  • Operating Time: 6 – 8 Hours (Real World)
  • Unit Dimensions: 66”L x 40”H x 28”W
  • Weight: 212 pounds
  • Footplate Dimensions: 9″D x 20″L
  • Patent Pending

Have a question about the item?


Guest
Dustin
5 years 5 months ago

Does it come with flat forks to accommodate plastic mini pallets? Warranty. ?

Support
Jeremy Rupp
5 years 5 months ago

Hi Dustin, here is a link to our flat fork attachment for the Transformer: https://store.graniteind.com/product/overland-fork-truck-attachment-transformer. The warranty is as follows: 1 year – Powertrain and Electronics. 3 year – Steel Chassis

Guest
Danny
5 years 5 months ago

How wide is it from the outside of one tire to the outside of the other, I know the specification said 28″ wide, but in the picture looks like the handles are wider than the wheels, the ramp on my truck is 26″ wide.

Support
Jeremy Rupp
5 years 4 months ago

Hi Danny, the tires and the handles are the same width. The handles are 28″ wide and the tires are 28″ wide from tire edge to tire edge. Each tire is 6″ wide. Please let us know if you have any additional questions!

Guest
bryan duckworth
5 years 15 days ago

Warranty????

Support
Jeremy Rupp
5 years 4 days ago

Hi Bryan, all Overland Carts have a 1 year warranty on all electric and drive train components. There is a three year warranty on the steel components.

Guest
Andrew Truesdale
4 years 6 months ago

Can it go up and down stairs (assuming reverse to go up stairs, forward with braking to go down stairs)?

Support
Jeremy Rupp
4 years 6 months ago

Hi Andrew, we do not recommend taking Overland Hand Trucks up or down stairs with a load on them. Without a load it is possible to drive the cart up or down a few stairs in a pinch. We recommend lifting up the cart and carrying it up or down stairs or using a ramp.

Guest
yirgu gosa
4 years 3 months ago

the geometric analysis of electric transformer hand truck with foot plate

Guest
Jonathan
3 years 9 months ago

Can I order a fork for block and roll blocks? Like the one for the “transformer” cart on block and roll? Is it possible to get all terrain tires solid fill?

Support
Jeremy Rupp
3 years 9 months ago

Hi Jonathan, great question! Unfortunately the physics of hauling a block and roll block would not work on our transformer. We would recommend buying a manual block and roll cart and Transformer although we understand that requires two carts instead of one. We do sell the Transformer with flat free dual ag tires. The part number is: 70223 and it is $100 more than our standard Transformer. Please let us know if there is anything else we can help you with! 877-447-2648

Guest
Shannon
3 years 8 months ago

Can I upgrade from a 24V battery to a 36V if I order one

Support
Jeremy Rupp
3 years 8 months ago

Hi Shannon! Our electric drive system is exclusively designed with 24V components. It is not possible to upgrade the cart to a 36V battery pack. We do offer two different 24V battery pack sizes for the Transformer, 12Amp-Hr & 21Amp-Hr. Please let us know if there is anything else we can help you with! 877-447-2648

Guest
Scott
3 years 1 month ago

Looking at this electric hand truck most of our inflatables are 365-500lb just wondering how this one will handle on inclines as we have lots of hilly yards in Washington?

Support
Jeremy Rupp
3 years 1 month ago

Hi Scott, much of the load capacity depends on the terrain (long grass, short grass, hard dirt), incline, load and incline length. Our Transformer comes with a built in overload fuse that will trigger if the motor is being over worked. That’s an indicator to reduce the load or take a less severe angle. Overall our Transformer should work for your application. Please let us know if there is anything else we can help you with! 877-447-2648

Guest
Thanasis
2 years 8 months ago

DO YOU HAVE A DEALER IN EUROPE ?

Support
Jeremy Rupp
2 years 8 months ago

Hi Thanasis, unfortunately we do not have a dealer in Europe at this time.

Guest
C.D.
2 years 6 months ago

How high off the ground are the handles when on all 4 wheels are on the ground.

Support
Jeremy Rupp
2 years 6 months ago

Hi C.D., The hand grips are about 36″H from the ground when the cart is in the reclined position. If you have any other questions, please let us know: 877-447-2648

Guest
Marshall
2 years 3 months ago

Are these for fridges and washers and dryers

Support
Jeremy Rupp
2 years 3 months ago

Hi Marshall, the Transformer can be used to move appliances on hard flat surfaces but are no designed for operation on stairs. We would recommend our Power Appliance Cart for your application: https://store.graniteind.com/product/overland-electric-powered-appliance-hand-truck-with-turf-tires. If you have any other questions, please let us know: 877-447-2648

Guest
Jeremy Crane
2 years 16 days ago

Will the overland hand truck climb trailer ramp with 200lbs.? Can I still order the model 70194 ? Its appears to be shorter in the Videos.

Support
Jeremy Rupp
2 years 15 days ago

Hi Jeremy, yes the Overland Transformer can climb into a trailer with 200 lb of weight. There is only one model of the 70194, it is the one shown in the pictures above. If you have any additional questions, please let us know: 877-447-2648 or email: support@graniteind.com. Thank you!

Guest
Luis
1 year 11 months ago

Does the hand truck come with all its parts in the picture? Or do I have to buy them separately?

Support
Jeremy Rupp
1 year 11 months ago

Hi Luis, the Transformer comes standard with a footplate. All the accessories are optional and must be purchased separately. If you have any other questions, please let us know: 877-477-2648. Thank you!

Guest
Little Red Wagon Moving Company LLC
1 year 10 months ago

How wide is the unit from the outside to outside of each tire?

Support
Jeremy Rupp
1 year 10 months ago

28″ from tire edge to tire edge. The tires are the widest component of the Transformer.

Guest
John
1 year 5 months ago

Can I change the tire size if my dolly won’t go up the ramp ? It’s an inch too wide

Support
Jeremy Rupp
1 year 4 months ago

Hi John, we do offer a flat free single ag tire option for the Transformer that would reduce the overall width to 24″ from tire edge to tire edge. The part number is: 70228 and the price would be the same. Here’s a link to the tire: https://store.graniteind.com/product/overland-13-in-flat-free-single-ag-tire-right If you have any questions feel free to give us a call: 877-447-2648

Guest
Pradip
1 year 4 months ago

Can I get more specifications about electric power transformer truck

Support
Jeremy Rupp
1 year 4 months ago

Our most popular specs are found under the specs tab on the product page: https://store.graniteind.com/product/overland-electric-powered-transformer-hand-truck-foot-plate If you have additional questions feel free to contact us at: 877-447-2648 or via email: support@graniteind.com

Guest
Km
1 year 1 month ago

Does the rear wheels fold flat against the unit?
Say if I want to load it into a pickup truck with a covered bed.

Support
Jeremy Rupp
1 year 27 days ago

Hi, the rear wheels do not fold flat against the unit. The bolts would have to disassembled to remove the rear wheels. If you have additional questions feel free to contact us at: 877-447-2648 or via email: support@graniteind.com

Guest
bill
7 months 7 days ago

Is the overall length/height truck adjustable to go below 72″?

Support
Jeremy Rupp
7 months 4 days ago

Hi Bill, The 72″ length was an old length. The current model is 66″L when in the reclined position. The length cannot be adjusted in either direction. If you have further questions, feel free to let us know: 877-447-2648 or via email: support@graniteind.com

Guest
Jeff Orr
1 month 17 days ago

Does the transformer come with a charger

Support
Jeremy Rupp
1 month 17 days ago

Hi Jeff, Yes all power carts come with a smart charger. Generally the charger is offboard and comes in an Overland tote bag.



Additional information

Weight 194 lbs
