Overland Electric Powered Hog Hauler Hand Truck

Price range: $4,425.00 through $4,525.00

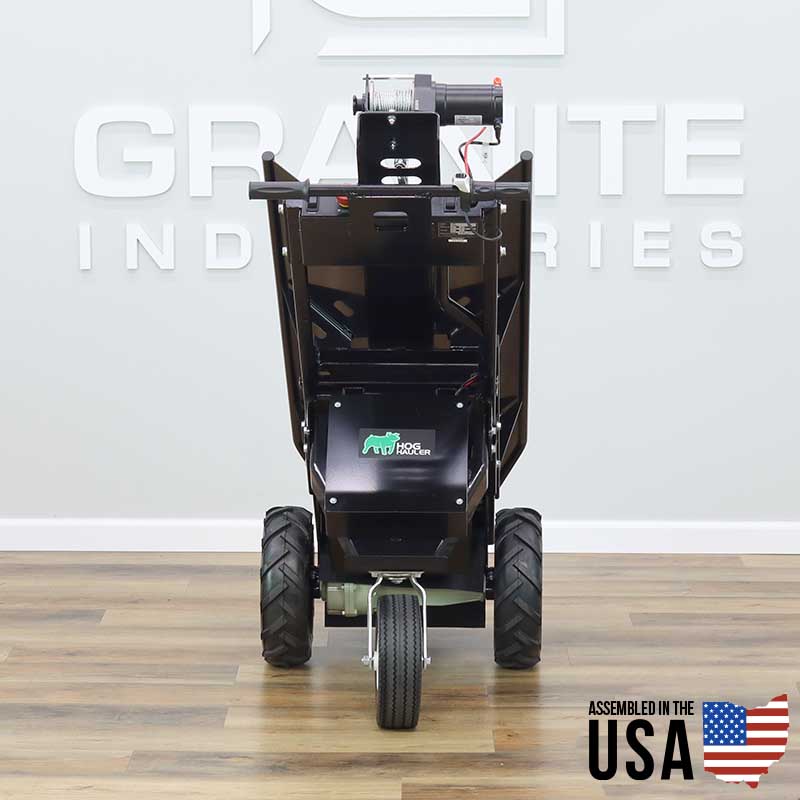

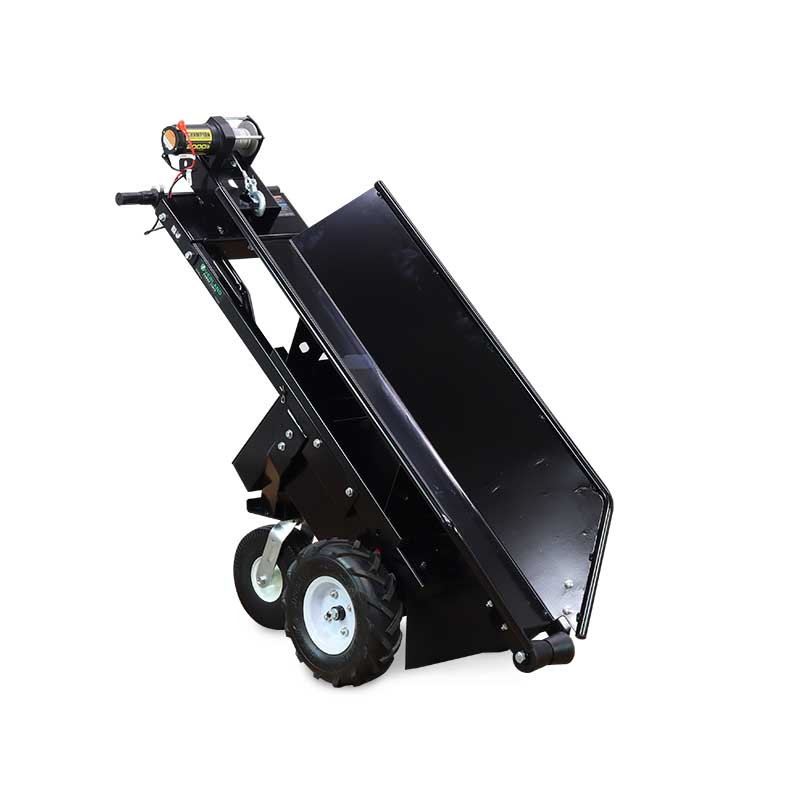

The Hog Hauler Hand Truck from Overland Carts changes the way companies operate.  Built on the powerful electric drive system found in all Overland Carts, this hand truck is capable of handling up to 750 pounds.  Unique to this cart is the built in winch and side panels that can be used for hauling hog carcasses.

ESTIMATED SHIP DATE: Each cart is made to order in Archbold, OH.  Estimated lead time: 1-2 weeks.  Stock levels subject to change.

SKU: 70220

The Hog Hauler Hand Truck from Overland Carts changes the way swine facilities operate. We worked directly with a hog farm operation to design a cart built specific for transporting deceased swine out of buildings where larger equipment couldn’t reach them. The cart is designed for easy maneuverability. We’ve raised the handles to clear standard hog fences, and the cart is narrow enough to maneuver through tight alleyways – allowing you to get into hard to reach places. The built in winch allows you to pull the carcass up onto the cart with just one person – which is normally a 2 person job.

Built on the powerful electric drive system found in all Overland Carts, this hand truck is capable of handling up to 750 pounds.

SHIPPING & LIFT GATE SERVICE
Overland Carts ship via Freight Carrier/Common Carrier.  If you are shipping to a residential area and/or do not have a loading dock or forklift, you must select LIFT GATE SERVICE. Your cart will be shipped on a truck that is equipped to lower your crated Overland from the truck to ground level. Overland Carts ship fully assembled.

Safety Features

  • SmoothStart – On acceleration, power is applied to the drive tires in a controlled manner ensuring a smooth start each time.
  • HillSense – Allows the cart to be safely used on inclines and declines. The cart will travel at the speed set by the user, not by the incline or decline.
  • AutoLock – An automatic parking brake locks the wheels when the throttle is not being applied. This feature prevents the cart from rolling away from the user and also provides easy loading and unloading on inclines and declines.
  • Emergency Stop – The red E-Stop button allows the user to immediately stop the progress of the cart.
  • Four Wheel Design – All Overland Carts have at least four wheels to provide maximum stability.
  • Overload Fuse – There is a built in overload fuse that measures the inputs of the drive system in real time. If the incline, load, or terrain begins to overwork the motor, a fuse will stop the cart and prevent any damage to the transaxle.
  • Throttle Controlled Braking – The braking is controlled by the throttle, simply let up on the throttle and the cart will slow down to the desired speed. To brake is automatically applied.
  • Throttle Defaults to Zero MPH – If the throttle is released for any reason, the throttle will automatically return to the zero MPH position and the cart will safely coast to a stop. AutoLock will then engage and the cart will be secure.
  • No open gears, belts, or hot components – The design of the cart keeps hands safe and prevents possible burns caused by hot engine components.
  • Tested Over Time – Overland carts have been in production for over 10 years. They’re engineered and built in our factory with quality and safety standards.

Additional Features

  • Easy Start – Simply pull out the red E-stop button on the handle and the cart is immediately ready to drive.
  • Variable Speed Twist Throttle – Similar to a motorcycle throttle. Very easy to use and to control the speed.
  • Enclosed Gear Box – Gears are enclosed for maximum safety and durability. The transaxle is sealed for life and does not require any maintenance.
  • Manual Mode – Allows the cart to be operated without battery power.
  • Forward/Reverse – Direction can be selected from the toggle switch on the handlebar. The cart travels the same speed in either direction.
  • Zero Turn Radius – The open differential allows the cart to be spun in a circle without power being applied, allowing for a true zero turn radius.
  • Near Silent Operation – The electric drive system is almost silent in its operation.
  • Battery Life – 6-8 hours of run time on a standard battery.
  • Battery Life Indicator – LED lights ensure you always know the current battery status
  • Heavy Duty 15″ Drive Tires – Complete with a steel hub and heavy duty wheels.
  • 10″ Rear No Flat Swivel Casters – Foam filled heavy duty swivel wheels.
  • Rechargeable AGM Sealed Lead Acid Batteries – Absorbent Glass Mat (AGM) batteries are the most advanced batteries on the market and offer a spill-proof design.
  • Removable Rechargeable Battery Pack – Quickly swap batteries or remove the battery to charge it.
  • Patented Design – Our carts feature patented designs and components. Ensuring top tier build quality and design on all genuine Overland Carts.

Overland Limited Warranty

    • 1 year – Powertrain and Electronics
    • 3 year – Chassis
    • Limited to manufacturing defects
    • For the full warranty – Overland Limited Warranty



Overland Powered Carts
Overland Carts is a part of the Granite Industries family. All carts are manufactured by Granite Industries in Archbold, Ohio.
The Granite Online Store is the official online store for all Overland Cart products

Looking for a quantity discount or more options?


  • Motor: 24 Volt DC Permanent Magnet Motor
  • Drive: Single Reduction Open Differential Transaxle
  • Gear Ratio: 18:01
  • Capacity Level Ground: 750 lbs (295 kgs)
  • Speed: 0 – 3.2 mph / (0 – 5.2 kph), Variable
  • Static/Park Brake: Electromechanical, Fail Safe
  • Battery: Rechargeable 24V 22AH Sealed Lead Acid
  • Charger: On Board, 5 Amp
  • Operating Time: 6 – 8 Hours (Real World)
  • Unit Dimensions: 36″ H x 28″ W x 52″ L
  • Weight: 170 pounds
  • Footplate Dimensions: 9″D x 20″L

Winch Features

  • 12V 22 amp-hr rechargeable battery pack to power the winch
  • 12V 3 amp-hr on board smart charger to power the 12V battery pack.
  • 2,000 lb capacity Champion winch
  • 5/32” x 25 ft galvanized steel cable
