Overland Electric Garden Cart – 7 Cu. Ft. Hopper

Has a convenient 7 cubic foot wagon style hopper which swings on a hinge to be lifted and dumped.

ESTIMATED SHIP DATE: Each cart is made to order in Archbold, OH.  We are currently estimating new orders to ship 2-3 weeks after the order is placed.

$2,895.00

Free Shipping!

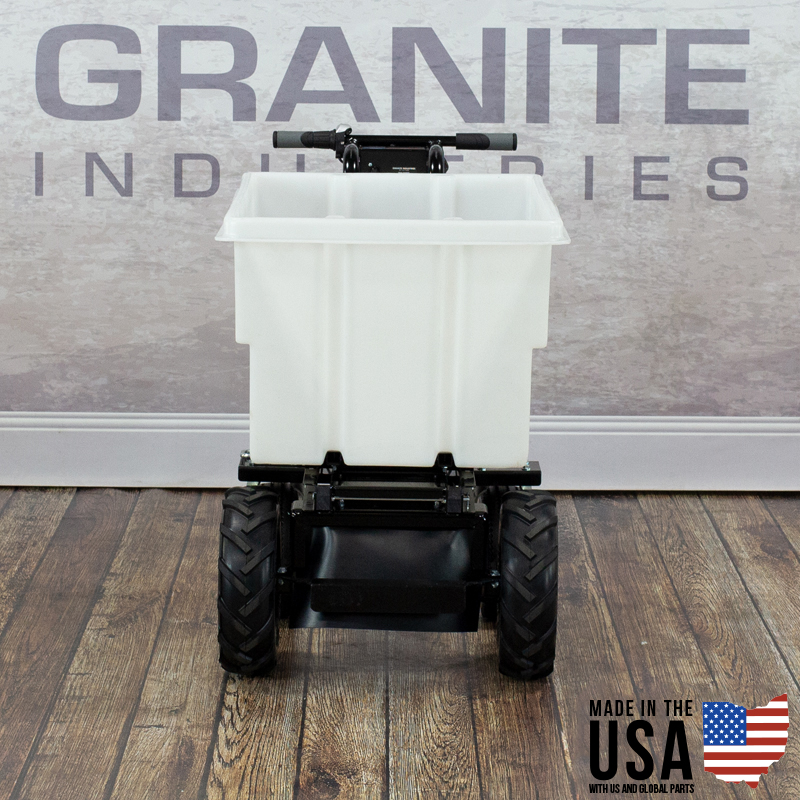

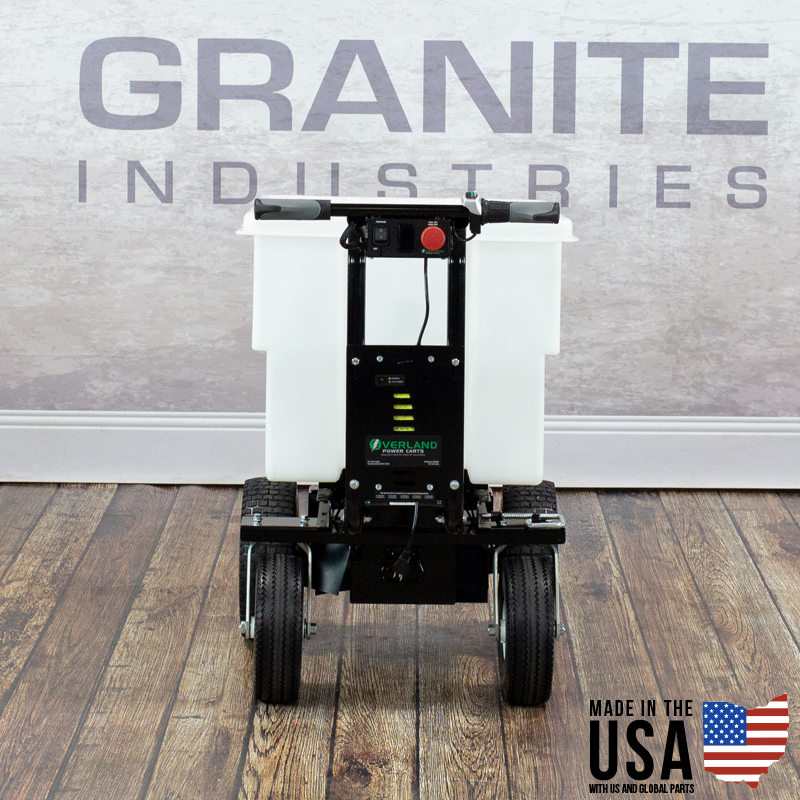

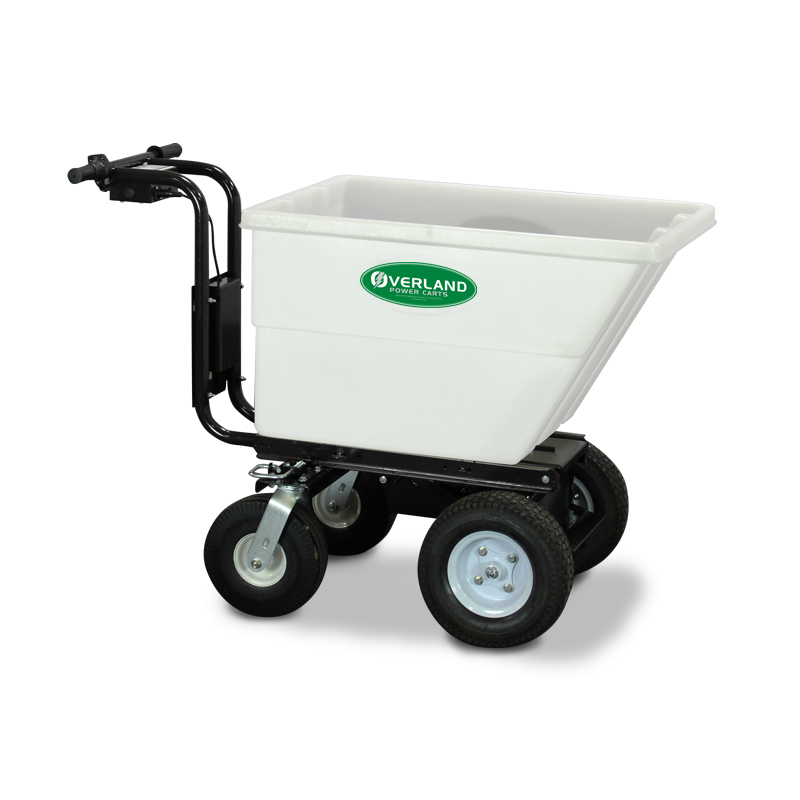

Overland Electric Garden Cart – 7 Cubic Foot Hopper

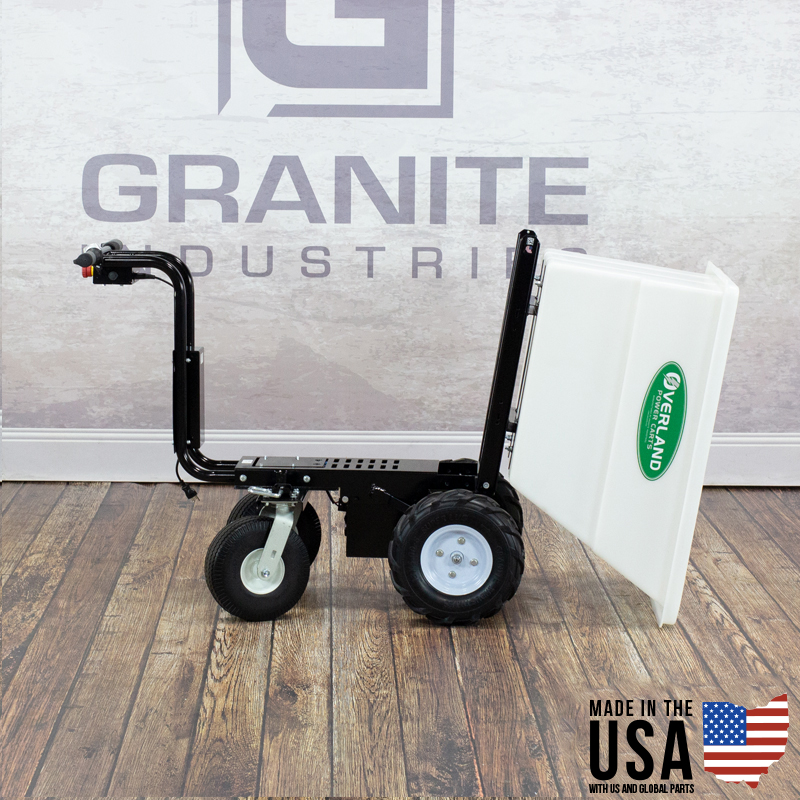

The Electric Garden Cart is build specifically for handling the toughest lawn and landscaping challenges. This cart is built with a versatile 7 cubic foot hopper which swings on a hinge to be lifted and dumped. You’ll be able to haul around up to 750 pounds and not break your back. Simply drive the cart by using the twist throttle and walk behind at up to 3.0 miles per hour. The four wheels make this more stable and much easier to handle than a typical wheelbarrow. Hinged tub lifts and dumps easily, and locks in place when not in use. Standard turf tires provide plenty of traction but also keep the lawn in excellent condition.


**Overland Carts ship fully assembled via Freight Carrier/Common Carrier**
**Lift Gate service is required for MOST residential customers as it lowers the product to the ground**

Top Reasons to Buy an Overland

  • Easy to use – Power it on, twist the throttle and go.
  • Safe to Operate – Numerous safety features and a four wheel design set us apart.
  • Made in the USA – Quality you can feel. Manufacturing and support is all out of Archbold, OH.
  • All electric power – Zero emissions, zero fumes, and virtually no noise.
  • Minimal Maintenance – No oil filters, air filters, or gas to add. Just remember to plug it in.
  • All Day Battery – Operate the cart throughout the day on a single charge.
  • Massive Capacity – Load the cart up with 750 lbs of whatever you want.
  • Fully Assembled – All Overland Carts ship fully assembled.

Reviews and Blog Posts

Safety Features

  • SmoothStart – On acceleration, power is applied to the drive tires in a controlled manner ensuring a smooth start each time.
  • HillSense – Allows the cart to be safely used on inclines and declines.  The cart will travel at the speed set by the user, not by the incline or decline.
  • AutoLock – An automatic parking brake locks the wheels when the throttle is not being applied.  This feature prevents the cart from rolling away from the user and also provides easy loading and unloading on inclines and declines.
  • Emergency Stop – The red E-Stop button allows the user to immediately stop the progress of the cart.
  • Four Wheel Design – All Overland Carts have at least four wheels to provide maximum stability.
  • Overload Fuse – There is a built in overload fuse that measures the inputs of the drive system in real time.  If the incline, load, or terrain begins to overwork the motor, a fuse will stop the cart and prevent any damage to the transaxle.
  • Throttle Controlled Braking – The braking is controlled by the throttle, simply let up on the throttle and the cart will slow down to the desired speed.  To brake is automatically applied.
  • Throttle Defaults to Zero MPH – If the throttle is released for any reason, the throttle will automatically return to the zero MPH position and the cart will safely coast to a stop.  AutoLock will then engage and the cart will be secure.
  • No open gears, belts, or hot components – The design of the cart keeps hands safe and prevents possible burns caused by hot engine components.
  • Tested Over Time – Overland Cart has been developing and building carts for 10 years.  We know our carts and have developed them to be as safe as possible.

Additional Features

  • Dumping Hopper – High density polyethylene.  Hopper dimensions: 19″H x 24″W x 36″L
  • Easy Start – Simply pull out the red E-stop button on the handle and the cart is immediately ready to drive.
  • Variable Speed Twist Throttle – Similar to a motorcycle throttle.  Very easy to use and to control the speed.
  • Enclosed Gear Box – Gears are enclosed for maximum safety and durability.  The transaxle is sealed for life and does not require any maintenance.
  • Manual Mode – Allows the cart to be operated without battery power.
  • Forward/Reverse – Direction can be selected from the toggle switch on the handlebar.  The cart travels the same speed in either direction.
  • Zero Turn Radius – The open differential allows the cart to be spun in a circle without power being applied, allowing for a true zero turn radius.
  • Near Silent Operation – The electric drive system is almost silent in its operation.
  • IMPROVED Battery Life – 6-8 hours of run time on a standard battery.
  • 110V Off Board Charger – Charge the cart with an extension cord or plug it right in the wall.
  • Battery Life Indicator – LED lights ensure you always know the current battery status
  • Powder Coated Frame – The chassis is welded and powder coated in house for lasting finish
  • Heavy Duty 13″ Drive Tires – Complete with a steel hub and heavy duty wheels.
  • 10″ Rear No Flat Swivel Casters – Foam filled heavy duty swivel wheels.
  • Rechargeable AGM Sealed Lead Acid Batteries – Absorbent Glass Mat (AGM) batteries are the most advanced batteries on the market and offer a spill-proof design.
  • Removable Rechargeable Battery Pack – Quickly swap batteries or remove the battery to charge it.
  • Patented Design – Our carts feature patented designs and components.  Ensuring top tier build quality and design on all genuine Overland Carts.

Overland Tire Options

  • 13″ Pneumatic Dual Ag Tire – The best performing and most popular tire. It works well for all applications, especially where maximum traction is desired. The width from the tires is measured as 33″ from tire edge to tire edge when mounted on the cart.
  • 13″ Flat Free Dual Ag Tire – Features all the benefits of our pneumatic dual ag tire, but with the advantage of flat free construction. The semi-pneumatic tire features a thick molded outer core with a hollow center.  This tires does not require inflation and cannot be punctured. The width from the tires is measured as 33″ from tire edge to tire edge when mounted on the cart.
  • 13″ Pneumatic Turf Tire – Recommended tire for flat surfaces and indoor use where cart width is important. The width from the tires is measured as 24″ from tire edge to tire edge when mounted on the cart.
  • 13″ Pneumatic Single Ag Tire – Recommended where more traction is needed than turf tires but cart width is still important. The width from the tires is measured as 24″ from tire edge to tire edge when mounted on the cart.

Overland Limited Warranty

  • 1 year – Powertrain, Electronics and Hopper
  • 3 year – Chassis
  • Limited to manufacturing defects
  • For the full warranty – Overland Limited Warranty

Overland Powered Carts
Overland Carts is a part of the Granite Industries family.  All carts are manufactured by Granite Industries in Archbold, Ohio.
The Granite Online Store is the official online store for all Overland Cart products




Looking for a quantity discount or more options?




  • Motor: 24 Volt DC Permanent Magnet
  • Drive: Single Reduction Open Differential Transaxle
  • Capacity Level Ground: 750 lbs (295 kgs)
  • Speed: 0 – 3.2 mph / (0 – 5.2 kph), Variable
  • Static/Park Brake: Electromechanical, Fail Safe
  • Battery: Removable & Rechargeable 24V 22AH Sealed Lead Acid
  • Charger: Off Board, 5 Amp
  • Real World Operating Time: 6 – 8 Hours
  • Unit Dimensions: 38″ H x 24″ W x 52″
  • Hopper Capacity: 7 cubic feet
  • Hopper Dimensions: 19″H x 24″W x 36″L
  • Weight: 155 pounds
  • Patent Pending
  • View the full specification sheet: 70040 Spec Sheet

Have a question about the item?


Guest
Diane
5 years 9 months ago

Does it have brakes?

Support
Jeremy Rupp
5 years 9 months ago

Hi Diane, all Overland Carts have an electromagnetic brake. Essentially it works like an engine brake. Simply by letting up on the throttle the cart knows to slow down. Once the cart comes to a stop there is a parking brake that engages and locks the wheels from moving forward or backwards. If you have any other questions, please feel free to give us a call: 877-447-2648 or reply to this message. Thanks!

Guest
Ruth Cutler
4 years 10 months ago

Can the hopper come off to allow use as a flat bed? It is too high for me to lift stone into and I often use tubs so I can easily move mulch around a garden. The flat beds are much too long for me to store or use.

Guest
Howard Delano
4 years 8 months ago

Hi Ruth, please see the videos section and “How to remove……….” and you can see that the dump tub is easily removable.

Guest
Denyse McCuistion
3 years 9 months ago

Will this cart handle a 30 degree incline on gravel using single AG tires unloaded? I have a width limitation and the double AG tires would be too wide. Also how far does it take the cart to stop heading down an incline after releasing the throttle?

Support
Jeremy Rupp
3 years 24 days ago

Hi Denyse, our cart could handle 30 degrees unloaded, although we traditionally don’t recommend angles greater than 18 degrees. The biggest issue will be traction. Single ag tires do an okay job but are definitely not as good as our dual ag tires for overall traction. Single Ag tires might be enough for your application since there won’t be a load on the cart. It takes about 2-3 seconds for the cart to stop after the throttle has been released. Once it stops the wheels autolock in place as a safety feature.

Guest
Carolyn West
2 years 9 months ago

Can I fill the 7 cu ft hopper with gallon bottles of water?

Support
Jeremy Rupp
2 years 5 months ago

Hi Carolyn, the cart would definitely hold bottles of water without issue.

Guest
Miles
2 years 4 months ago

How wide are the tires on the caster wheels?

Support
Jeremy Rupp
2 years 3 months ago

Hi Miles, the rear caster wheels are 3″ wide.
