The 29″W x 51″ steel flatbed on our all NEW C46 4WD chassis creates an extremely versatile powered wagon. This is a very popular cart for customers who want to customize their cart for a specific application. The power dump features allows for an even wider range of uses and helps to keep the load at the perfect angle. All of our powered Carts, wheelbarrows and wagons use a twist style throttle. They’re simple to operate and will cut down on your work time. We like to say, “Dump Your Old Wheelbarrow and Drive an Overland!”. For an overview of features: Read our C46 4WD Blog Post. View the compatible quick swap 9 cubic foot wagon hopper (PN: 70316).
All 4WD Wheelbarrows now come standard with a massive 39 Amp-Hr Battery Pack (an 60% increase over the 2WD 24 Amp Hr battery pack).
**Overland Carts ship fully assembled via Freight Carrier/Common Carrier**
**Lift Gate service is required for MOST residential customers as it lowers the product to the ground**
Top Reasons to Buy an Overland
- Easy to use – Power it on, twist the throttle and go.
- Safe to Operate – Numerous safety features and a four wheel design set us apart.
- Assembled in the USA – Quality you can feel. Our customer support and factory are located in Archbold, OH
- All electric power – Zero emissions, zero fumes, and virtually no noise.
- Minimal Maintenance – No oil filters, air filters, or gas to add. Just remember to plug it in.
- All Day Battery – Operate the cart throughout the day on a single charge.
- Massive Capacity – Load the cart up with 750 lbs of whatever you want.
- Fully Assembled – All Overland Carts ship fully assembled.
Reviews and Blog Posts
- Real Customers, Real Feedback: Overland Cart Reviews
- Top 5 Benefits of an Overland Cart: Top 5 Reasons to Buy an Electric Wheelbarrow
- Safety Benefits of an Overland Cart: Reduce Back Pain with an Electric Wheelbarrow
- Frequently Asked Questions: Overland Cart Frequently Asked Questions
- Real World Battery Testing Video: Real World Battery Testing
Safety Features
- SmoothStart – On acceleration, power is applied to the drive tires in a controlled manner ensuring a smooth start each time.
- HillSense – Allows the cart to be safely used on inclines and declines. The cart will travel at the speed set by the user, not by the incline or decline.
- AutoLock – An automatic parking brake locks the wheels when the throttle is not being applied. This feature prevents the cart from rolling away from the user and also provides easy loading and unloading on inclines and declines.
- Emergency Stop – The red E-Stop button allows the user to immediately stop the progress of the cart.
- Four Wheel Design – All Overland Carts have at least four wheels to provide maximum stability.
- Overload Fuse – There is a built in overload fuse that measures the inputs of the drive system in real time. If the incline, load, or terrain begins to overwork the motor, a fuse will stop the cart and prevent any damage to the transaxle.
- Throttle Controlled Braking – The braking is controlled by the throttle, simply let up on the throttle and the cart will slow down to the desired speed. To brake is automatically applied.
- Throttle Defaults to Zero MPH – If the throttle is released for any reason, the throttle will automatically return to the zero MPH position and the cart will safely coast to a stop. AutoLock will then engage and the cart will be secure.
- No open gears, belts, or hot components – The design of the cart keeps hands safe and prevents possible burns caused by hot engine components.
- Tested Over Time – Overland Cart has been developing and building carts for 10 years. We know our carts and have developed them to be as safe as possible.
Additional Features

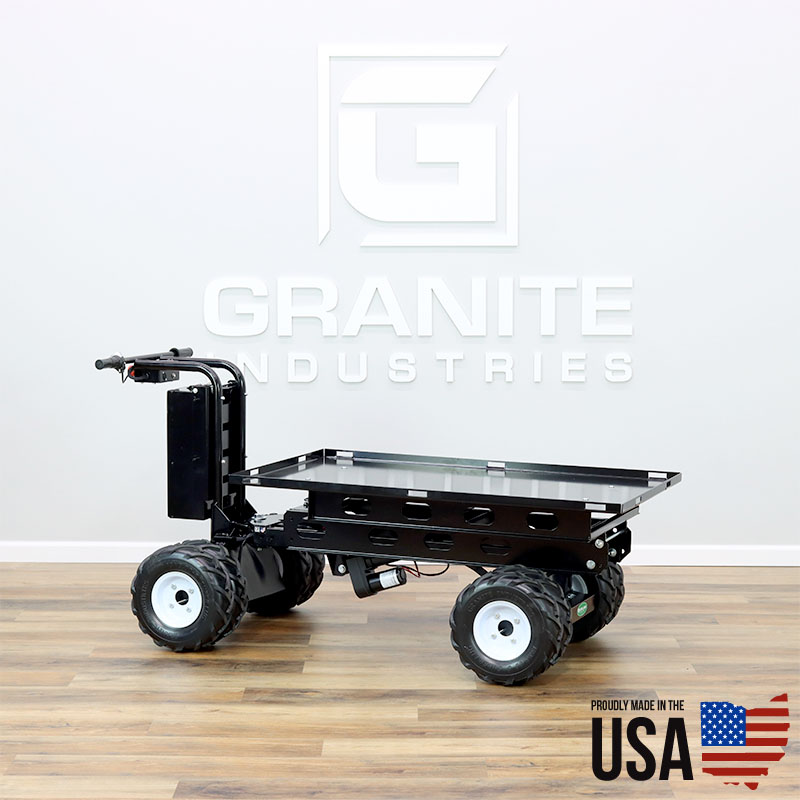

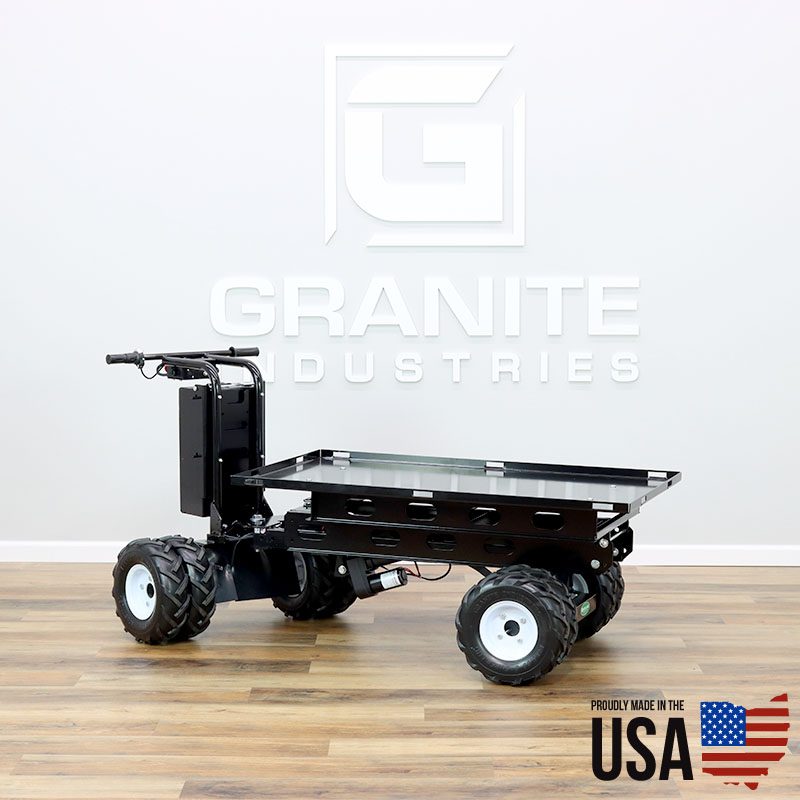

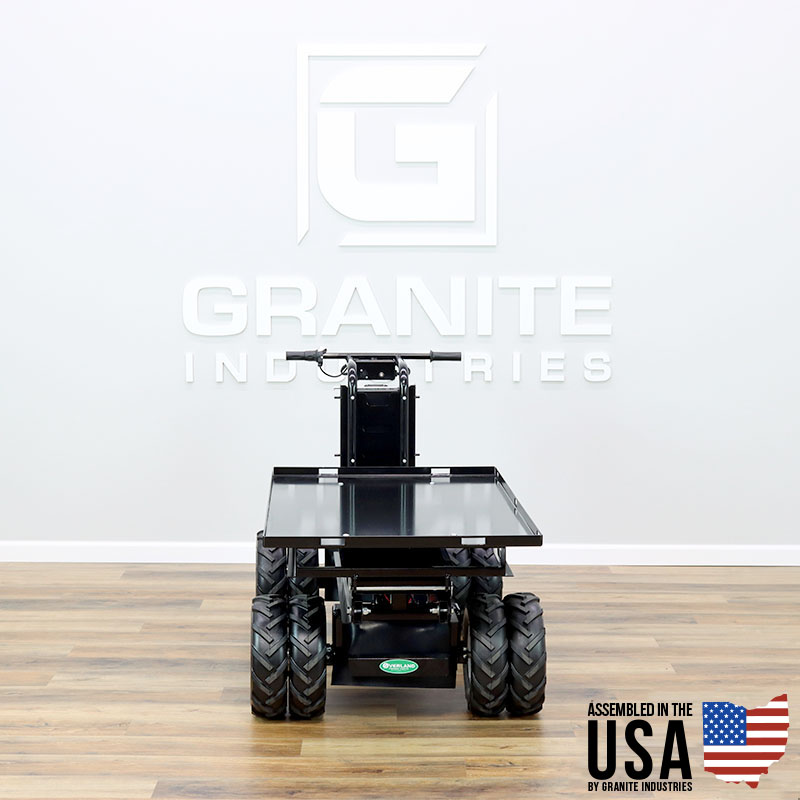

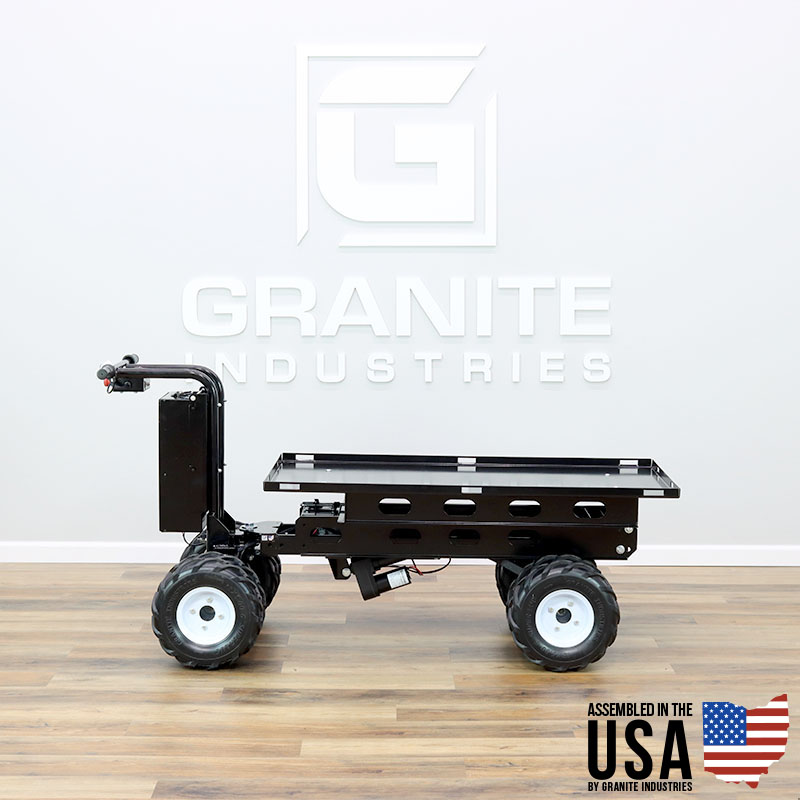

- Heavy Duty Steel Platform – The 29″W x 51″ steel platform is built from heavy duty gauge steel. It includes e-ratchet strap pockets that are designed to work with any e-ratchet straps.

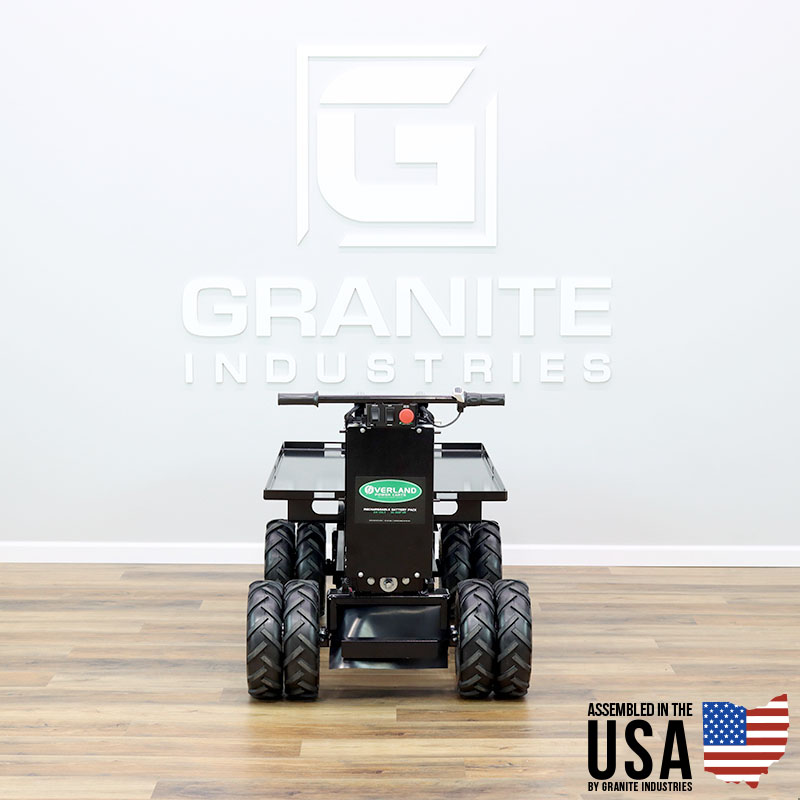

- Four Wheel Drive – Dual drive axles, and dual ag tires on the front and rear provide exceptional grip.

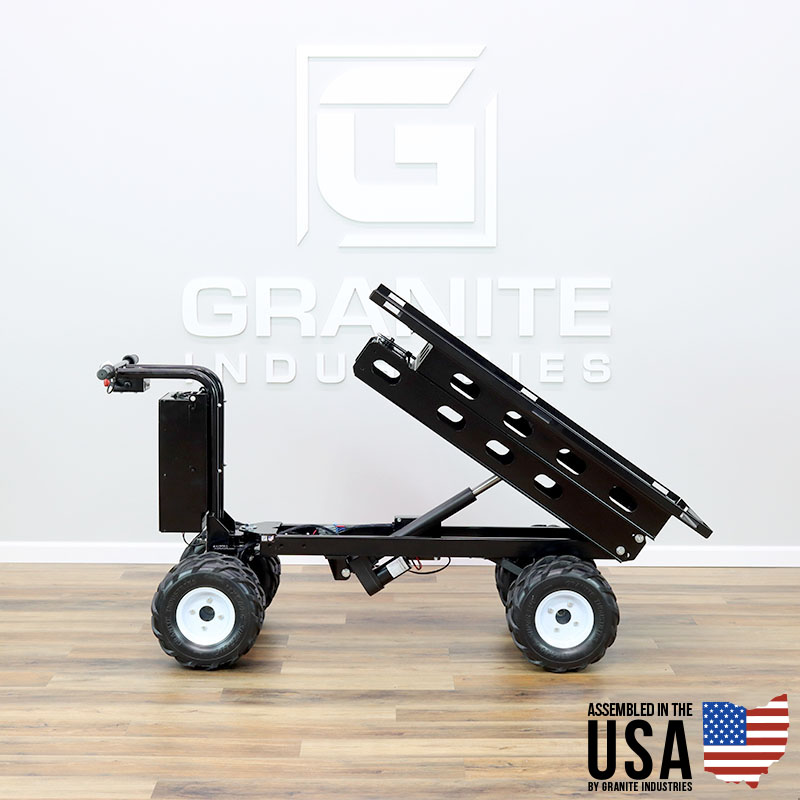

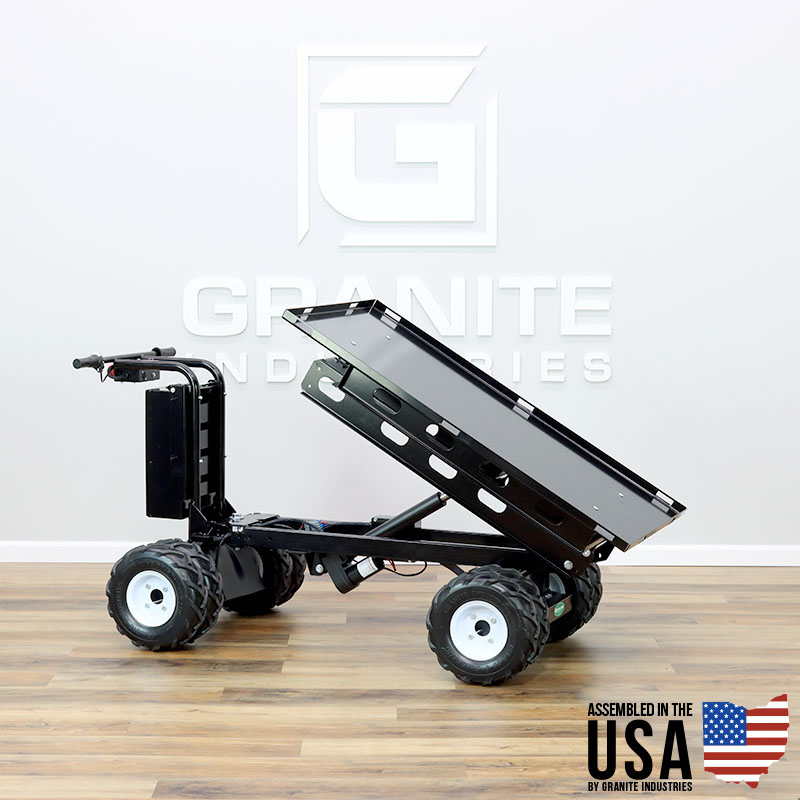

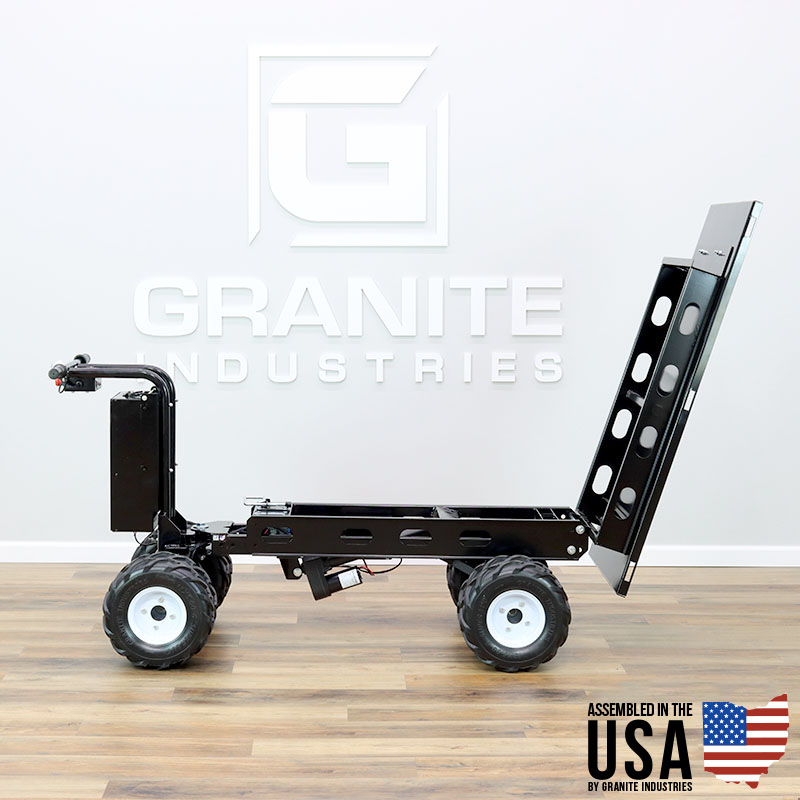

- Power Dump Feature – Uses an electric lifter to lift the load and safely dump the contents.
- Easy Start – Simply pull out the red E-stop button on the handle and the cart is immediately ready to drive.
- Variable Speed Twist Throttle – Similar to a motorcycle throttle. Very easy to use and to control the speed.
- Enclosed Gear Box – Gears are enclosed for maximum safety and durability. The transaxle is sealed for life and does not require any maintenance.
- Manual Mode – Allows the cart to be operated without battery power.
- Forward/Reverse – Direction can be selected from the toggle switch on the handlebar. The cart travels the same speed in either direction.
- Near Silent Operation – The electric drive system is almost silent in its operation.
- IMPROVED Battery Life – 6-8 hours of run time on a standard battery.
- 110V Off Board Charger – Charge the cart with an extension cord or plug it right in the wall.
- Battery Life Indicator – LED lights ensure you always know the current battery status
- Powder Coated Frame – The chassis is welded and powder coated in house for lasting finish
- Heavy Duty 13″ Flat Free Drive Tires – Complete with a steel hub and heavy duty flat free tires.
- Rechargeable AGM Sealed Lead Acid Batteries – Absorbent Glass Mat (AGM) batteries are the most advanced batteries on the market and offer a spill-proof design.
- Removable Rechargeable Battery Pack – Quickly swap batteries or remove the battery to charge it.
- Patented Design – Our carts feature patented designs and components. Ensuring top tier build quality and design on all genuine Overland Carts.
Overland Tire Options
- 13″ Flat Free Dual Ag Tires – Our best performing and most popular tire. The dual ag design works well for all applications, especially where maximum traction is desired. The semi-pneumatic tire features a thick molded outer core with a hollow center. The tires do not require inflation and cannot be punctured. The width from the tires is measured as 33″ from tire edge to tire edge when mounted on the cart.
Overland Limited Warranty
- 1 year – Powertrain, Electronics and Hopper
- 3 year – Chassis
- Limited to manufacturing defects
- For the full warranty – Overland Limited Warranty
Compatible Accessories
- Interchangeable hopper or flatbed
