Overland Flatbed Electric Powered Wagon with 4 Wheel Drive and Extended Range Battery
The 29″W x 51″ steel flatbed on our all NEW C46 4WD chassis creates an extremely versatile powered wagon. This is a very popular cart for customers who want to customize their cart for a specific application. All of our powered Carts, wheelbarrows and wagons use a twist style throttle. They’re simple to operate and will cut down on your work time. We like to say, “Dump Your Old Wheelbarrow and Drive an Overland!”. For an overview of features: Read our C46 4WD Blog Post. View the compatible quick swap 9 cubic foot wagon hopper (PN: 70316).
Overland Cart Spring Sale
Save $100 with promo code: springintospring100
Sale Ends: April 30, 2024
All 4WD Wheelbarrows now come standard with a massive 39 Amp-Hr Battery Pack (an 60% increase over the 2WD 24 Amp Hr battery pack).
**Overland Carts ship fully assembled via Freight Carrier/Common Carrier**
**Lift Gate service is required for MOST residential customers as it lowers the product to the ground**
Top Reasons to Buy an Overland
- Easy to use – Power it on, twist the throttle and go.
- Safe to Operate – Numerous safety features and a four wheel design set us apart.
- Made in the USA – Quality you can feel. Manufacturing and support is all out of Archbold, OH.
- All electric power – Zero emissions, zero fumes, and virtually no noise.
- Minimal Maintenance – No oil filters, air filters, or gas to add. Just remember to plug it in.
- All Day Battery – Operate the cart throughout the day on a single charge.
- Massive Capacity – Load the cart up with 750 lbs of whatever you want.
- Fully Assembled – All Overland Carts ship fully assembled.
Reviews and Blog Posts
- Real Customers, Real Feedback: Overland Cart Reviews
- Top 5 Benefits of an Overland Cart: Top 5 Reasons to Buy an Electric Wheelbarrow
- Safety Benefits of an Overland Cart: Reduce Back Pain with an Electric Wheelbarrow
- Frequently Asked Questions: Overland Cart Frequently Asked Questions
- Real World Battery Testing Video: Real World Battery Testing
Safety Features
- SmoothStart – On acceleration, power is applied to the drive tires in a controlled manner ensuring a smooth start each time.
- HillSense – Allows the cart to be safely used on inclines and declines. The cart will travel at the speed set by the user, not by the incline or decline.
- AutoLock – An automatic parking brake locks the wheels when the throttle is not being applied. This feature prevents the cart from rolling away from the user and also provides easy loading and unloading on inclines and declines.
- Emergency Stop – The red E-Stop button allows the user to immediately stop the progress of the cart.
- Four Wheel Design – All Overland Carts have at least four wheels to provide maximum stability.
- Overload Fuse – There is a built in overload fuse that measures the inputs of the drive system in real time. If the incline, load, or terrain begins to overwork the motor, a fuse will stop the cart and prevent any damage to the transaxle.
- Throttle Controlled Braking – The braking is controlled by the throttle, simply let up on the throttle and the cart will slow down to the desired speed. To brake is automatically applied.
- Throttle Defaults to Zero MPH – If the throttle is released for any reason, the throttle will automatically return to the zero MPH position and the cart will safely coast to a stop. AutoLock will then engage and the cart will be secure.
- No open gears, belts, or hot components – The design of the cart keeps hands safe and prevents possible burns caused by hot engine components.
- Tested Over Time – Overland Cart has been developing and building carts for 10 years. We know our carts and have developed them to be as safe as possible.
Additional Features

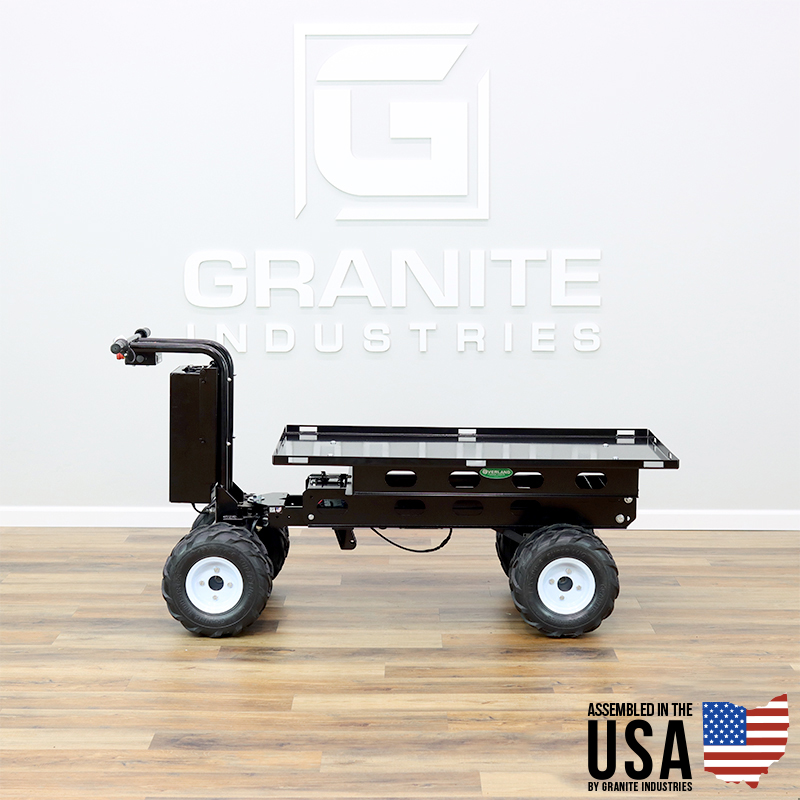

- Heavy Duty Steel Platform – The 29″W x 51″ steel platform is built from heavy duty gauge steel. It includes e-ratchet strap pockets that are designed to work with any e-ratchet straps.
- Four Wheel Drive – Dual drive axles, and dual ag tires on the front and rear provide exceptional grip.

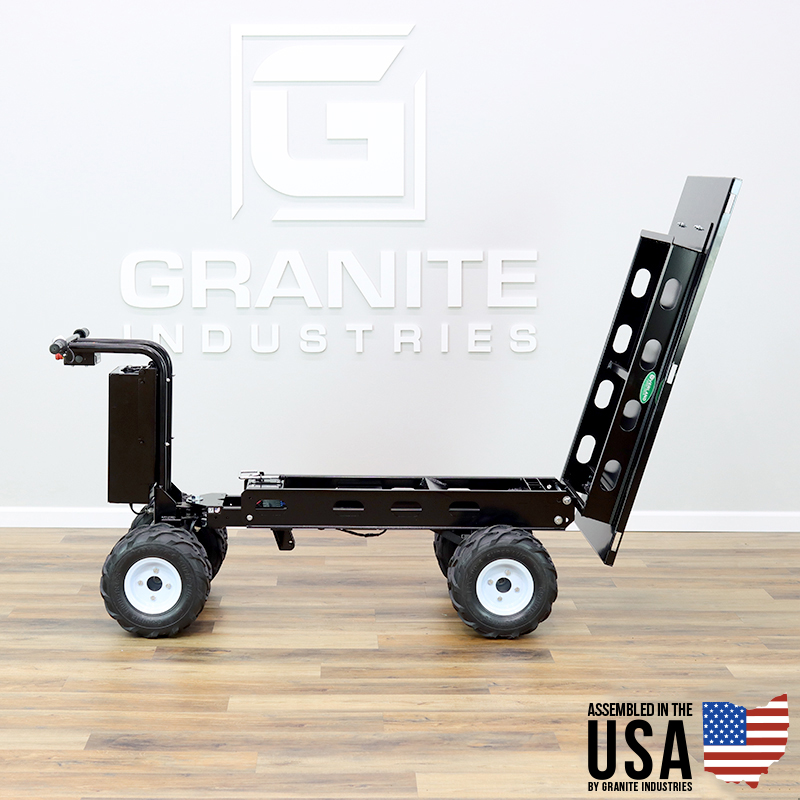

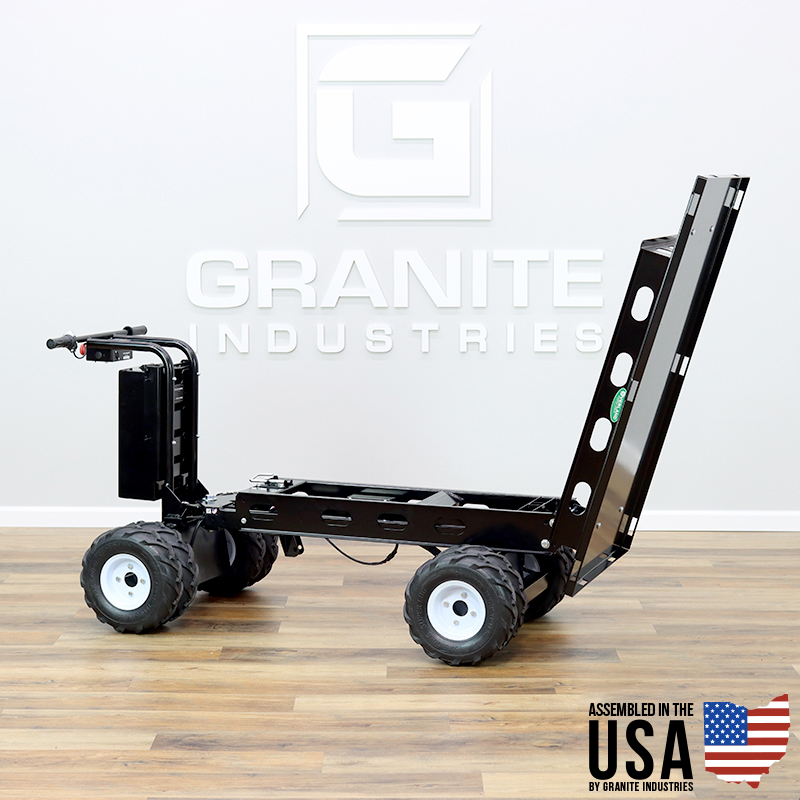

- Dump Feature – The flatbed can be dumped via a spring loaded G-Pin.
- Easy Start – Simply pull out the red E-stop button on the handle and the cart is immediately ready to drive.
- Variable Speed Twist Throttle – Similar to a motorcycle throttle. Very easy to use and to control the speed.
- Enclosed Gear Box – Gears are enclosed for maximum safety and durability. The transaxle is sealed for life and does not require any maintenance.
- Manual Mode – Allows the cart to be operated without battery power.
- Forward/Reverse – Direction can be selected from the toggle switch on the handlebar. The cart travels the same speed in either direction.
- Near Silent Operation – The electric drive system is almost silent in its operation.
- IMPROVED Battery Life – 6-8 hours of run time on a standard battery.
- 110V Off Board Charger – Charge the cart with an extension cord or plug it right in the wall.
- Battery Life Indicator – LED lights ensure you always know the current battery status
- Powder Coated Frame – The chassis is welded and powder coated in house for lasting finish
- Heavy Duty 13″ Flat Free Drive Tires – Complete with a steel hub and heavy duty flat free tires.
- Rechargeable AGM Sealed Lead Acid Batteries – Absorbent Glass Mat (AGM) batteries are the most advanced batteries on the market and offer a spill-proof design.
- Removable Rechargeable Battery Pack – Quickly swap batteries or remove the battery to charge it.
- Patented Design – Our carts feature patented designs and components. Ensuring top tier build quality and design on all genuine Overland Carts.
Overland Tire Options
- 13″ Flat Free Dual Ag Tires – Our best performing and most popular tire. The dual ag design works well for all applications, especially where maximum traction is desired. The semi-pneumatic tire features a thick molded outer core with a hollow center. The tires do not require inflation and cannot be punctured. The width from the tires is measured as 33″ from tire edge to tire edge when mounted on the cart.
Overland Limited Warranty
- 1 year – Powertrain, Electronics and Hopper
- 3 year – Chassis
- Limited to manufacturing defects
- For the full warranty – Overland Limited Warranty
Compatible Accessories
- Interchangeable hopper or flatbed
Looking for a quantity discount or more options?
Have a question about the item?
Can the Overland Electric Flatbed Wagon with 4WD and Extended Range Battery be ordered with single ag or bus tires?
Hi Gregg, unfortunately, we do not currently sell the cart with anything other than the flat free dual ag tires. This is due to the 4WD nature of this cart. If you’d like to discuss tire options further, feel free to give us a call: 877-447-2648 or send us an email: support@graniteind.com. Thanks!
Th reason for the narrower tires question is that I would like to be able to go through standard 36 inch door opening (35 inch clear opening width with door removed) and garden gates.
Hi Gregg, it looks like we had a a spec wrong on the width for this cart. We have corrected it. The correct width with dual ag tires is 33″. The flatbed is 29″ wide. So the widest part of the cart is the dual ag tires at 33″. But that should not no trouble clearing your 35″ garden door. Thanks for reaching out. If you have any additional questions feel free to give us a call: 877-447-2648 or send us an email: support@graniteind.com. Thanks!
What combination of weight and grade of incline can this unit climb on grass. We do kitchen installs in wall out basements and need tool and cabinet delivery system.
Hi Dennis, we’ve tested the 4WD on a 100 foot grass incline and rate it at 250 lb up to 15 degrees. If you have further questions, feel free to give us a call: 877-447-2648. Thanks!
Can you please tell me the size of the motor for this cart? How many watts/
Hi Sigrid, the 4WD cart features two (2) 400W motors. One motor driving each axle.
I am looking for a cart to get firewood Out of the Woods in the state of Maine where we have a lot of roots and rocks. I was considering the four-wheel drive wagon but I’m concerned about the ground clearance between the Wheels under the differentials. Can you tell me the minimum ground clearance? Also with four driving Wheels on uneven ground will the differentials be a problem spinning if one wheel is unweighted? I wonder if the front and rear parts of the chassis pivot as well as steer to prevent this problem? Thank you
Hello, this is a great product and looks like something we could use. For our application, we do need raised side rails, preferably double upto 4-5 feet. This is to provide extra protection to the instrumentation we place on-board. Is it possible to get rails at an extra cost?
Hi Parik, thanks for reaching out! For your custom application we would recommend buying our 4WD Flatbed and then taking it to a fabrication shop to get the custom work done. If you have any questions, feel free to contact us: 877-447-2648 or via email: support@graniteind.com. Thank you!
what is the height to top of the chassis, not the bed? Also….is there any wiring run through the handlebars, or just attached on the outside?
