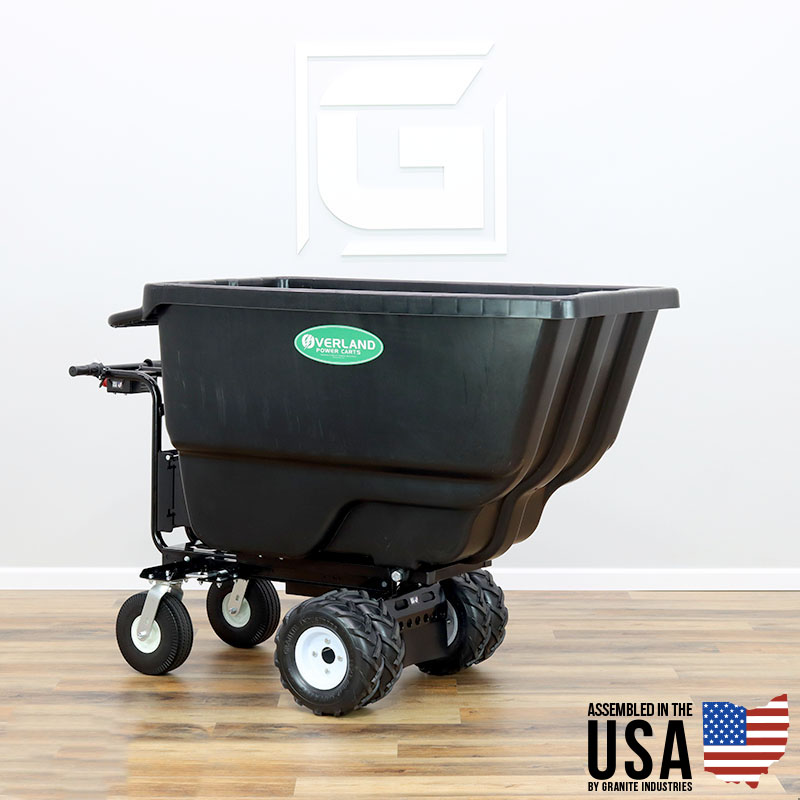

Overland 20 cu. ft. Electric Powered Wheelbarrow with Trash Utility Hopper

This electric wheelbarrow has our largest amount of hauling space – 20 cubic foot – so load it up!

ESTIMATED SHIP DATE: Each cart is made to order in Archbold, OH.  We are currently estimating new orders to ship 2-3 weeks after the order is placed.

$3,495.00

Free Shipping!

Overland 20 cu. ft. Trash Utility Electric Powered Wheelbarrow

Need to move large amounts of trash, gravel, or fertilizer? The C27-20A is the electric cart for you. This electric utility cart has our largest amount of hauling space – 20 cubic foot – so load it up! The large hopper makes this the perfect cart for moving feed for your animals or stone and mulch for your landscaping jobs. This cart can take on up to 750 lbs of material.

All of our Powered Carts, Wheelbarrows and Wagons use a twist style throttle. They’re simple to operate and will cut down on your work time. We like to say, “Dump Your Old Wheelbarrow and Drive an Overland


**Overland Carts ship fully assembled via Freight Carrier/Common Carrier**
**Lift Gate service is required for MOST residential customers as it lowers the product to the ground**

Top Reasons to Buy an Overland

  • Easy to use – Power it on, twist the throttle and go.
  • Safe to Operate – Numerous safety features and a four wheel design set us apart.
  • Made in the USA – Quality you can feel. Manufacturing and support is all out of Archbold, OH.
  • All electric power – Zero emissions, zero fumes, and virtually no noise.
  • Minimal Maintenance – No oil filters, air filters, or gas to add. Just remember to plug it in.
  • All Day Battery – Operate the cart throughout the day on a single charge.
  • Massive Capacity – Load the cart up with 750 lbs of whatever you want.
  • Fully Assembled – All Overland Carts ship fully assembled.

Reviews and Blog Posts

Safety Features

  • SmoothStart – On acceleration, power is applied to the drive tires in a controlled manner ensuring a smooth start each time.
  • HillSense – Allows the cart to be safely used on inclines and declines.  The cart will travel at the speed set by the user, not by the incline or decline.
  • AutoLock – An automatic parking brake locks the wheels when the throttle is not being applied.  This feature prevents the cart from rolling away from the user and also provides easy loading and unloading on inclines and declines.
  • Emergency Stop – The red E-Stop button allows the user to immediately stop the progress of the cart.
  • Four Wheel Design – All Overland Carts have at least four wheels to provide maximum stability.
  • Overload Fuse – There is a built in overload fuse that measures the inputs of the drive system in real time.  If the incline, load, or terrain begins to overwork the motor, a fuse will stop the cart and prevent any damage to the transaxle.
  • Throttle Controlled Braking – The braking is controlled by the throttle, simply let up on the throttle and the cart will slow down to the desired speed.  To brake is automatically applied.
  • Throttle Defaults to Zero MPH – If the throttle is released for any reason, the throttle will automatically return to the zero MPH position and the cart will safely coast to a stop.  AutoLock will then engage and the cart will be secure.
  • No open gears, belts, or hot components – The design of the cart keeps hands safe and prevents possible burns caused by hot engine components.
  • Tested Over Time – Overland Cart has been developing and building carts for 10 years.  We know our carts and have developed them to be as safe as possible.

Additional Features

  • Heavy Duty Dumping Hopper – Made in the USA from high density polyethylene.
  • Huge Capacity 20 cubic feet of space
  • Easy Start – Simply pull out the red E-stop button on the handle and the cart is immediately ready to drive.
  • Variable Speed Twist Throttle – Similar to a motorcycle throttle.  Very easy to use and to control the speed.
  • Enclosed Gear Box – Gears are enclosed for maximum safety and durability.  The transaxle is sealed for life and does not require any maintenance.
  • Manual Mode – Allows the cart to be operated without battery power.
  • Forward/Reverse – Direction can be selected from the toggle switch on the handlebar.  The cart travels the same speed in either direction.
  • Zero Turn Radius – The open differential allows the cart to be spun in a circle without power being applied, allowing for a true zero turn radius.
  • Near Silent Operation – The electric drive system is almost silent in its operation.
  • IMPROVED Battery Life – 6-8 hours of run time on a standard battery.
  • 110V Off Board Charger – Charge the cart with an extension cord or plug it right in the wall.
  • Battery Life Indicator – LED lights ensure you always know the current battery status
  • Powder Coated Frame – The chassis is welded and powder coated in house for lasting finish
  • Heavy Duty 13″ Drive Tires – Complete with a steel hub and heavy duty wheels.
  • 10″ Rear No Flat Swivel Casters – Foam filled heavy duty swivel wheels.
  • Rechargeable AGM Sealed Lead Acid Batteries – Absorbent Glass Mat (AGM) batteries are the most advanced batteries on the market and offer a spill-proof design.
  • Removable Rechargeable Battery Pack – Quickly swap batteries or remove the battery to charge it.
  • Patented Design – Our carts feature patented designs and components.  Ensuring top tier build quality and design on all genuine Overland Carts.

Overland Tire Options

  • 13″ Flat Free Dual Ag Tire – Features all the benefits of our pneumatic dual ag tire, but with the advantage of flat free construction. The semi-pneumatic tire features a thick molded outer core with a hollow center.  This tires does not require inflation and cannot be punctured. The width from the tires is measured as 33″ from tire edge to tire edge when mounted on the cart.

Overland Limited Warranty

  • 1 year – Powertrain, Electronics and Hopper
  • 3 year – Chassis
  • Limited to manufacturing defects
  • For the full warranty – Overland Limited Warranty




Looking for a quantity discount or more options?




  • Motor: 24 Volt DC Permanent Magnet
  • Drive: Single Reduction Open Differential Transaxle
  • Capacity Level Ground: 750 lbs (295 kgs)
  • Speed: 0 – 3.2 mph / (0 – 5.2 kph), Variable
  • Static/Park Brake: Electromechanical, Fail Safe
  • Battery: Removable & Rechargeable 24V 22AH Sealed Lead Acid
  • Charger: Off Board, 5 Amp
  • Real World Operating Time: 6 – 8 Hours
  • Unit Dimensions: 46″ H x 33″ W x 66″
  • Hopper Dimensions: 29.5″W x 32″H x 58″L
  • Weight: 195 pounds
  • Patent Pending
  • View the full specification sheet: 70036 Spec Sheet

Have a question about the item?


Guest
Annette Ellis
4 years 10 months ago

Are these able to go up and down short steep ramps?

Support
Jeremy Rupp
4 years 9 months ago

Hi Annette, Yes our carts are able to go up and down short steep ramps . Traction can sometimes be an issue due to the wheels slipping on the smooth steel surface but if the cart is pushed slightly it will be able to power its way into the bed of van or truck.

Guest
Tosha
2 years 7 months ago

Are these safe in Class II Division I Areas?

Support
Jeremy Rupp
2 years 5 months ago

Hi Tosha, Overland Carts to not have Class II Division 1 certifications.

Guest
Tosha
2 years 7 months ago

Is this rated for use in Class II Division I Areas?

Support
Jeremy Rupp
2 years 5 months ago

Hi Tosha, Overland Carts to not have Class II Division 1 certifications.

Guest
Lissa Browning
2 years 2 months ago

Can this go thru mud.

Support
Jeremy Rupp
2 years 2 months ago

Hi Lissa, yes the Overland Trash Hopper Wheelbarrow can handle light mud. The dual ag tires are excellent in all terrains. It really just depends on the load and the depth/liquidity of the mud. If you have further questions feel free to contact us: 877-447-2648 or via email: support@graniteind.com. Thank you!

Guest
Ronald Cifu
1 year 1 month ago

How is it going down hill with a full load 45-55 degree angle

Guest
John
11 months 13 days ago

can you send to New Zealand
