American Cart Multi Mover XT Hand Truck With Rear Wheels

Bigger and Better than our standard Multi-Mover. Features fold down rear wheels to add stability and make transporting items like tents or inflatables less of a hassle.

ESTIMATED SHIP DATE: Each Multi Mover XT is made in Archbold, OH.  Due to record setting demand and a critical component shortage, we are currently expecting orders to ship about 4 weeks after the order is placed.  Contact us for more information regarding stock levels and estimated ship dates: support@graniteind.com or 877-447-2648.

***Due to raw material cost skyrocketing we have been forced to add a 5% surcharge to all Granite/American Cart/Overland Cart products and 8% on scaffolding and staging productsThe surcharge will be calculated on the checkout screen.  We hope to clear this surcharge the moment component costs level off or begin to decrease. For more info, please review our blog post.***

$780.00

Free Shipping!
Clear

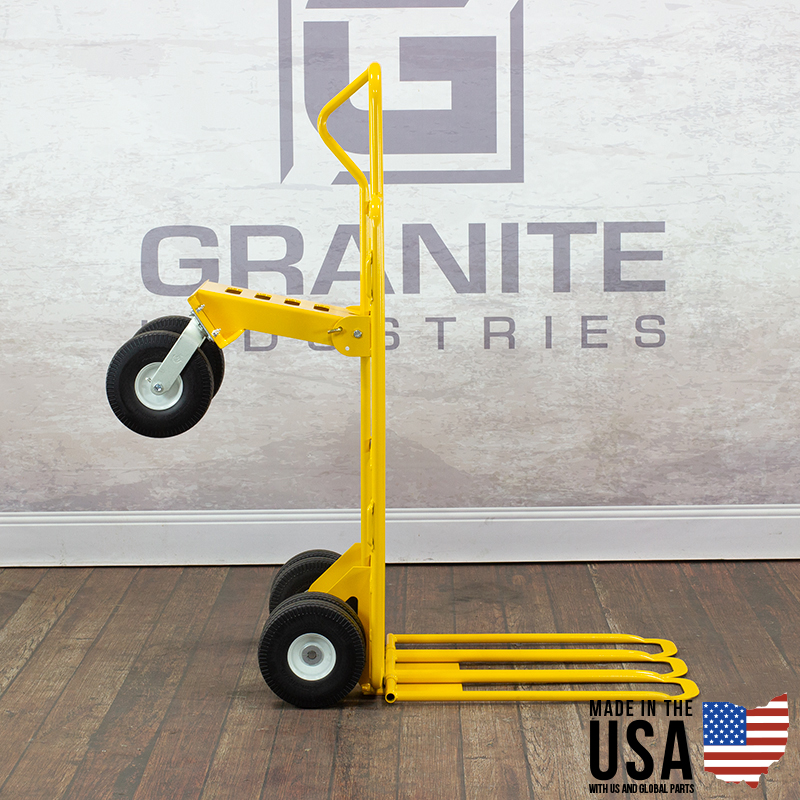

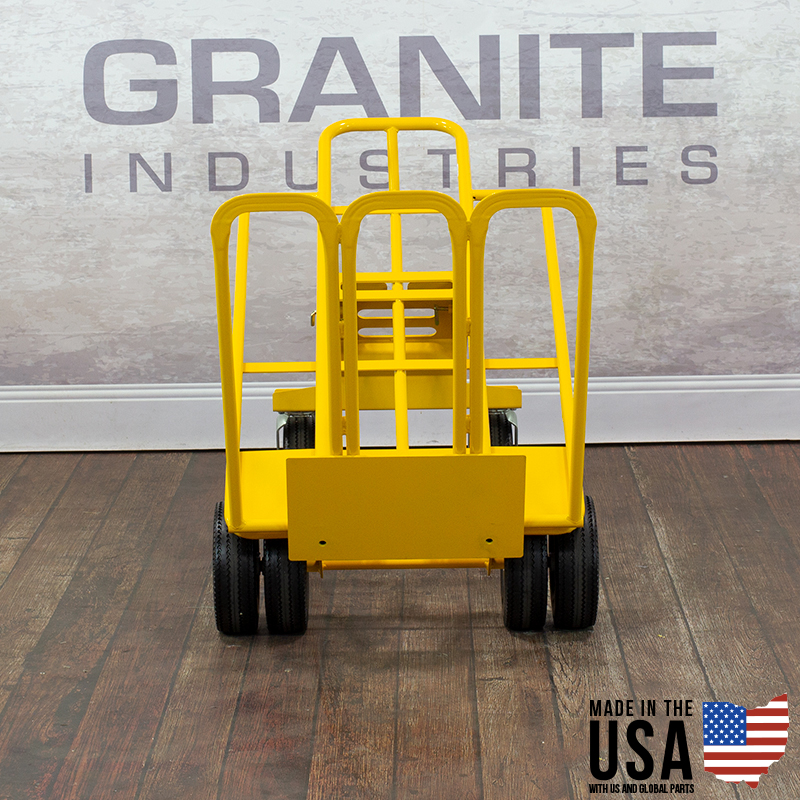

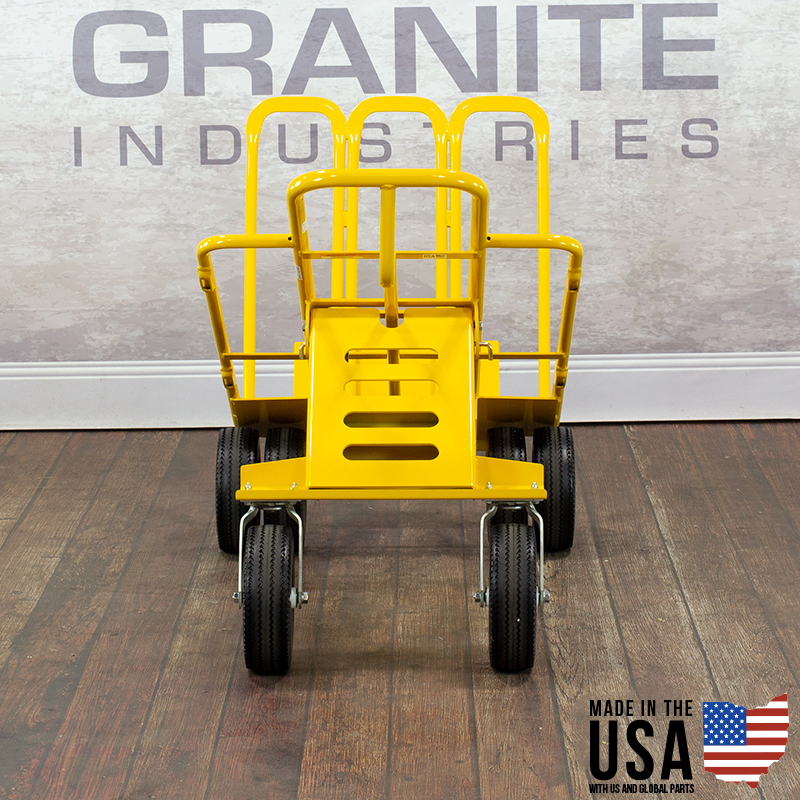

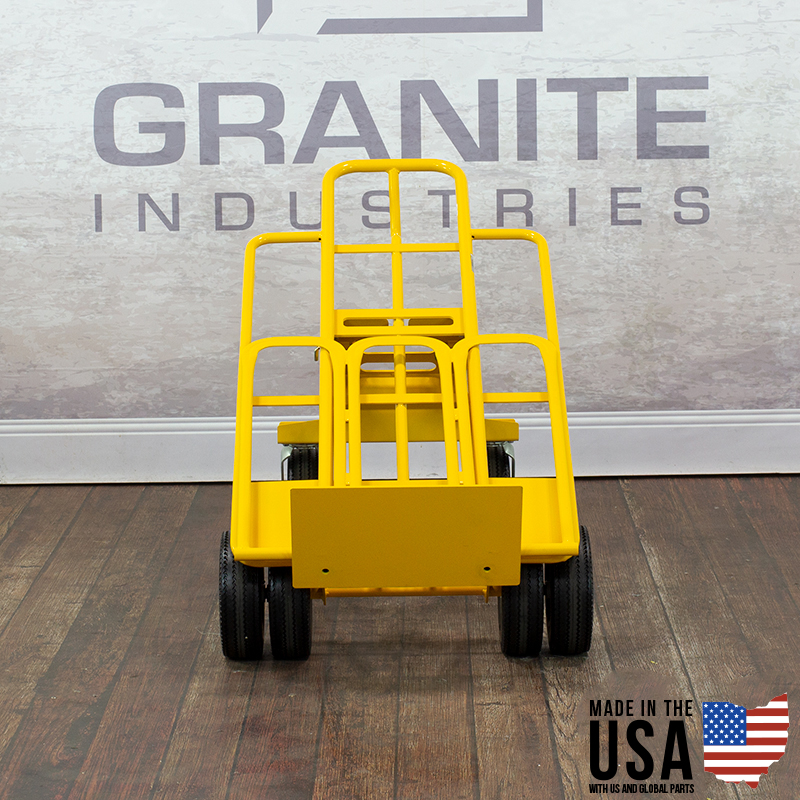

American Cart Multi Mover XT Hand Truck w/ Fold Down Rear Wheels

The Multi-Mover XT is your transport solution for large over sized loads. Bigger and Better than our standard Multi-Mover. Features fold down rear wheels to add stability and make transporting items like tents or inflatables less of a hassle.

The 10” No Flat Wheels provide you with a peace of mind that you never need to worry about flat tires, reducing down time. The extra set of wheels on the 67245 takes the load off your back and provides for easy rolling over uneven and rough terrain. New and improved, welded one piece frame makes the cart even more durable, extending the lifespan of your cart! The folding foot plate provides the ultimate support for oversized loads. Move awkward bulky items with confidence and ease.

View the full specification sheet:  67245 – Multi Mover XT with Rear Wheels Spec Sheet

Our Best Hand Trucks For Inflatables

  • Small Inflatables (up to 500 lb): Multi Mover Hand Truck With Rear Wheels – This hand truck is the perfect companion for handling smaller inflatables. (Static Load Capacity: 800 lb w/ rear bolt kit)
  • Medium Inflatables (up to 800 lb): Multi Mover XT or Mega Hauler – Inflatables that are larger in size are best handled by our Multi Mover XT with Rear Wheels or our Mega Hauler.  The Multi Mover XT features a 27″W x 31″L footplate that adds versatility for inflatable companies.  The XT has rear swivel wheels for easy steering when the cart is loaded.  For the best performance in grass and different terrains, take a look at our Mega Hauler. (Static Load Capacity: 1,200 lb)
  • Large Inflatables (800 lb+): Mega Hauler with Rear Wheels – The best all around cart for inflatables is our Mega Hauler with Rear Wheels.  Featuring a fully boxed frame and 3/4″ solid steel axle the cart is designed to take the abuse from customers. But don’t just take our word for it, here’s what one of our customers has to say: “We use your Mega Hauler Hand Trucks and absolutely love them!  They are completely indestructible.” There are three different versions: Mega Hauler, Mega Hauler w/ Rear Wheels and Mega Hauler Slim w/ Rear Wheels (only 25″ wide). (Static Load Capacity: 1,200 lb)
  • Big Herc Powered Hand Truck – Inflatables up to 950 lb: The Big Herc is designed from the ground up to move inflatables and bounce houses. It features a powerful 24V 950 watt direct drive motor (nearly 2.5X the power of our standard motor) along with a massive 39 Amp Hr Battery Pack.  The Big Herc excels on all terrains and inclines.  It is the ultimate hand truck for inflatable companies. (Static Load Capacity: 950 lb)

Multi Mover XT Features

  • One piece welded frame – Revised design adds strength and stability to the cart.
  • Dual front wheels – Four total front wheels provide improved load distribution.
  • Increased Cart Capacity – Handle up to 1,200 pounds.
  • Tire Capacity (1,800 lb) – Heavy duty tire construction ensures maximum load safety.  All flat free tires are rated at 300lb/ea for a total tire capacity of 1800 lb (300 lb x 6 tires).
  • 3/4″ axle – Industry leading axle diameter for maximum strength.
  • Oversize folding plate – Over eight times the area of a traditional hand truck plate. 31”D x 27”W.
  • Fold down rear wheels – Balances the load and increases capacity.
  • Flat free wheels – Steel hubs and heavy duty rubber tires provide exceptional performance.

Standard American Cart Features

  • Powder coated finish – Protects the steel and provides a lasting finish
  • Heavy-duty comes standard – American Carts are all built to heavy duty specs
  • D-Brackets – One piece design holds the axle in place and supports the load
  • Traditional P handle – Simple and easy to use for basic jobs
  • Made in the USA – Hand crafted at our Ohio plant.
  • Steel construction – Built from American sourced steel
  • Easy to operate – Designed to get work done with less muscle strain and simple operation.
  • Innovative design – Developed from customer inputs and suggestions
  • Ready to ship – in stock and ready to ship
  • Three Year Limited Warranty

The perfect cart for moving:

  • Inflatables
  • Tents
  • Portable Toilets
  • Propane Tanks
  • Roofing Materials
  • Tables & Chairs
  • Any Oversized Bulky Items

American Cart and Rack
American Cart and Rack is part of the Granite Industries family.  All carts are manufactured by Granite Industries in Archbold, Ohio.
The Granite Online Store is the official online store for all American Cart and Rack products.








Looking for a quantity discount or more options?




  • Dimensions: 30″W x 70″D x 38″H (on 4 wheels)
  • Outside Wheel Width: 30″
  • Folding Foot Plate: 31”D x 27”W
  • Foot Plate: 6”D x 18”W
  • Cart Capacity: 1,200 lbs.
  • Tire Capacity (1,800 lb) – All flat free tires are rated at 300lb/ea for a total tire capacity of 1800 lb (300 lb x 6 tires).
  • Weight: 134 lbs
  • Typically Ships: Freight; some assembly required
  • Carton Specs: 29”W x  16”D x  24”H
  • Carton Weight: 115 lbs.
  • View the full specification sheet:  67245 – Multi Mover XT with Rear Wheels Spec Sheet

Have a question about the item?


Guest
Neil Allgood - All About Bounce, LLC.
5 years 1 month ago

Slight modifications? – Is it possible to change the design for 13″ wheel, 1inch axle and removable fold-down nose?

Support
Jeremy Rupp
5 years 1 month ago

Hi Neil, It would not be possible to mod the cart in the way you specified. The wheels could be swapped out for another 10″ wheel with 3/4″ hub but would not be compatible with a bigger wheel. We do offer our Mega Hauler with 13″ Flotation Tires. It still has a 3/4″ axle which is not easily swappable, but might be more what you are looking for: https://store.graniteind.com/product/american-cart-mega-hauler-hand-truck-with-rear-folding-wheels/ – We also offer the ability to customize a cart but that comes with a extended lead time and added costs. For that option please email us at: support@graniteind.com

Guest
Natasha
3 years 5 months ago

Is it possible to order the frame portion of the fold down rear wheels? We have 8 of these and have had a couple of the rear wheel frames brake and are looking to replace.

Support
Jeremy Rupp
3 years 5 months ago

Hi Natasha, yes that is not an issue. Please send us an email: support@graniteind.com or via our contact us page: https://store.graniteind.com/contact-us with your order information or company name. We will check your order history and warranty information. Thanks!

Guest
Avery
2 years 2 months ago

Can I move a 6’ ft pool table

Support
Jeremy Rupp
2 years 2 months ago

Hi Avery, we have not specifically tested moving a pool table with the Multi Mover XT , but assuming the weight of the pool table is under the 1,000 pounds, and is properly strapped down, we do not see any issue with moving the pool table. Thanks!

Guest
Cristhian
1 year 11 months ago

Can this be use to climb interior steps carrying a 240 pound machine? Just one guy.

Support
Jeremy Rupp
1 year 11 months ago

Hi Cristhian. we do not recommend extensively using the Multi Mover XT on stairs. The Multi Mover XT has some of the strongest axles on any cart in the USA, but the axles are primarily designed for flat surfaces. For extended stair use we would recommend our Titan 2 Appliance Cart: https://store.graniteind.com/product/american-cart-titan-ii-appliance-hand-truck

Guest
Joshua Asbury
1 year 10 months ago

Where can I buy just the back wheel assembly for one of these

Support
Jeremy Rupp
1 year 10 months ago

Hi Joshua, yes we can definitely help you with that! If you send us an email: support@graniteind.com or give us a call: 877-447-2648, we can get a quote for you!

Guest
Tony
1 year 3 months ago

I am looking to move big rocks 300- 500 pounds on my farm, will this hand truck SKU 67245 be able to do that. From just looking at it,I think it should not be a problem,but I have learned in life never assume. So my question is there a better tool to move rocks, where tractors cannot go secondary to trees, and stuff not letting a tractor in.
Thanks Tony G

Support
Jeremy Rupp
6 months 26 days ago

Hi Tony! From a capacity standpoint, the Multi Mover XT should definitely be able to handle your request. Especially if an E-Strap is used to secure the rock in place. We do sell a landscape cart: https://store.graniteind.com/product/american-cart-landscape-cart that has an optional rock tray for the exact purpose of moving large rocks: https://store.graniteind.com/product/american-cart-rock-utility-tray. The Multi Mover XT would be more versatile for other uses.

Guest
Jeroy
5 months 19 days ago

Would this be ok for a 1000lb waters slide?

Guest
Ramon Teneyuque
3 months 12 days ago

Did they answer this? I would like to know the same



Download the spec sheet:  67245 – Multi Mover XT with Rear Wheels Spec Sheet
Download the instruction manual: 67245 – Multi Mover XT with Rear Wheels Instruction Manual
Download the American Cart Catalog: American Cart Catalog

Freight Shipping

  • If the order quantity allows for freight shipping, we will ship it via freight.
  • Optional lift gate service lowers the freight to ground level for easy unloading in residential areas
  • For more information, please review our freight policy: Granite’s Freight Shipping Policy

Additional information

Weight126 lbs
